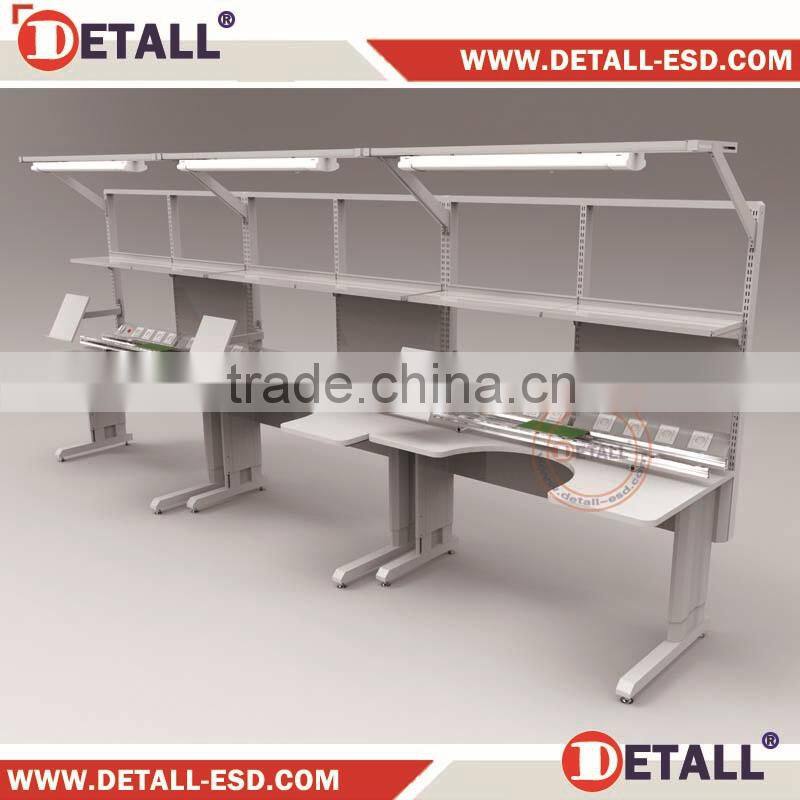

Durable ESD workshop workstation in China
About Detall:Detall is Durable ESD workshop workstation EXPERT. We serve and supply everyone from large multi-facility plants and government facilities to small Laboratory businesses.We Produce Static dissipative Tables, Chairs, Storage Rack ,Trolleys and other Furniture for Electronics manufacturing, Assembly, test & repair, Lab and Computer, automotive workshop and school furnitures.We also offer the Electric Adjustable workbench , and Customized, OEM and ODM service.
Specifications:
1. Table Top Board:Detall Durable ESD workshop workstation Adopt the Permanent ESD property laminate for both table top and bottom side. Fire-proof and durable.
Thickness 25mm and 50mm. Side sealing color : Yellow, Black and Gray. Standard size:Length: 1.2m,1.5m.1.8m ; width: 0.6m, 0.75m, 0.9m.
Various material of table top for different using. ESD Laminate, PVC Laminate, Beech wood, Steel, Stainless supports adopt the Cold rolled Steel with ESD powder coated. Highly Precise processed by Automatic Numerical control bending and punching machine.
2.Table Top Support: Durable ESD workshop workstation support adopt the Cold rolled Steel with ESD powder coated. Highly Precise processed by Automatic Numerical control bending and punching machine.
3.Other Optional Parts with different functions:
PARTS |
Workshop workstation Standard Specification | Marks | |
| ADJUSTABLE TABLE SUPPORT | Height adjustable 670-1120mm | Length 1800, 1500,1200mm; Deepth:600,750,900mm | Light duty:300kg, Medium Duty:500kg, L type :500kg, Heavy duty:600kg |
| FixedTABLE SUPPORT | Height 760mm | ||
| ANTI-STATIC TABLE TOP | Thickness 25mm or 50mm | Length:1200,1530,1830mm, Width:600,750,900mm | Steel covered, Stainless Covered, Durable top board Optional |
| ANTI-STATIC UPPER SHELF | ESD Laminate or Non-ESD board | Length:1200,1530,1830mm, Width:380mm | Weight loading:50kg |
| Steel Shelf | Also can be installed 15 degree slant | Length:750,900,1200mm. Width:300,400mm | weight loading: 30kg |
| Adjustable Steel shelf | Double Brackets optional | Length"750,900mm. Width:650mm | weight loading: 50kg |
| SUSPENSION RAIL For picking Bins | Also can be installed 15 degree slant | Length:750,900,1200mm. | weight loading: 30kg |
| Panel | Blue, Gray color optional | Length:750, 900, 1200mm. Width:240, 390mm | Placing Drawing paper |
| Perforated panel | Perforated Hole 9*9mm | Length"750, 900, 1200mm. Width:390mm | Using for Tool hooks |
| louvre blade panel | Blue, Gray color optional | Length"750, 900, 1200mm. Width:390mm | Using for Picking Bins |
| Light Brackets | slant LIGHT BRACKET , | Length 1800, 1500,1200mm; Deepth:380mm | LED light optional |
| right-angled Light Bracket | LED light optional | ||
| Simple Light Bracket | LED light optional | ||
| Drawer | Singler Layer | 350×450×125mm | weight loading: 15kg |
| Double Layer | 350×450×250mm | weight loading: 15kg | |
| Triple Layer | 350×450×375mm | weight loading: 15kg | |
| Drawer Cabinet | 350×450×500mm | weight loading: 15kg | |
| Advanced Triple Lyaer | 372×486×500mm | weight loading: 35kg | |
| PARTS OF ENERGY RAIL | Slant type, Vertical Type | length:750,900,1200,1500,1800mm | Europe, UK, Australia and America Standard |
Packing & Transportation of Durable ESD workshop workstation:
Carton box for standard size Parts.
Outside Export standard plywood packing for Air and Sea shipping.
Lead time: 7 working days for stock items, For higher quantities, add 1 day for every 20pcs workbench for Customized workbench 15-20 workding days.
Certificate:
We have a completed system of R&D, design, Produce, quality supervise,quality testing and customer service. ISO9001 Quality system, Every production steps checked by QC and passed with a stamped card. and the stamped report card shipped in packing box.
Test Standard
| Surface Static Dissipative Specification |
| PHYSICAL PROPERTIES |
| ESD performance properties meet or exceed IEC61340-5-1:2007, USA Military ANSI/ESD S20.20-2007 Standard, and China Military GJB3007-2009 Standard,and standard SJ/T10694-2006; Test by National MII department. |
| Surface Finish: Standard textured finish |
| Chemical Resistance: Resistant to common solvents such as Acetone; Trichloroethylene; Solder flux; Isopropyl Alcohol; Naphtha. |
| Bonding Procedure: Use standard contact or white glue adhesives application procedures for High Pressure Decorative Laminates. |
Maintenance: Clean Static Dissipative Laminate with good ammoniated detergent, rinsing with clear water. Do not use wax or other coatings since they may modify the electrical properties of the laminate. |
As a top professional Durable ESD workshop workstation system supplier, We Can offer you excellent design, reliable quality and completed service, We devote to offer the first class products and service in world wide.
The company has always been adhering to the honest and trustworthy, the concept of win-win cooperation. we Possess excellent electronic products reputation abroad and Strong foreign electronic products market, Almost all foreign customers are our repeat customers,so We are professional producers of electronic products about ESD Products,ESD Workbench, ESD chair, ESD Trolley,ESD cabinet......We hope your company joining.
Thanks very much from Samantha!
Look forward to your joining!
Choose Detall. Choose your professional personal EPA expert !
