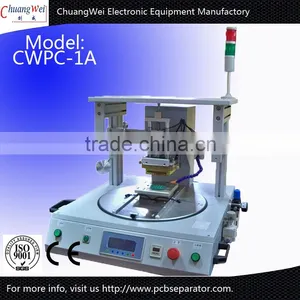

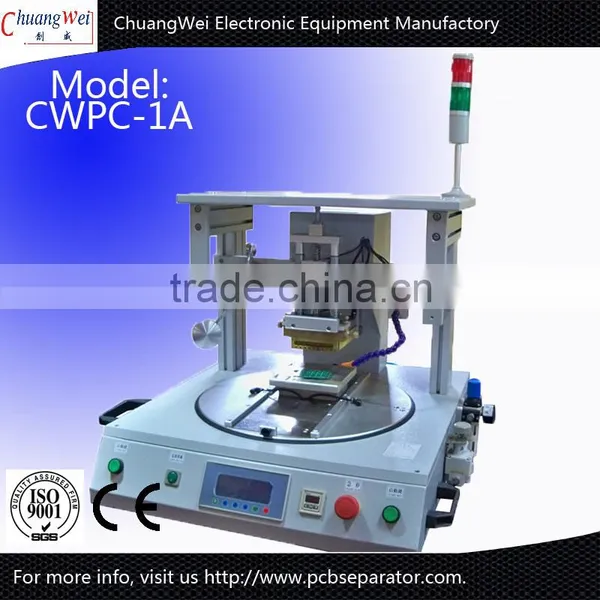

Heat Pulse Fpc Soldering Machine With Digital LCD Control
US$ 1 - 2,222
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Chuangwei fpc soldering machine
Model Number:
CWPC-1A
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen/hongkong
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Pcb Welder Bonding Fpc to PcbUS$ 1 - 2,222MOQ: 1 Set -
Heat Pluse Soldering Machine for Pcb / Fpc WeldingUS$ 1 - 20,000MOQ: 1 Set
-
Automatic PCB Soldering Machine Pulse Bonding TypeUS$ 1 - 20,000MOQ: 1 Set
-
Pulse Heat Hot Bar Soldering Machine With Flexible FixtureUS$ 1 - 20,000MOQ: 1 Set
-
Air Drived Knife to Cut Depanel Pcb Led StripNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
Chuangwei fpc soldering machine
Model Number
CWPC-1A
Voltage
110V/220V/380V/Customize
Power
3W
Frequency
50-60HZ
Welding Area
110mm X 150mm
Dimensions
500mm X 750mm X 910mm
Weight
95KG
Usage
soldering fpc
After-sales Service Provided
Engineers available to service machinery overseas
heat pulse fpc soldering machine with digital LCD control
Features for fpc soldering machine :
1. LCD display programmable pressure switch for precise force control.
2. Closed Loop PID temperature control with visible LCD display.
3. Each heating cycle is triggered by a real time pressure sensor.
4. Floating thermode ensures consistent pressure and heat transfer between thermode head and the parts to be joined.
5. Silicon rubber can be fitted in bonding Heat Seal Connectors between LCD and PCB.
6. Standard workpiece holder is mounted on a linear guideway and designed to allow for easy changeover and repeatable operation.
7. Parts registration is adjusted by micrometer and secured by vacuum lock. Optional CCD system for fine pitch component.
Specifications for fpc soldering machine
Model: CWHP - 1A soldering machine
soldering machine size: 500mm X 750mm X 910mm
Work Air Pressure: 0.5 - 0.7MPA
Working Area: 110mm X 150mm
Temperature setup: 0- 400℃
Tolerance of Temp.: +2℃
Time of pressing: 0 - 99s
Tolerance of Pressing: 0.05MPA
CE certificate :
