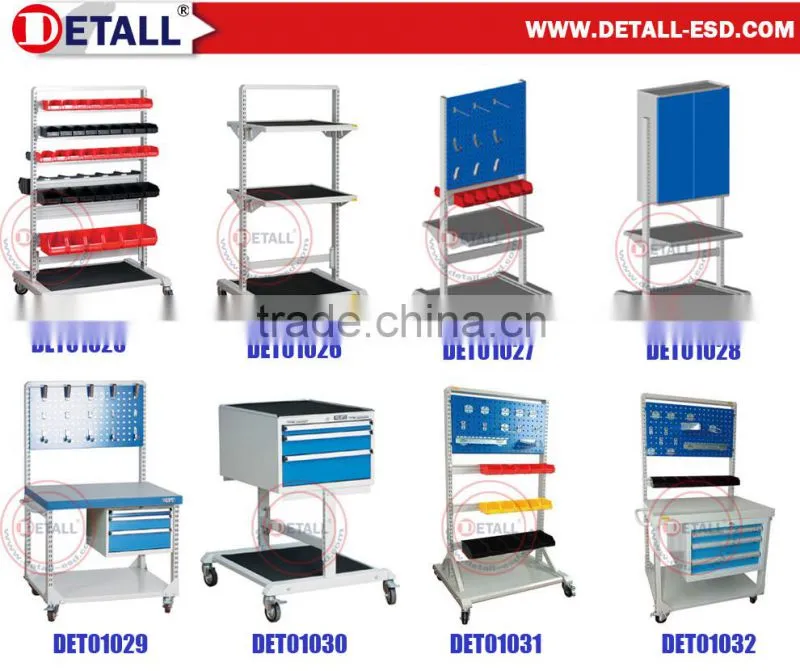

Help CenterMultifunctional ESD Modular Trolley With Shelf and Perforated Tool Panels
Related Products
-
Display Electronics Workbench With FIFO ShelfUS$ 259 - 880MOQ: 1 Set -
FIFO Shelf for Electronics UseNegotiableMOQ: 1 Set
-
Antistatic Office ChairNegotiableMOQ: 10 Pieces
-
Moisture Proof ESD Dry Cabinet of High QualityNegotiableMOQ: 1 Set
-
Detall High Quality ESD Dry CabinetNegotiableMOQ: 1 Set
Specifications
ESD tool trolley1.Professional & Experienced Teams of ESD system Design, Sales, Service.
About Detall
Detall is a Professional ESD cart manufacturer . We serve and supply everyone from large multi-facility plants and government facilities to small Laboratory businesses.
We Produce advanced Static dissipative/ Anti-static Workbench ,Tables, Chairs, Storage Rack , ESD cart and other Furniture for Electronics manufacturing, Assembly, test & repair, Lab and Computer, automotive workshop and school
We also offer the Electric height adjustable ESD cart
We also offer the Customized, OEM and ODM ESD cart
Why Detall
1. Professional ESD cart manufacturer at Best prices and customer service
2. Detall ESD cart Adopt the Modular design, Stable structure, durable, strong and easy assembly. Various of functional parts are optional by customer’s need.
3. Drop-shipped direct from the factory at a discount.
4. Detall ESD cart use material of Cold rolled Steel with ESD powder coated,
Detail Speicifications:
| PARTS | ESD cart Standard Specification | Marks | |
| ANTI-STATIC SHELF | Thickness 25mm or 50mm | Length:500.600.mm, Width:450mm | Steel covered, Stainless Covered, Durable top board Optional |
| Steel Shelf | Also can be installed 15 degree slant | Length:750,900,1200mm. Width:300,400mm | weight loading: 30kg |
| Adjustable Steel shelf | Double Brackets optional | Length"750,900mm. Width:650mm | weight loading: 50kg |
| SUSPENSION RAIL For picking Bins | Also can be installed 15 degree slant | Length:750,900,1200mm. | weight loading: 30kg |
| Panel | Blue, Gray color optional | Length:750, 900, 1200mm. Width:240, 390mm | Placing Drawing paper |
| Perforated panel | Perforated Hole 9*9mm | Length"750, 900, 1200mm. Width:390mm | Using for Tool hooks |
| louvre blade panel | Blue, Gray color optional | Length"750, 900, 1200mm. Width:390mm | Using for Picking Bins |
| Drawer | Singler Layer | 350×450×125mm | weight loading: 15kg |
| Double Layer | 350×450×250mm | weight loading: 15kg | |
| Triple Layer | 350×450×375mm | weight loading: 15kg | |
| Drawer Cabinet | 350×450×500mm | weight loading: 15kg | |
| Advanced Triple Lyaer | 372×486×500mm | weight loading: 35kg | |
| PARTS OF ENERGY RAIL | Slant type, Vertical Type | length:750,900,1200,1500,1800mm | Europe, UK, Australia and America Standard |
Customized Products
We have great teams that professional trained and experienced to Develop, design, produce and service the customer. We can Highly Customized for Special Size, Configuration and special functional ESD TROLLEY for clients.

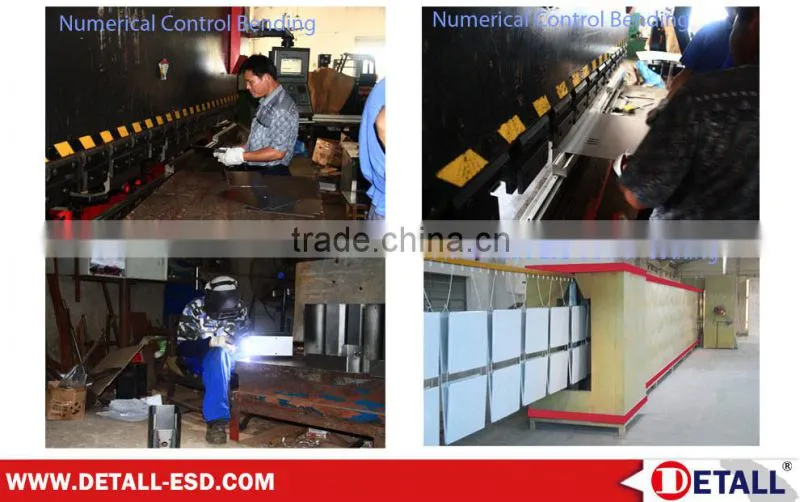

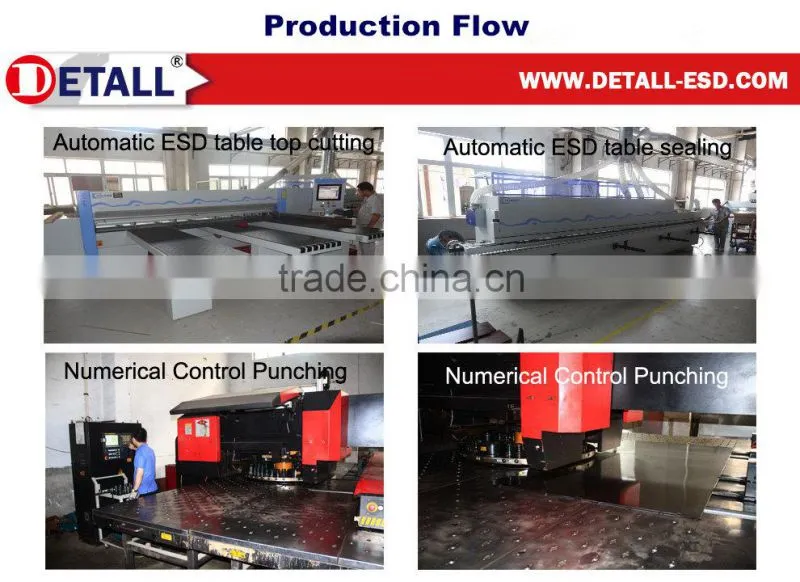

Production Flow
We have the advanced Automatic Numerical control bending and punching machine, and Automatic Spray Coating Line. Products have high accuracy processing such as cutting, punching and bending.
ESD surface coating adhesion force is more than 2H, permanent ESD property

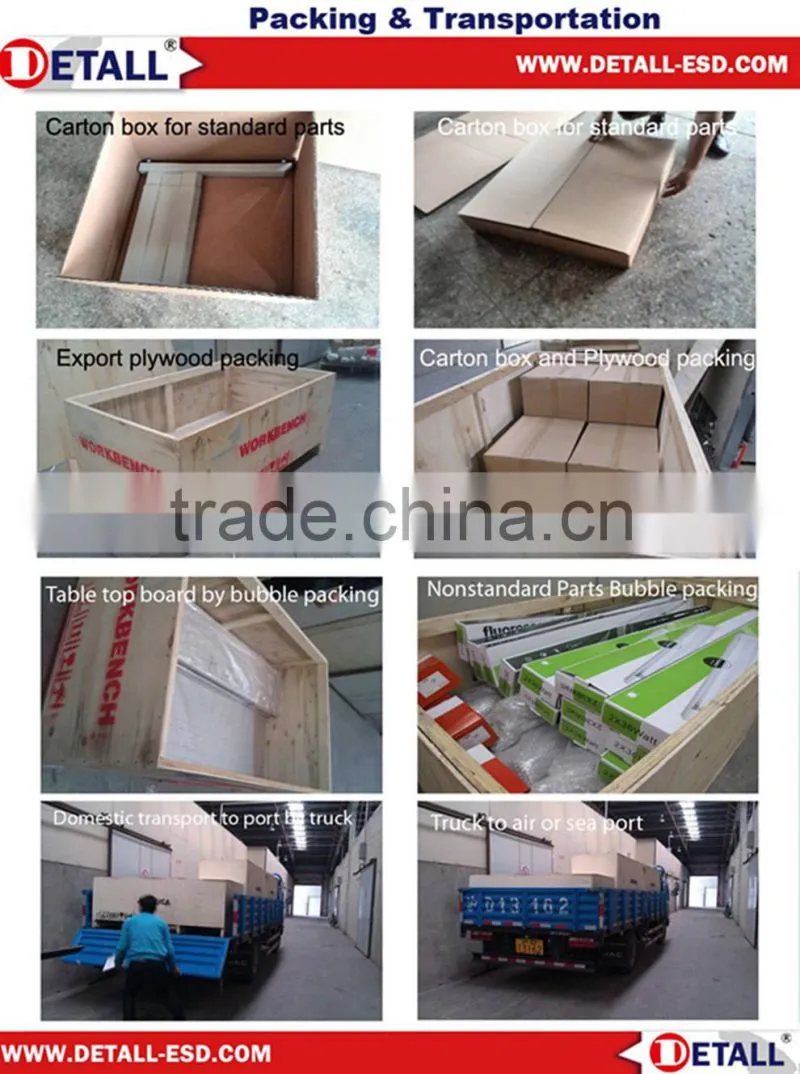

Packing & Transportation
Carton box for standard size Parts.
Outside Export standard plywood packing for Air and Sea shipping.
Lead time: 7 working days for stock items, For higher quantities, add 1 day for every 20pcs ESD workbenches for Customized workbench 15-20 workding days.
Certificate
We have a completed system of R&D, design, Produce, quality supervise,quality testing and customer service.
ISO9001 Quality system, Every production steps checked by QC and passed with a stamped card. and the stamped report card shipped in packing box.
Test Standard and Test reading
| Surface Static Dissipative Specification |
| PHYSICAL PROPERTIES |
| ESD performance properties meet or exceed IEC61340-5-1:2007, USA Military ANSI/ESD S20.20-2007 Standard, and China Military GJB3007-2009 Standard,and standard SJ/T10694-2006; Test by National MII department. |
| Surface Finish: Standard textured finish |
| Chemical Resistance: Resistant to common solvents such as Acetone; Trichloroethylene; Solder flux; Isopropyl Alcohol; Naphtha. |
| Bonding Procedure: Use standard contact or white glue adhesives application procedures for High Pressure Decorative Laminates. |
| Maintenance: Clean Static Dissipative Laminate with good ammoniated detergent, rinsing with clear water. Do not use wax or other coatings since they may modify the electrical properties of the laminate. |
| ELECTRICAL PROPERTIES | ||
| Test | Relative Humidity | Electrical Results |
| Point to Point Resistance | 60% - 40% | 106 to 1 x 107 ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10% | 108 to 109ohms | |
| Point to Ground Resistance | 60% - 40% | 106 to 1 x 107ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10%* | 108 to 109 ohms | |
| Volume Resistance | 60% - 30% | 107 to 1 x 108 ohms |
| 30% - 10% | 108 to 109 ohms | |
| StaticDecay | 50% | 0.01 sec |
| 10% | 0.02 sec | |
| 1 Per EOS/ESD - S 4.1 | ||
| 2 Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds) | ||
| 3 FTMS 101C, Method 4046 | ||
Q&A
1. How to order the Customized ESD trolley ?
If you have a drawing of your wanted ESD trolley , You can show the drawing to our salesman, then will discuss with our engineer about the produce process, get the Detailed Quotation list.
If you do not have the drawing, pleas tell our salesman what the ESD trolley size, functions, configurations and special needs, Our sales man will make a Drawing with our engineer. We will give you the quotation list when you confirm the drawing and details.
2. What Detall can help me for my EPA system ?
Detall is an experienced expert of ESD system solution supplier and custom made ESD workbench manufacturer . We are professional to establish the ESD grounding system. ESD access Monitoring system, ESD furniture System, ESD human body system and other ESD equipment and tools. We can help you establish and reform your EAP system.
As a top professional ESD system supplier, We Can offer you excellent design, reliable quality and completed service, We devote to offer the first class products and service in world wide.
Choose Detall. Choose your professional personal EPA expert !!!
