Help CenterAISG Connector With Cable
Related Products
Specifications
Aisg connectors are available with 3-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Aisg connector,The connectors of series FS1 with cable are available with 3-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.
Product Ordering
FS1 - 6 T J - 8
1 2 3 4 5
1.Name FS1 type connector
2.Number of contacts 3-8 pcs
3.Connector type: T:Plug; Z:receptacle
4.Contacts type: J:pin; K:socket
5.Meet cable diameter: 6-9 mm
Technical characteristics
Temperature |
Relative humidity |
Vibration |
Shock |
Endurance |
-55°C~ +85°C |
90-95% at 40 Deg C |
10~1000Hz 196m/s² |
490m/s² |
1000 cycles |
Contact |
Current |
Voltage |
Contacts resistance |
1.5mm |
7 A |
60-220VAC |
≤3mΩ |
connector,The connectors of series FS1 with cable are available with 3-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.
Product Ordering
FS1 - 6 T J - 8
1 2 3 4 5
1.Name FS1 type connector
2.Number of contacts 3-8 pcs
3.Connector type: T:Plug; Z:receptacle
4.Contacts type: J:pin; K:socket
5.Meet cable diameter: 6-9 mm
Technical characteristics
Temperature |
Relative humidity |
Vibration |
Shock |
Endurance |
-55°C~ +85°C |
90-95% at 40 Deg C |
10~1000Hz 196m/s² |
490m/s² |
1000 cycles |
Contact |
Current |
Voltage |
Contacts resistance |
1.5mm |
7 A |
60-220VAC |
≤3mΩ |

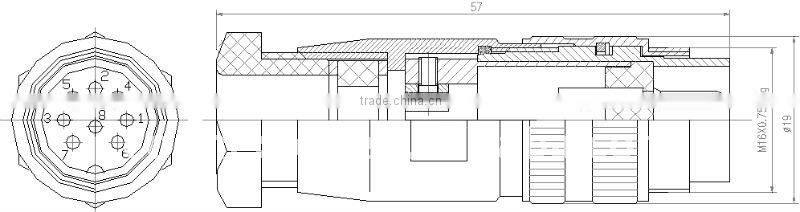

The size of male plug FS1-8TJ:

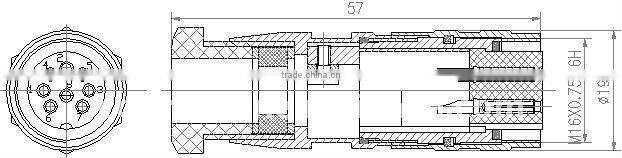

The size of female plug:FS1-8TK:

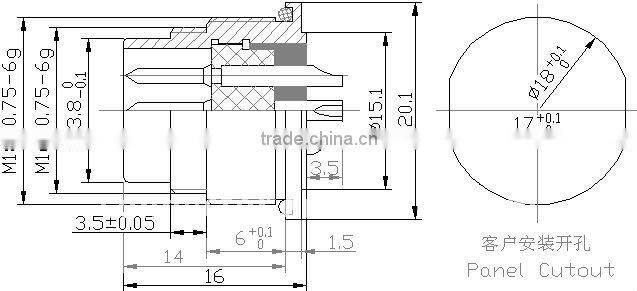

The size of circular female receptacle:FS1-8Z1K:

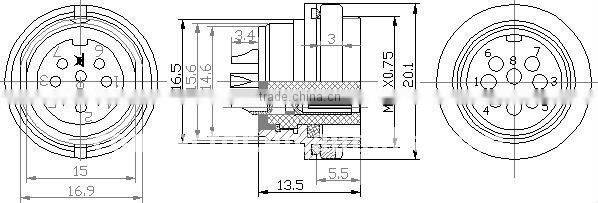

The size of circular male receptacle:FS1-8Z1J:
The size of circular male receptacle:FS1-8Z1JA:
