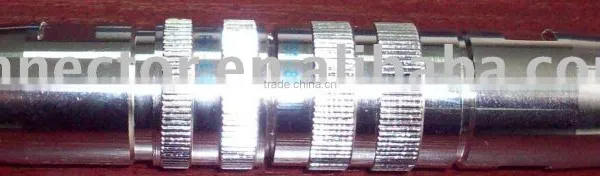

water connector

Specifications

water connector,DIN45326,AISG connector 8 pin , screw coupling,can interchange with Amphenol C 091 A /B/D,Binder's 423 series

Water connector,aisg connector,water proof connectors,DIN45326 connectors,AISG connector 6 pin ,The connectors of series FS1 are available with 3-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.It is same as lumber 0332-1,0306-1,0307-1,and binder 680series,423 series.

Product Ordering

              FS1 -  8  T   J -  8

                1       2  3    4   5

  1.Name    FS1 type connector

2.Number of contacts :8 pins

3.Connector type: T:Plug; Z:receptacle

4.Contacts type: J:pin; K:socket

5.Meet cable diameter: 6-9 mm

 Technical characteristics

Temperature	Relative humidity	Vibration	Shock	Endurance
-55°C~ +85°C	90-95% at 40 Deg C	10~1000Hz 196m/s²	490m/s²	1000 cycles



Contact	Current	Voltage	Contacts resistance
1.5mm	7 A	60-220VAC	≤3mΩ
