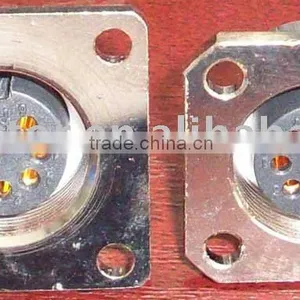

Help CenterAISG Square Receptacle
Related Products
Specifications
AISG square receptacle can with 3-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder's 423 series.AISG square receptacle FS1 are available with 5-8 contacts, screw coupling,can interchange with Amphenol C 091 A /B/D & Binder 423 series.Meet DIN45326 standard. All connectors of series FS1 are EMI protected and IP 67 proof. Main applications for FS1 connectors are industrial controls, data processing, instrumentation, medical devices, telecommunication network and equipment, plus outdoor and marine application.Cable connector main applications for 3G, Tower Mounted Amplifier, Base Stations.It is same as Lumberg 0317-1 and 0307-1,same as binder's 423/680 series.
Product Ordering
FS1 - 6 T J - 8
1 2 3 4 5
1.Name FS1 type connector
2.Number of contacts 3,4,5,6,7,8 pcs
3.Connector type: T:Plug; Z1:circular receptacle,Z2:Hexangular receptacle,Z3:square receptacle.
4.Contacts type: J:pin; K:socket
5.Meet cable diameter: 6-9 mm
Technical characteristics
Temperature |
Relative humidity |
Vibration |
Shock |
Endurance |
-55°C~ +85°C |
90-95% at 40 Deg C |
10~1000Hz 196m/s² |
490m/s² |
1000 cycles |
Contact |
Current |
Voltage |
Contacts resistance |
1.5mm |
7 A |
60-220VAC |
≤3mΩ |
