MIL-C-5015 series connectors

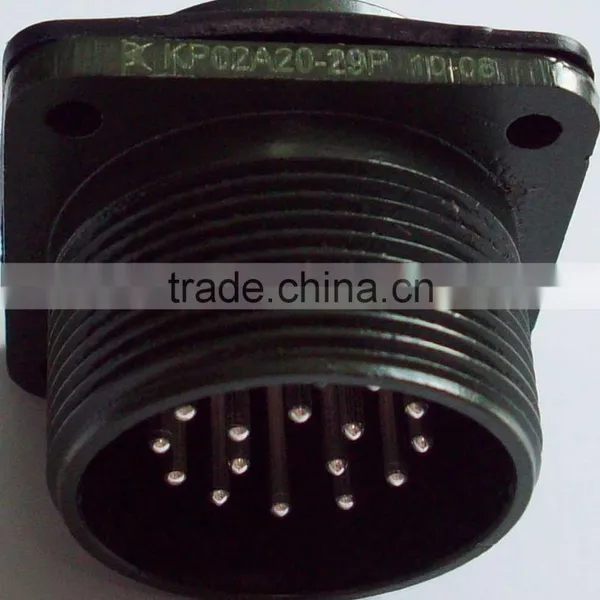

MIL-C-5015 series connectors,MS3106A20-29S,MS3102A20-29P,MS series circular connectors are useed extensively in line connections between electrical equipment,various instruments and meters.These connectors meet the standard MIL-C-5015,have the features of light weight,aluminium alloy material,wide range,Thread coupling,good sealing performance,resistance against corrosion,high conductivity and high dielectric strength.It's the ideal product to replace the MIL-C-5015 series .They are interchangeable with the same category each other.
Product Ordering
              MS  3106  A  20  -  29   S   W
                1   2   3     4      5   6   7
   1. Name of series:MS series connectors
  2. Type:  3100: Square flange receptacle with cable shell; 3101:circular flange receptacle with cable shell;3102:Square
flange receptacle; 3106:Plug;3108:angled plug.
     3. Degree: A:Entire,B:Can be released
     4.Shell type:10S,12S,14S,16S,18,20,22,24,28,32,36
     5.Contacts position type
     6.Type of contacts:P:Pin,S:Socket
     7.Key position: W,X,Y,Z, Without note:Normal position

Technical characteristics
Temperature Endurance Environment Voltage proof Insulation resistance
-55°C~+125°C 500 cycles  Normal 2000V ≥3000MΩ

Contact
type Solder termination Ø  Current Voltage Contact resistance
16# Ø2mm 13A 500V ≤1.1mΩ
12# Ø3mm 23A  ≤0.6mΩ
8# Ø5.2mm 46A  ≤0.2mΩ
4# Ø8.5mm 80A  ≤0.1mΩ
