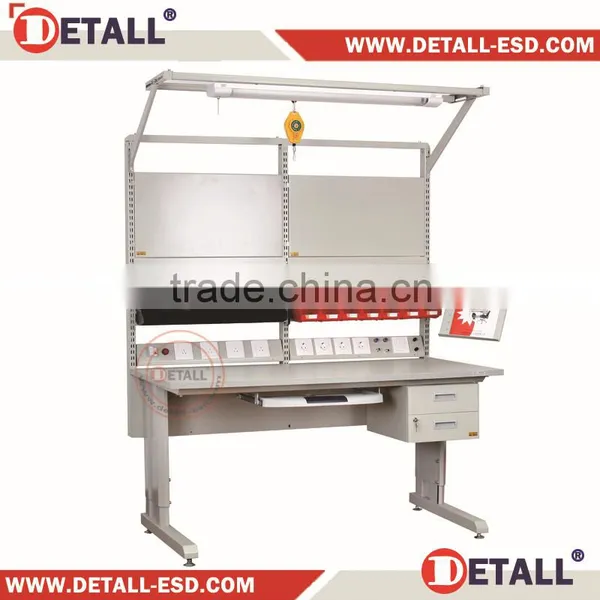

More details of Electronic ESD work bench with size customized service
Our workbench are Modular designed:
How a modular designed workbench help you ?
1. Hundreds of configuration can be assembled to fit the customer's different needs.
2. Functional spare parts can be choosed by different use.
3. Economic options to adding different parts for future need.
4. Knock down sturcture with small packing volume for cheap and safe shipping.
| PARTS | specifications & size | Marks | |
| Adjustable table base frame | Height adjustable 670-1120mm | Length 1800, 1500,1200mm; Deepth:600,750,900mm | Light duty:300kg, Medium Duty:500kg, L type :500kg, Heavy duty:600kg |
| Fixed table base frame | Height 760mm | ||
| Table Top | Thickness 25mm or 50mm | Length:1200,1530,1830mm, Width:600,750,900mm | ESD Table top. Steel covered, Stainless Covered, beech wood, Durable top board Optional |
| Uper Shelf | weight loading: 50kg | Length:1200,1530,1830mm, Width:300 or 380mm | Steel , laminate or wood material |
| Adjustable Steel Shelf | weight loading: 50kg | Length"750,900mm. Width:650mm | steel |
| Bins Rail | weight loading: 30kg | Length:750,900,1200mm | can be installed 15 degree slant |
| back Panel | Length"750, 900, 1200mm. Width:390mm | Placing Drawing paper | |
| peg panel | Length"750, 900, 1200mm. Width:390mm | Using for Tool hooks | |
| louvre blade panel | Length"750, 900, 1200mm. Width:390mm | Using for Picking Bins | |
| Light Brackets | LED light optional | Length 1800, 1500,1200mm; Deepth:380mm | slant LIGHT BRACKET |
| Drawer | weight loading: 15kg | 350×450×250mm, 350×450×375mm, 350×450×500mm | Double Layer, Triple Layer and drawer cabinet are avaiable |
| Energy Rail | 110V. 220V. 400V. | length:750,900,1200,1500,1800mm | Europe, UK, Australia, America and all kinds of Standard scokets |
Surface Static Dissipative Specification
Physical Properties
ESD performance properties meet or exceed IEC61340-5-1:2007, USA Military ANSI/ESD S20.20-2007 Standard, and China Military GJB3007-2009 Standard,and standard SJ/T10694-2006; Test by National MII department.
Surface Finish: Standard textured finish
Chemical Resistance: Resistant to common solvents such as Acetone; Trichloroethylene; Solder flux; Isopropyl Alcohol; Naphtha.
Bonding Procedure: Use standard contact or white glue adhesives application procedures for High Pressure Decorative Laminates.
Maintenance: Clean Static Dissipative Laminate with good ammoniated detergent, rinsing with clear water. Do not use wax or other coatings since they may modify the electrical properties of the laminate.
| Electrical Properties of the ESD workbench | ||
| Test | Relative Humidity | Electrical Results |
| Point to point resistance | 60%-40% | 106 to 1 x 107 ohms |
| 40%-20% | 107 to 1 x 108 ohms | |
| 20%-10% | 108 to 1 x 109 ohms | |
| Point to point resistance | 60%-40% | 106 to 1 x 107 ohms |
| 40%-20% | 107 to 1 x 108 ohms | |
| 20%-10% | 108 to 1 x 109 ohms | |
| Volume Resistance | 60%-30% | 107 to 1 x 108 ohms |
| 30%-10% | 108 to 1 x 109 ohms | |
| Static Decay | 50% | 0.01sec |
| 10% | 0.02sec | |
1. Per EOS/ESD - S 4.1 | ||
• Our stainless steel workbench follow European Standards: CE, ISO9001, EU EN61340 Anti-static, EU EN60598 Safety Standards.
• ESD workbench has all working surface resistance 106 -109 Ohm , performance are CE certificated by international ESD Standard IEC-61340-5-2007.
All our workbench has passed and CE certificated by the
EN ISO 12100:2010 Safety of machinery - General principles for design.
EN 60204-1:2006+A1:2009+AC:2010 Safety of machinery - Electrical Equipment of Machines
IEC-61340-5-2007 Protection of electronic devices from electrostatic phenomena (for ESD workbench Only)
• Detall products are test and certificated by the BV (BUREAU VERITAS) before the shipment. All Detall products accept the third party quality checking before the shipment.
We are the best you can find in China.
As the leading manufacture in China. Detall Produce All kinds of workbench for wide application for various industries
We has been providing efficient and organised workspace and storage solutions to thousands of customer in world-wide. We process only the highest quality products.
1. China's Famous Brand & Qualified manufacturer.
We produced the industrial furniture since 2005. Focus on all kinds of workbenches and ESD protection area for electronics production.
We have 15 years experienced workbench production engineer, 12 years experienced ESD senior engineer. Our company is the one and only who have the full-time senior ESD engineer.
2. You can get the TOP QUALITY products from Detall
We believe the top quality make the praiseful & famous brand, The brand is the key for wordwide business.
* We guarantee the best material. No fake and used material. No cheating on materials.
* We guarantee the workbench performance (ESD performance, loading capacity, specification)
* We guarantee the workbences are well packed for safety transportation.
3. You can get the COMPETITIVE PRICE from Detall.
Price is a another key point in business competition. But We believe you are always looking for a reliable , affordable and highest cost-effective products. Not the cheapest one without quality requirments.
* As a direct manufacturer, Detall offer you the most competitive direct price.
* You will find our price is highest cost-effective with the top quality
* Our workbench offer a affordable price that help you save 50% cost from another brands.
* The interchangeable modular parts can help you save the future cost for adding more functional parts to instead of buying another workbench.
4. You can get the SUPER GUARANTEE from Detall.
We offer the SUPER GUARANTEE for our products that you can't get from any supplier in China.
* Usually all other supplier offer a 1 year warranty period, But we offer the 5 years warranty period.
* The extended 5 years warranty and lifetime warranty is available. you can only need to comment on our website or send our products layout photoes on your side.
* We guarantee your 100% satisfaction on products quality issue.
5. You can get the BEST SERVICE from Detall.
* We offer the 12hours * 7days service online.
* We reply you within 4 hours, We quote you within 8 hours. We design for you within 8 hours.
* the professional sales and engineers are able to give you the best advice and design. that's free of charges.
The Safest Transportation
• We Packing the electronic workbench in standard export wooden case Air and Sea shipping.
Choose electronic workbench from Detall. Choose your Lab Expert !!!
Contact us to know our more Warranty, Discount, Details...
See more similar products, Click "Here" Now!
Choose Detall workbench . Choose your professional personal EPA expert !!!
Any problem feel free to contact Sophie(sales155(@)),I will be glad to help.
