Latest Xprog-M V5.45 ECU Programmer Newest Xprogm
US$ 1 - 155
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
SK
Model Number:
Xprogm
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
DG-DPA5-9 OBDII Volvo Adapter for DPA 5 Dearborn Protocol Adapter 7 Commercial Vehicle Diagnostic ToolUS$ 1 - 27MOQ: 1 Set -
NEC Adapter for Data Smart3+ and DSP3+US$ 1 - 170MOQ: 1 Piece
-
CN900 Master+ ID 46 DECODER BOXUS$ 1 - 990MOQ: 1 Set
-
NDM457 AdapterUS$ 1 - 220MOQ: 1 Piece
-
Car Key Master CKM-100 PC Set With Unlimited TokensNegotiableMOQ: 1 Set
Place of Origin
Guangdong, China
Brand Name
SK
Model Number
Xprogm
Specifications
Latest Xprog-M V5.45 ECU Programmer Newest XprogmWidely auto accessories range
high quality & fast shipping
wholesales
Latest Version Xprog-M V5.45 ECU Programmer Newest Xprogm
Supported Language: English Only
Attention for Xprog-Box 5.45
1. Shut off the computer antivirus program . if not , it will make damage on the software
2. Turn Off the internet. If not , it will damage the hardware ,and this kind of damage doesen't within warranty.
3. Delete all the previous Xprog-M softwares,make sure that your pc is only installed our software V5.45. Our xprog-box hardware cannot work on any other Xprog-M softwares.otherwise, the hardware will be burned or damaged. And this kind of damage doesen't within warranty too!
4. Never try to UPDATE ! Otherwise,the hardware will be burned or damaged . And this kind of damage doesen't within warranty too!
5. We will not refund or exchange or repair it if you do not listen to those advice above. It means that you accept those conditions as long as you place order of it on our website.
Introduction
The XPROG-box project is a continuation of the project XPROG and now supports more than 450 units (serial EEPROM's, Microcontrollers (MCU), Electronics Control Units (ECU), DashBoards, Immobilizers, Calculators and others).
XPROG-box hardware(Aluminium enclosure) .
CD with XPROG-box software (V5.4.5)
Basic software authorizations and programming adapters set.
USB Cable.
Product Code Description
AUTH-0001 Motorola HC05 family authorization (allows to read/write EEPROM)
AUTH-0002 Motorola HC08 family authorization (allows to read/write EEPROM)
AUTH-0003 Motorola HC11 family authorization (allows to read/write EEPROM)
AUTH-0004 Motorola HC12, 9S12 family authorization (allows to read/write EEPROM and flash memory)
AUTH-0005 Texas Instruments TMS370/TMS374 family authorization (allows to read/write EEPROM)
AUTH-0006 Motorola HC05Bxx and HC05Xxx family bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0007 ST M35080 authorization. Read/Write/Erase device to delivery state.
AUTH-0008 BMW EWS3 authorization
AUTH-0009 ATmega family authorization (allows to read/write EEPROM and flash memory)
AUTH-0010 MB ZGS001 authorization
AUTH-0011 Motorola HC11EA9/E9 bypass security authorization (allows to bypass security bit and read EEPROM and RAM memory)
AUTH-0012 National CR16 authorization (allows to read/write EEPROM memory)
AUTH-0014 ST7, ST10 family authorization (allows to read/write internal flash)
AUTH-0015 MPC5xx authorization (depending on device program automatically detects MPC5xx, M95xxx device type, flash, external flash and configuration memory size)
AUTH-0018 Motorola HC12, HC912, MC9S12, MC9S12X bypass security authorization (allows to read/write secured EEPROM and flash memory)
AUTH-0020 ARM (Micronas, ...) Family authorization (allows to read/write internal flash and external serial EEPROM)
AUTH-0021 ARM (Micronas, ...) Family bypass security authorization (allows to read/write secured and non-secured internal flash and external serial EEPROM, view/change mileage,chassis number (VIN), serial number and PIN code).
AUTH-0022
XPROG hardware registration
ADAPTERS
Product Code Description
ADP-0001 TMS370 PLCC28 programming adapter
ADP-0002 TMS370 PLCC44 programming adapter
ADP-0003 TMS370 PLCC68 programming adapter
ADP-0004 Motorola HC05B/X PLCC52 programming adapter
ADP-0005 Motorola HC05B/X QFP64 programming adapter
ADP-0006 ST M35080 in-circuit programming adapter
ADP-0008 TMS374 family in-circuit programming adapter
ADP-0009 MC68HC05V12 programming adapter
ADP-0010 TMS374 on-board programming adapter
ADP-0011 HC11EA9/E9 programming adapter
ADP-0017 HC(S)12 BDM / ARM Micronas in-circuit programming/bypass security adapter
Rev.C+
Processor: INTEL Pentium 60MHz or faster (depends on operating system)
Memory (RAM): 64MB (depends on operating system)
Hard drive: 20MB free space
Communication: One free physical COM or USB port
Operating system: Microsoft Windows NT/ME/2000/XP/VISTA/WIN7
FAQ: Frequently Asked Questions

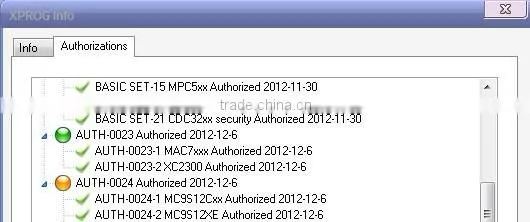

Q: What's the difference between xprog-m V5.45 and xprog-m V5.3?
A: V5.45 xprog-m added more function, such as:
AUTH-0023
AUTH-0023-1 MAC7xxx
AUTH-0023-2 XC23xx 65
AUTH-0024-1 MC9S12Cxx
AUTH-0024-2 MC9S12XE
AUTH-0024-4 MC9S12HA/HY

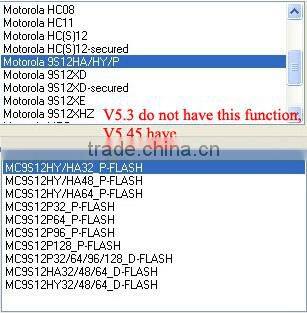

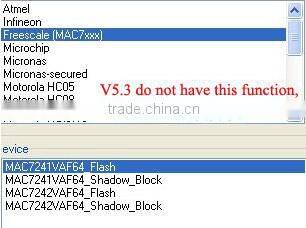

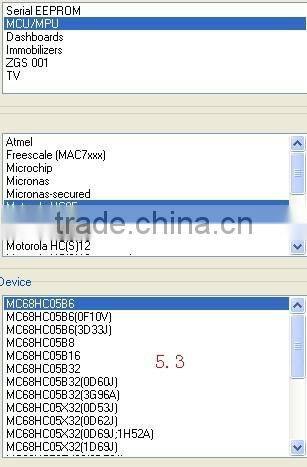

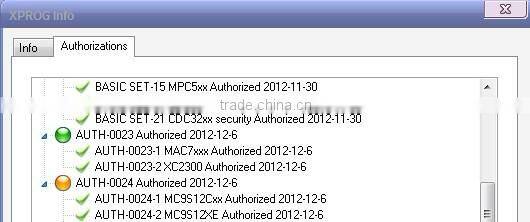

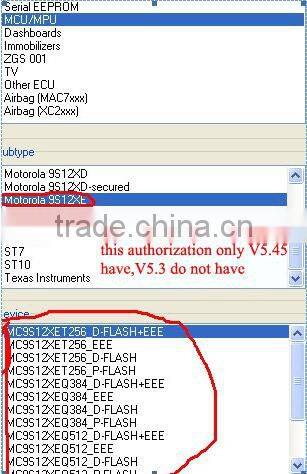

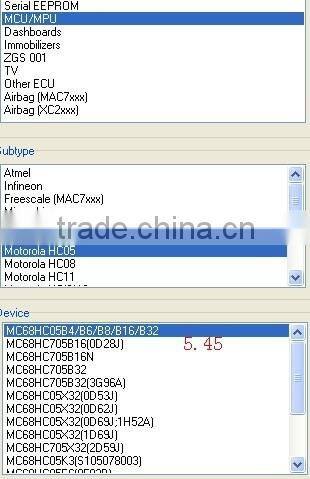

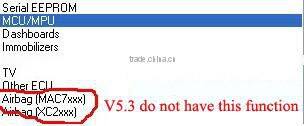

Please check the detailed function display:
We can also supply
Transponder Key ,flip key,remote,etransponder chip,emergency key,remote rubber,key shell,all kinds of key and remote control accessories, locks, locksmith tools, Car Equipment And Tools ,ETC
