NOTE: ALL THE OPERATIONS WITH THE F109 FUSE MUST BE DONE WITH THE DASHBOARD SWITCHED OFF(KEY OFF).

Support Renault Before Year 2012

Renault AdBlue Emulator Installation

The connections details diagram and wire colours refer to RENAULT PREMIUM 450  Year 2008, but the main procedure of the minusblue module does not vary. Before proceeding make sure no faulty codes are memorised in the original ECU, ADBLUE liquid is higher than the reserve level and the truck batteries are disconnected from the system.

Renault AdBlue Emulator Description:

AdBlue Emulator Box designed to disable AdBlue system used in trucks, buses and other heavy vehicles with EURO 4/5 exhaust emission rates  AdBlue Emulator Box bypasses electronic module of the Adblue system on vehicle.

It's very easy to fit AdBlue Emulator Box to any truck or bus equipped with AdBlue system and it will override AdBlue system instantly, it will stop the usage of AdBlue liquid. AdBlue Emulator Box disables AdBlue system electronics gently so there will be no power loss of the engine or any warnings on the dashboard and in diagnostic system.

This device works without interfering to work of other electronic systems of the vehicle. AdBlue Emulator Box has a wide range of supported vehicle models and there is only one version of emulator for all supported trucks, just upload the necessary program to the AdBlue Emulator Box and you can install it on any supported truck.

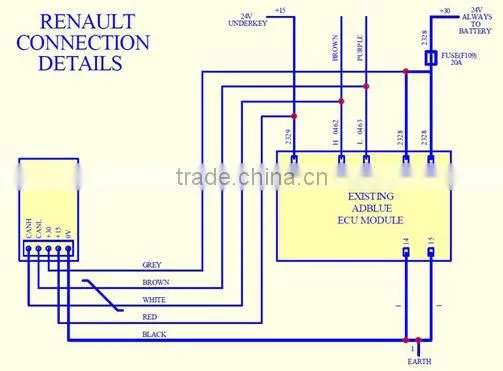

Renault AdBlue Emulator Wiring

5 Conductors:

1) RED(+15). To be connected to a 24V source enabled when the engine key is in the ON position.
This connection will supply power to the minusble Module when the engine key is on(dashboard on).
2) BLACK(0V). To be connected to an earth.
3) GREY(+30). To be connected to a 24V supply always available to the existing adblue system (F109 protection fuse and the adblue system).
4) WHITE(CAN H). To be connected to CAN H of the system.
5) BROWN(CAN L). To be connected to CAN L of the system. The connections must be made under the box of the connectors located on the chassis.

Renault AdBlue Emulator Activation

The minusblue module and the original adblue module CANNOT both be activated at the same time, the GREY ACTIVATION WIRE(+30) is to enable the minusblue module working.

It is important to connect the GREY ACTIVATION WIRE(+30) to a 24V source always available (battery), moreover, the soldering operation must be done between the 20A fuse(F109) and the existing adblue module.

If you want to stop and exclude the original adblue module from working, all that needs to be done is to remove the F109 fuse before starting the engine.

The minusblue module will automatically be activated. To re-instate the original adblue module, all that needs to be done is to reinstall F109 fuse before starting the engine. The minusblue module will automatically be de-activated.

Renault AdBlue Emulator Self Learning

When the minusblue module is fully connected to the electrical circuit of the original adblue module, and after identification of the F109 fuse controlling the power feeding to the original adblue module the truck batteries can be Re-connected. The minusblue module aquires the inputs from the CANBUS the first time the dashboard is turned on (key on but engine still off).

1) Make sure the F109 fuse is inserted.
2) Turn on the dashboard(key on) and verify that the red led is on.
3) After approx 1 minute the red led will turn off and the green led will Turn on.
4) Switch off the dashboard(key off).

After this procedure the minusblue module will be activated whenever the dashboard is turned on (key on).
The result will be:
1) If the F109 fuse is installed the original adblue system will be working. Both red and green leds will be on.
2) If the F109 fuse is not installed the original adblue system will not be working and the minusblue module will be activated. Both red and Green led will be flashing.

LED FUNCTION ON - OFF
KEY OFF:- RED OFF, GREEN OFF - NO POWER FEEDING.
KEY ON:- RED OFF, GREEN OFF - TRUCK NOT SELECTED.
KEY ON:- RED ON, GREEN OFF - WAITING FOR SELF-LEARNING.
KEY ON:- RED OFF, GREEN ON - LEARNING COMPLETED.
KEY ON:- RED ON, GREEN ON - DATA SAVED, MODULE NOT ACTIVATED.
KEY ON:- RED PULSE, GREEN PULSE - DATA SAVED, MODULE ACTIVATED



When this box connected -AdBlue system of the truck would be fully emulated ,no errors related to AdBlue.The box can be fast and easily installed to truck. You can disconnect it ,reset and install into another truck .
