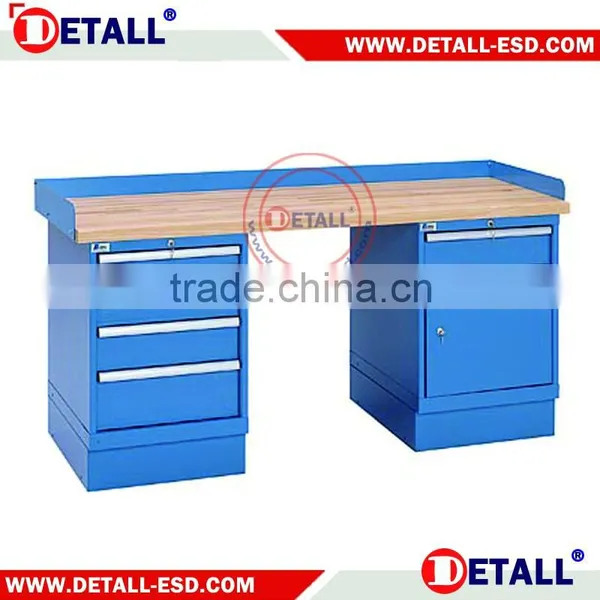

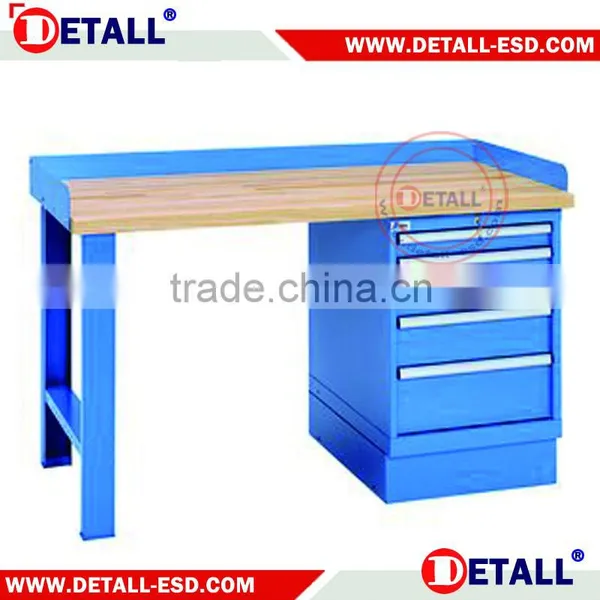

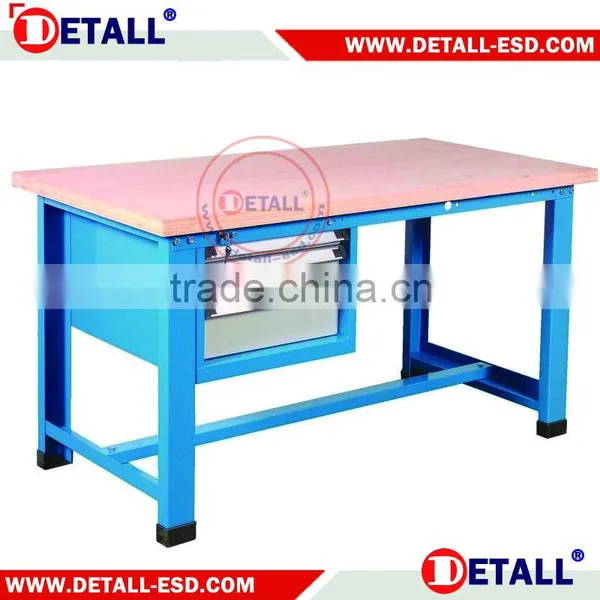

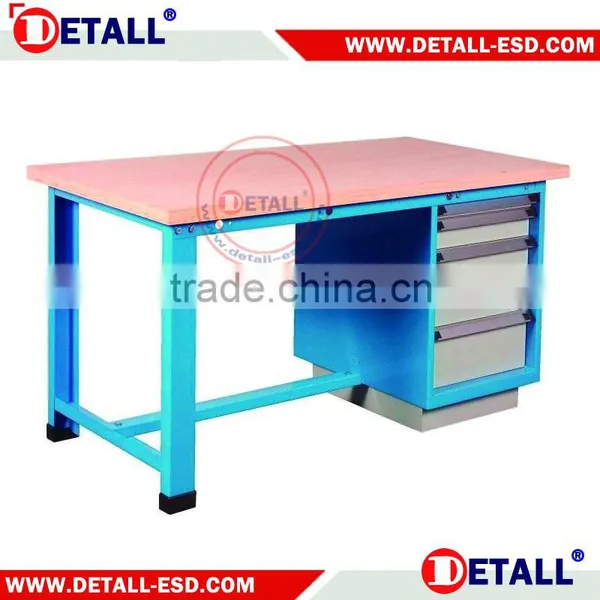

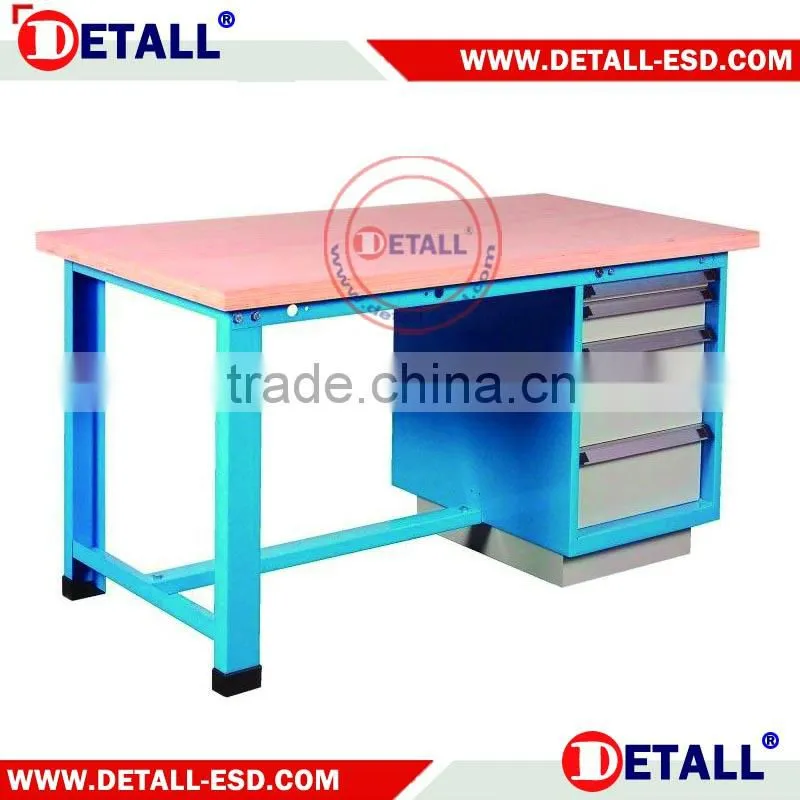

Characteristics and Fuctions of Multipurpose Elctronic Woodworking Benches for Sale
:
1.The table top of the work table is MDF and used for woodworking.
2.The parts of the workbench are modular to be installed and removed as your need.
3.The underline has a energy rail and the CPU are convenient and sahe for users.
About Detall
Detall is the ESD Laminate workbench EXPERT. We serve and supply everyone from large multi-facility plants and government facilities to small Laboratory businesses.
We Produce advanced ESD Laminate workbench,Tables, Chairs, Storage Rack ,Trolleys and other Furniture for Electronics manufacturing, Assembly, test & repair, Lab and Computer, automotive workshop and school
We also offer the Electric height adjustable Customized ESD Laminate workbench
We also offer the Customized, OEM and ODM Customized ESD Laminate workbench
Why Detall ?
1. Professional Modular ESD Laminate workbench and chairs at Best prices and customer service
2. Detall ESD Laminate workbench Adopt the Modular design, Stable structure, durable, strong and easy assembly. Various of functional parts are optional by customer’s need.
3. Drop-shipped direct from the factory at a discount.
4. Detall ESD Laminate workbench use material of Cold rolled Steel with ESD powder coated, ESD laminate top board, ESD workbenches has permanent ESD property.
Detail Specifications
1.Table Top Board
Detall ESD Laminate workbench Adopt the Permanent ESD property laminate for both table top and bottom side. Fire-proof and durable.
Thickness 25mm and 50mm. Side sealing color : Yellow, Black and Gray
Standard size:Length: 1.2m,1.5m.1.8m ; width: 0.6m, 0.75m, 0.9m
Various material of table top for different using. ESD Laminate, PVC Laminate, Beech wood, Steel, Stainless steel and Durable macromolecule Table top.
2.Table Top Support
ESD Laminate workbench support adopt the Cold rolled Steel with ESD powder coated. Highly Precise processed by Automatic Numerical control bending and punching machine. Has permanent ESD property.
3.Other Optional Parts of different functions
We have various of Functional Parts that are optional choosed by customer’s need.
| PARTS | ESD Workbenches Standard Specification | Marks | |
| Adjustable Table Support | Height adjustable 670-1120mm | Length 1800, 1500,1200mm; Deepth:600,750,900mm | Light duty:300kg, Medium Duty:500kg, L type :500kg, Heavy duty:600kg |
| Fixed Table Support | Height 760mm | ||
| Anti-static Table Top | Thickness 25mm or 50mm | Length:1200,1530,1830mm, Width:600,750,900mm | Steel covered, Stainless Covered, Durable top board Optional |
| Anti-static Uper Shelf | ESD Laminate or Non-ESD board | Length:1200,1530,1830mm, Width:380mm | Weight loading:50kg |
| Steel Shelf | Also can be installed 15 degree slant | Length:750,900,1200mm. Width:300,400mm | weight loading: 30kg |
| Adjustable Steel Shelf | Double Brackets optional | Length"750,900mm. Width:650mm | weight loading: 50kg |
| Ssuspection Rail for Picking Bins | Also can be installed 15 degree slant | Length:750,900,1200mm. | weight loading: 30kg |
| Panel | Blue, Gray color optional | Length:750, 900, 1200mm. Width:240, 390mm | Placing Drawing paper |
| Perforated panel | Perforated Hole 9*9mm | Length"750, 900, 1200mm. Width:390mm | Using for Tool hooks |
| Louvre Blade Panel | Blue, Gray color optional | Length"750, 900, 1200mm. Width:390mm | Using for Picking Bins |
| Light Brackets | slant LIGHT BRACKET , | Length 1800, 1500,1200mm; Deepth:380mm | LED light optional |
| right-angled Light Bracket | LED light optional | ||
| Simple Light Bracket | LED light optional | ||
| Drawer | Singler Layer | 350×450×125mm | weight loading: 15kg |
| Double Layer | 350×450×250mm | weight loading: 15kg | |
| Triple Layer | 350×450×375mm | weight loading: 15kg | |
| Drawer Cabinet | 350×450×500mm | weight loading: 15kg | |
| Advanced Triple Lyaer | 372×486×500mm | weight loading: 35kg | |
| Parts of Energy Rail | Slant type, Vertical Type | length:750,900,1200,1500,1800mm | Europe, UK, Australia and America Standard |
Customized Products
We have great teams that professional trained and experienced to Develop, design, produce and service the customer. We can Highly Customized for Special Size, Configuration and special functional ESD Workbenches for clients.
Production Flow
We have the advanced Automatic Numerical control bending and punching machine, and Automatic Spray Coating Line. Products have high accuracy processing such as cutting, punching and bending.
ESD surface coating adhesion force is more than 2H, permanent ESD property.
Packing & Transportation
Carton box for standard size Parts.
Outside Export standard plywood packing for Air and Sea shipping.
Lead time: 7 working days for stock items, For higher quantities, add 1 day for every 20pcs ESD workbenches for Customized workbench 15-20 workding days.
Product Assemblies
Designed with modular parts, parts can be assembled easily and optionally.
Products with assembly paper and video guide.
Certificates
We have a completed system of R&D, design, Produce, quality supervise,quality testing and customer service.
ISO9001 Quality system, Every production steps checked by QC and passed with a stamped card. and the stamped report card shipped in packing box.
Test Standard and Test reading
| Surface Static Dissipative Specification |
| Physical Properties |
| ESD performance properties meet or exceed IEC61340-5-1:2007, USA Military ANSI/ESD S20.20-2007 Standard, and China Military GJB3007-2009 Standard,and standard SJ/T10694-2006; Test by National MII department. |
| Surface Finish: Standard textured finish |
| Chemical Resistance: Resistant to common solvents such as Acetone; Trichloroethylene; Solder flux; Isopropyl Alcohol; Naphtha. |
| Bonding Procedure: Use standard contact or white glue adhesives application procedures for High Pressure Decorative Laminates. |
| Maintenance: Clean Static Dissipative Laminate with good ammoniated detergent, rinsing with clear water. Do not use wax or other coatings since they may modify the electrical properties of the laminate. |
| ELECTRICAL PROPERTIES | ||
| Test | Relative Humidity | Electrical Results |
| Point to Point Resistance | 60% - 40% | 106 to 1 x 107 ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10% | 108 to 109ohms | |
| Point to Ground Resistance | 60% - 40% | 106 to 1 x 107ohms |
| 40% - 20% | 107 to 1 x 108 ohms | |
| 20% - 10%* | 108 to 109 ohms | |
| Volume Resistance | 60% - 30% | 107 to 1 x 108 ohms |
| 30% - 10% | 108 to 109 ohms | |
| StaticDecay | 50% | 0.01 sec |
| 10% | 0.02 sec | |
| 1 Per EOS/ESD - S 4.1 | ||
| 2 Measured Face to Back at 72°F, 100 V with a LCD Megohmmeter, Item No. 19770,NFPA Electrodes (2.5 inch diameter, 5 pounds) | ||
| 3 FTMS 101C, Method 4046 | ||
Our services
Assembly Service:
Our products are promised 3-year maitainaince for the products you bought , We offer fully assembled frameworks, guards or slides, thereby you can concentrate on your own speciality and save your time.
OEM Service:
Our engineers would be glad to make drawings and design products as you asked, we would love to supply a complete solution and the full set of products for your work, giving you a safe condition.
Hot Sale Products
Real Case
We had supplied to goverment Facilities, Military department, Famous International Interprises .
Q&A
1. How to order the Customized ESD Laminate workbench ?
If you have a drawing of your wanted workbench, You can show the drawing to our salesman, then will discuss with our engineer about the produce process, get the Detailed Quotation list.
If you do not have the drawing, pleas tell our salesman what the workbench size, functions, configurations and special needs, Our sales man will make a Drawing with our engineer. We will give you the quotation list when you confirm the drawing and details.
2. What Detall can help me for my EPA system ?
Detall is an experienced expert of ESD system solution supplier. We are professional to establish the ESD grounding system. ESD access Monitoring system, ESD furniture System, ESD human body system and other ESD equipment and tools. We can help you establish and reform your EAP system.
As a top professional ESD system supplier, We Can offer you excellent design, reliable quality and completed service, We devote to offer the first class products and service in world wide.
Choose Detall, Choose your professional personal EPA expert !
