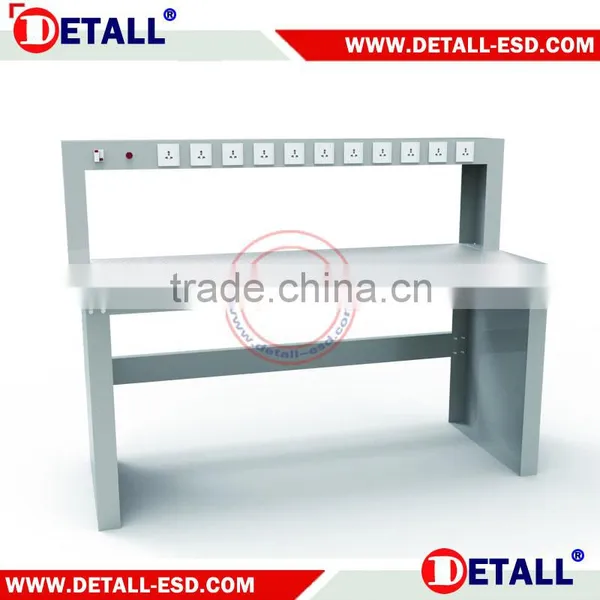

Detall Metal workbench heavy duty
Detall metal workbench heavy duty
Description
• Detall workbench Adopt the Permanent ESD property material for all parts
Worktop Surface with ESD Laminate covering; All other parts are made of cold rolled steel with ESD powder coating
• Ergonomic design for more comfortable working
• Modular structure for easy shipping, flexible for specific needs. Economic replace for damage parts
• Durable material & structure, with 2.0mm thick cold rolled steel frame, Detall ESD workbench can load more than 500kg at least.
• Simple directly grounding based on entirely ESD process, all parts surface Resistance 106- 109 ohm
Standard metal workbench heavy duty
• Height Adjustable Range of: 670~1120mm.
• Weight Loading, Static Load:500kg, Dynamic Load:300kg,heavy duty type:800kg
• Antistatic Workbench Supports+Back Plane+Front Beam for Combined, Convenient disass durable garage metal workbench worktable from China embly and assembly.
• All workbench can be equipped with anti-static castors,With the use of enhanced metal foot cup can enhance the bearing capacity of working table.
Humanized Design
• Sturdy structure for heavy duty works.
• Various type of table top available, such as Beech wood top; Compound table top .etc.
• Widely used in Industrial workshop; Cleanroom; garage; private working room.
• Packing: Frame with bubble foam wrapped, table top with carton;
• Different dimension, thickness and color are available;
• OEM service available.
Particular technical Parameters
| Model NO. | Specification | Qty. |
| DT38150 | Adjustable table support 1500*750mm | 1 |
| DT58158 | Double antistatic table top, gray color,1530*750*25mm | 1 |
| DT02813 | Perforated tubular frame 2M750*1359mm | 1 |
| DT38158 | Antistatic back paned M750*390mm | 2 |
| DT10753 | Steel shelf M750*300mm+bracket | 2 |
| DT48075 | Suspension rail M750mm | 2 |
| DT95801 | Oblique lighting stand 2M750*380mm+slide hook | 1 |
| DT95800 | Prism light 2*30W | 1 |
| DT00665 | Double layer drawer 350*450*250mm | 1 |
Modular Specification
| Workbench Item | Detall workbench |
| Structure | Assembly structure. |
| Custom-made | Accept. Could meet your any requests. |
| Table Top Color: | Side sealing color: Yellow, Black and Gray. |
| Table Top Size: | L: 1.2m,1.5m.1.8m; W: 0.6m, 0.75m, 0.9m; H:25/50mm. |
| Table Top Material: | ESD Laminate, PVC Laminate, Beech wood, Steel, Stainless steel and Durable macromolecule Table top. |
| Table Support Material: | Cold rolled Steel with ESD powder coated. |
| Table Support Size: | 1530*750mm, 1530*900mm,1830*750mm 1830*900. |
| Additional Accessories: | Side sealing color: Yellow, Black and Gray. |
Various Material of Table Top

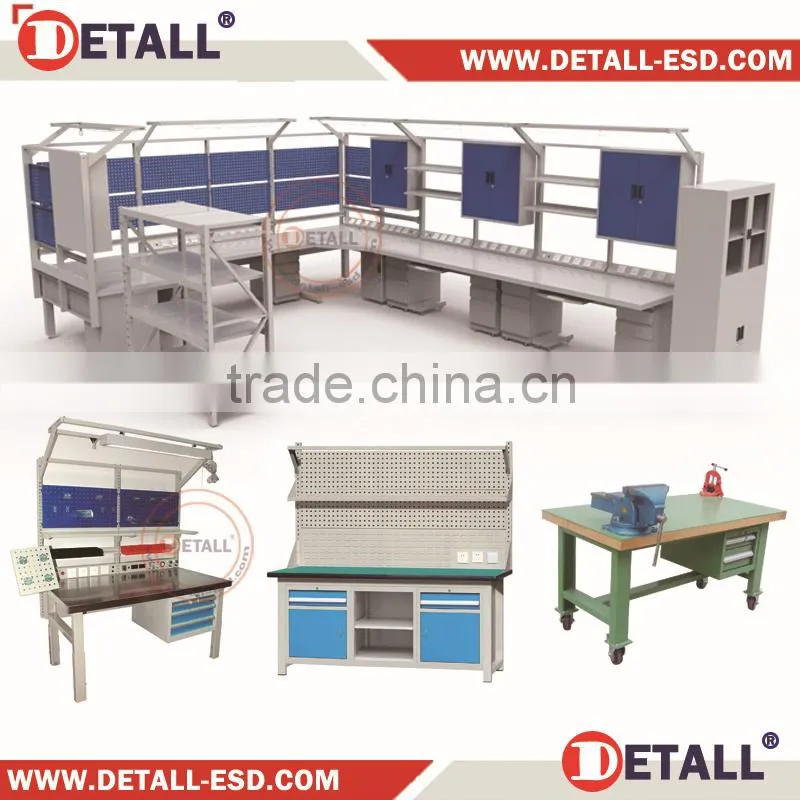

Different Shape of Table support
Optional parts
We are the best you can find in China.
As the leading manufacture in China. Detall Produce All kinds of workbench for wide application for various industries
We has been providing efficient and organised workspace and storage solutions to thousands of customer in world-wide. We process only the highest quality products.
1. China's Famous Brand & Qualified manufacturer.
We produced the industrial furniture since 2005. Focus on all kinds of workbenches and ESD protection area for electronics production.
We have 15 years experienced workbench production engineer, 12 years experienced ESD senior engineer. Our company is the one and only who have the full-time senior ESD engineer.
2. You can get the TOP QUALITY products from Detall
We believe the top quality make the praiseful & famous brand, The brand is the key for wordwide business.
* We guarantee the best material. No fake and used material. No cheating on materials.
* We guarantee the workbench performance (ESD performance, loading capacity, specification)
* We guarantee the workbences are well packed for safety transportation.
3. You can get the COMPETITIVE PRICE from Detall.
Price is a another key point in business competition. But We believe you are always looking for a reliable , affordable and highest cost-effective products. Not the cheapest one without quality requirments.
* As a direct manufacturer, Detall offer you the most competitive direct price.
* You will find our price is highest cost-effective with the top quality
* Our workbench offer a affordable price that help you save 50% cost from another brands.
* The interchangeable modular parts can help you save the future cost for adding more functional parts to instead of buying another workbench.
4. You can get the SUPER GUARANTEE from Detall.
We offer the SUPER GUARANTEE for our products that you can't get from any supplier in China.
* Usually all other supplier offer a 1 year warranty period, But we offer the 5 years warranty period.
* The extended 5 years warranty and lifetime warranty is available. you can only need to comment on our website or send our products layout photoes on your side.
* We guarantee your 100% satisfaction on products quality issue.
5. You can get the BEST SERVICE from Detall.
* We offer the 12hours * 7days service online.
* We reply you within 4 hours, We quote you within 8 hours. We design for you within 8 hours.
* the professional sales and engineers are able to give you the best advice and design. that's free of charges.
• We are a manufacturer who focus in industrial furniture more than 10 years.
• We approved by Siemens, Zollner, Staubli, Blackberry, Honeywell, Iscar and many famous enterprise.
• Our design team has rich experience of supplying Large multi-facility plants & government project.
• We have the rich experience team with perfect service-12 sales offering quickest reply, 7 Engineering , 60 trained worker, Best CNC production machine.
The Safest Transportation
• We Packing the heavy duty workbench in standard export wooden case Air and Sea shipping.
• Our stainless steel workbench follow European Standards: CE, ISO9001, EU EN61340 Anti-static, EU EN60598 Safety Standards.
• ESD workbench has all working surface resistance 106 -109 Ohm , performance are CE certificated by international ESD Standard IEC-61340-5-2007.
All our workbench has passed and CE certificated by the
EN ISO 12100:2010 Safety of machinery - General principles for design.
EN 60204-1:2006+A1:2009+AC:2010 Safety of machinery - Electrical Equipment of Machines
IEC-61340-5-2007 Protection of electronic devices from electrostatic phenomena (for ESD workbench Only)
• Detall products are test and certificated by the BV (BUREAU VERITAS) before the shipment. All Detall products accept the third party quality checking before the shipment.
• We could offer you the different certificate include Quality Certificate, CE Certificate... to prove our Lab workbench with good quality.
• We could guarantee the safe transportation from Shanghai port to your local country port.
• We could accept to return the goods if they can not work in warranty time, we bear all the charges.
• We could make sure the satisfied warranty, just for your goods.
Choose Metal workbench from Detall. Choose your Expert !!!
Contact us to know our more Warranty, Discount, Details...
