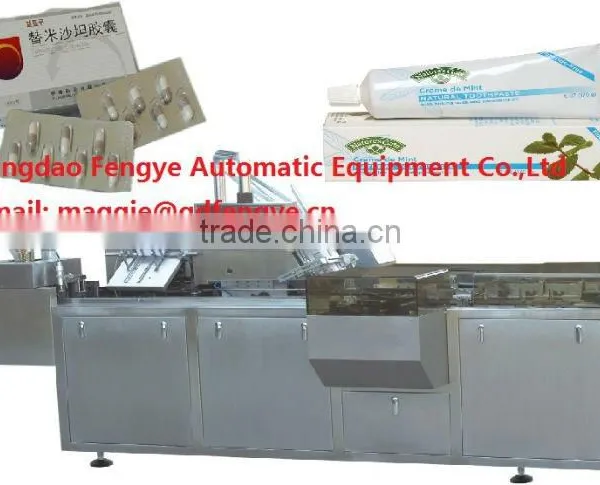

Automatic Paper Boxes Packaging Machine Cartoning Machine

Specifications

Automatic Paper Boxes Packaging Machine Cartoning Machine is used for inserting soap, ointment,glass bottle into boxes.

Automatic Paper Boxes Packaging Machine Cartoning Machine



1. Introduction:

This machine is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting soap, tube, ointment,glass bottle, cosmetic and soft package(packed condoms) into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes folds leaflet automatic folding, canton suction and open,products and leaflet put into,printing batch number,sealing carton with tuck-in or hot melt glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three –Dimensional Packaging Machine, etc to form a production chain.



2. Technical Data

Weight & Dimensions

Type	FY100G
Dimensions in mm	1200×1250×1500 (L×W×H)
Weight in kg	1200

Output & Speed

Steady production speed

100-125 cartons/min



3. Utilities

Standard power supply	220V – 50Hz
Power consumption in KW	1.5
Air consumption	5-20L/min
Compressed Air Pressure	0.6MPa
Noise	<70 dB
