Home > Products > packing machine > Automatic Medicine Plates Boxing Machine

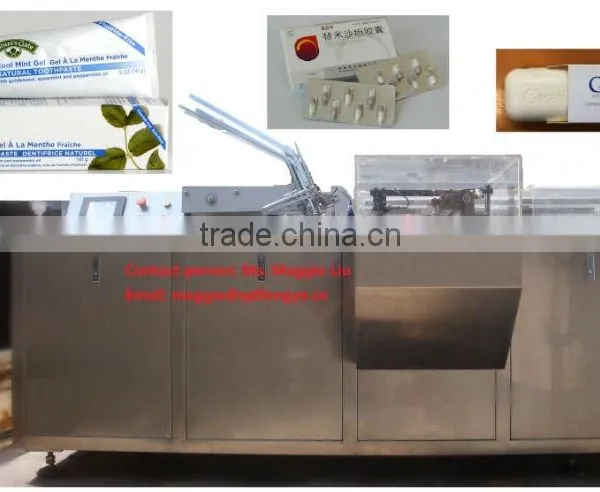

Automatic Medicine Plates Boxing Machine
- 100 Unit / Units per Month
- Qingdao
- T/T
- Case Packer Pouch Cartoning Line for Packaging Doypack Bags
- Introduction of plastic hollow plaid production line
- Cartoning Machine Monoblock Case Packer for Packaging Butter Bricks
- Auto Bottle Shrink Wrap Packaging Machine
- Semi-Automatic Heat Shrinking Machine
- Automatic Heat Shrink Edge Banding Shrink Packaging Machine
Product Details
Condition: | New | Application: | Commodity | Packaging Type: | Other, box package |
Packaging Material: | Paper | Automatic Grade: | Automatic | Driven Type: | Electric |
Power: | 1.5kw | Place of Origin: | Shandong, China | Brand Name: | Fengye |
Model Number: | FY100G |
Product Description
Specifications
Automatic Medicine Plates Boxing Machine is used for inserting soap, tube, ointment, glass bottles, cosmetic bottles automaticalAutomatic Medicine Plates Boxing Machine
1. Introduction:
This machine is high technology product incorporates of pneumatic-photo-electro-mechanic. It is suitable for inserting soap, tube, ointment,glass bottle, cosmetic and soft package(packed condoms) into carton in a range. The machine finishes running by a series of photo-electro controller to make the machine stability and guarantee the packing quality. It includes folds leaflet automatic folding, canton suction and open,products and leaflet put into,printing batch number,sealing carton with tuck-in or hot melt glue device. The machine can be single used or linked with Filling Machine, Blister Packing Machine, Shrink Machine, Three –Dimensional Packaging Machine, etc to form a production chain.
2. Technical Data
Weight & Dimensions
Type | FY100G |
Dimensions in mm | 1200×1250×1500 (L×W×H) |
Weight in kg | 1200 |
Output & Speed
Steady production speed | 100-125 cartons/min |
3. Utilities
Standard power supply | 220V – 50Hz |
Power consumption in KW | 1.5 |
Air consumption | 5-20L/min |
Compressed Air Pressure | 0.6MPa |
Noise | <70 dB |
