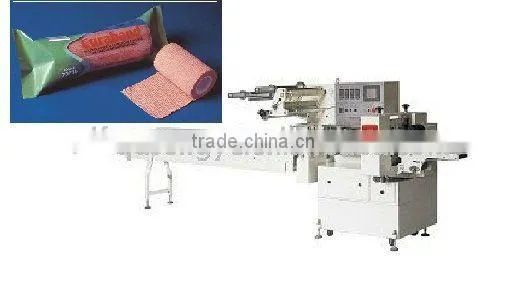

The Best Gauze Bandage Rolls Packing Machine

Specifications

Gauze Bandage Rolls Packing Machine is suitable for automatic packaging of instant noodles, biscuits, noodles.

Gauze Bandage Rolls Packing Machine is also suitable for automatic packaging of instant noodles, biscuits, noodles, moon cake, ice bar

APPLICATIONS:
Suitable for automatic packaging of bandage, instant noodles, biscuits, noodles, moon cakes, ice bar, snack, medicine, soaps, tissues, chocolates, quick frozen food, facial mask, sanitary towel, adhesive tape, industrial parts, consumer goods, etc.

Main Features:

1.Compact design, and easy operation.
2. Automatic on-site stop.
3. Digitally indicating the size of the film, speed of wrapping, turnout and temperature.
4. PLC based control system reliable and stable, low maintenance.
5. Speed control via A.C. invertors.
6. Photoelectric cell and dual tracking without mechanical contact.

Main Technical Data:

Model	FA450/99	FA450/120	FA450/150	FA590/120		FA590/150	FA590/180
Roll Max. Width   in   mm	450	450	450	590		590	590
Product    Measurement in  mm	L: 90-400     W: 10-150 H: 5-40	L: 90-400  W: 10-150   H: 15-60	L: 90-400 W: 10-150 H: 40-90	L: 90-400 W: 30-200 H: 30-60		L: 90-400 W: 30-200 H: 40-90	L: 90-400 W: 30-200 H: 60-120
Capacity bags/min	50-180             50-150        50-150			50-150        50-150        50-150
Machine   Dimensions	5000*965*1750			5000*1105*1750
Types of  Packaging Composite Film	Packaging Composite Film, PE/Paper, OPP/PE, ALU/PE and etc
Machine Weight	1000 kg				1200 kg
Power Required	220V/AC, 1 phase, 50 Hz  3.66 KW
