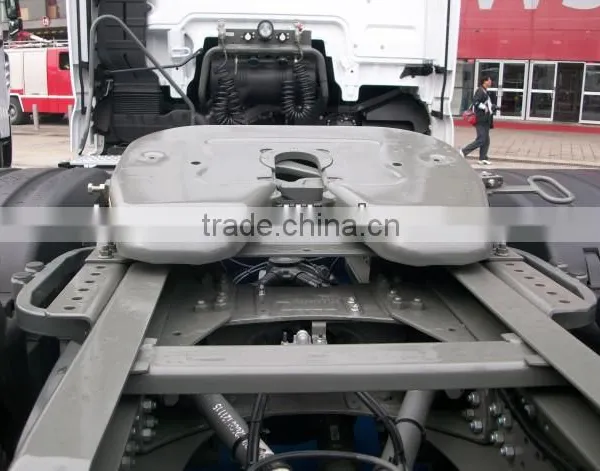

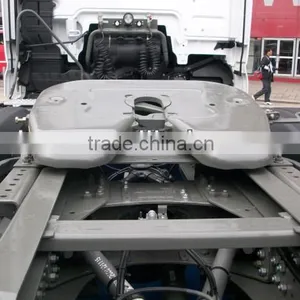

truck trailer fifth wheel

Specifications

1/factory
2/2"(50#) and 3.5"(90#)
3/ISO9001
4/fifth wheel

The fifth wheel is produced by fabrication according to DIN74081 and ISO3842.It suits for 2" (50mm)kingpin/3.5"(90mm)kingpin.

High strength casting steel top plate with machined surface guarantee a long time smooth running.More safe for use with convenienct and reliable auto-lock system



Casting Fifth Wheel Dimension :



Item NO.	Rated vertical load	D-value	Lengthways angle	Transverse swing angle	Installation height	Weight	King Pin Size
	kg	kn	a°	β°	mm	kg	mm
FW50-C01	25000	176	15	0	167.5	172	50
FW50-C3038C1	28000	170	15	0	195	229	50
FW90-C3038C1	36000	260	15	0	195	229	90
FW90-C3038G1	40000	260	15	7	290	300	90
