Specifications
1/factory, manufacturer2/OEM
3/ISO9001
4/brake drum
brake drum
casting,
semi trailer, truck brake drum,
axle parts
our factory
brake drum specifications:
1.Name: Cast iron Automobile Drum brake
2.Professional mold design and quick mold making.
3, Material: cast iron GG25
4, Process: cnc machining,deburring, drilling holes, tapping, grinding, CNC machining ect.
5, Application: auto parts ,
6.Secodary machining: CNC turning, Milling, Drilling, Grinding ect.
7.Applied software for specification drawings: PRO/E, Auto Cad, Slid Work, CAXA, UG, CAD/CAM/CAE
8.Surface treatment: chrome plating, sandblasting, painting, powder coating, anodizing,blasting,fuel injection ect.
9.According to your drawings , samples,even an idea to make production for your approval.
10, We have got ISO 9001 quality certificate & RoHs test report.
| Reference no. | Brake face diameter | Brake face width | Pilot diameter | Bolt circle diameter | Number of bolt holes & bolt hole size | Overall depth | Application |
| 310679060 | φ420 | 223 | φ240 | φ285 | 8-φ21 | 286 | BPW |
| 310687150 | φ420 | 240 | φ290 | φ335 | 10-φ23 | 296 | BPW |
| 310677040 | φ420 | 215 | φ290 | φ335 | 10-φ23 | 277 | BPW |
| 310967130 | φ420 | 200 | φ290 | φ335 | 10-φ23 | 226 | BPW |
| 310967190 | φ420 | 200 | φ290 | φ335 | 10-φ23 | 226 | BPW |
| 2507760130 | φ420 | 225 | φ290 | φ335 | 10-φ23 | 283 | BPW |
| 1134502 | φ420 | 200 | φ290 | φ335 | 10-φ23 | 252.5 | BPW |
| 1144502 | φ420 | 225 | φ290 | φ335 | 10-φ23 | 298 | BPW |
| 1164502 | φ420 | 240 | φ290 | φ335 | 10-φ23 | 298 | BPW |
| S360573 | φ412.75 | 266 | φ295 | φ335 | 10-φ23.5 | 320 | SCANIA |
| 21018986 | φ419 | 200 | φ282.6 | φ335 | 10-φ24 | 249 | ROR |
| 21021114 | φ419 | 236 | φ282.6 | φ335 | 10-φ24.5 | 272 | ROR |
| 21220183 | φ311 | 200 | φ183 | φ225 | 10-φ24.5 | 262 | ROR |
| And more... | |||||||

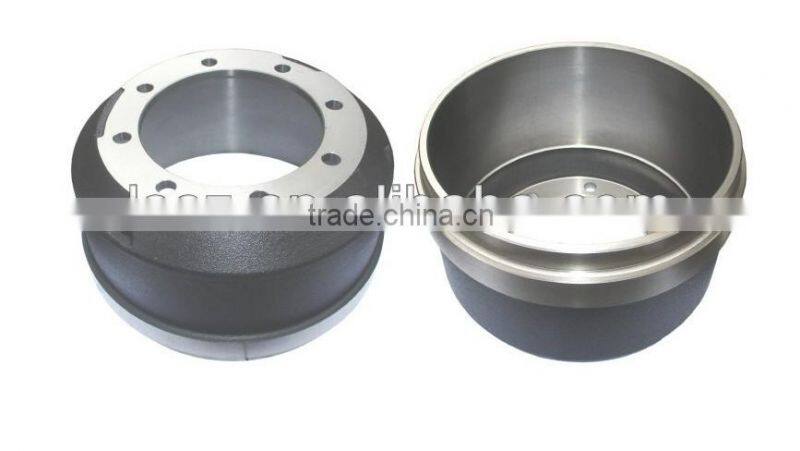

brake drum parts

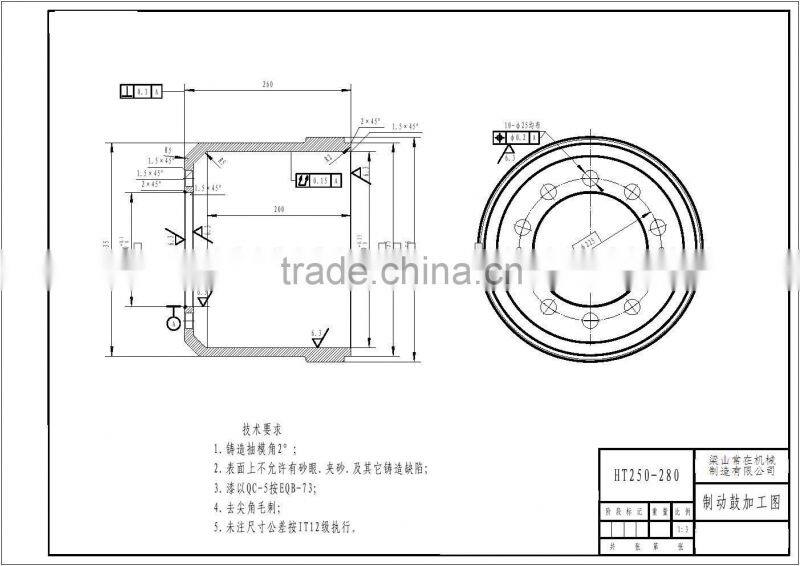

brake drum drawing:
brake drum process:
payment & terms:
- MOQ: 100 Piece
- FOB Price: 40-100
- Payment Terms: T/T
- Supply Capacity: 5000 Piece per Month
- Delivery Time: About 7-20 Working Days
- Delivery Port: Qingdao
- Package: By Pallet; By Wooden Case;
fuwa landing gear outside
landing gear FUWA/JOST CF28T
type: fuwa,jost, york

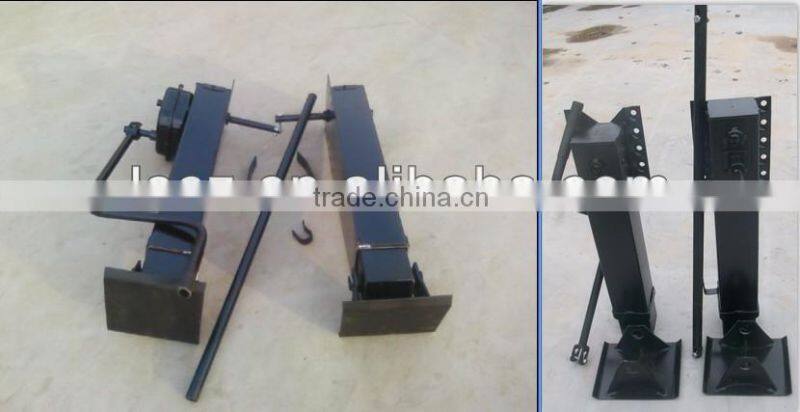

fuwa landing gear
landing gear specifications:
| model | CL25T | CL28T |
| static load capacity(T) | 80 | 80 |
| rated lifting load(T) | 25 | 28 |
| high gear(mm) | 6 | 75 |
| low gear(mm) | 0.67 | 0.83 |
| max route(mm) | 14" 17" 19" | 14" 17" 19" |
| shut height(mm) | 713 789 840 | 713 789 840 |
| weight(KG) | 98 104 108 | 100 106 110 |

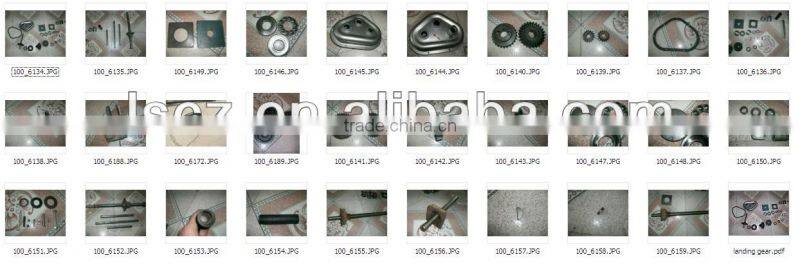

landing gear parts
noted:
Universal application in semi-trailers ;
Interchangeable with Jost D200,A400 model;
Shoe Mobile , T , which provides greater absorption of uneven ground ;
Moreover , tilts up to 45 º , absorbing possible moves the implement with air suspension ;
Elongated fixation plate , allowing the application to position the user needs ;
Gears undergo a heat treatment process , increasing the lifespan ;
Spare Parts interchangeable ;
Made of steel , liquid paint finish ;
Static Capacity : 80T
Lifting Capacity : 28T ( 14T each foot )
Two operating speeds : Fast speed : approximation to the ground ; Slow Speed: pickup , providing less effort required .
Lube Point ( greaser )
Weight: 94 Kg
Accompanies spindle union of legs and hook latch handle, traveling in a neutral position ;

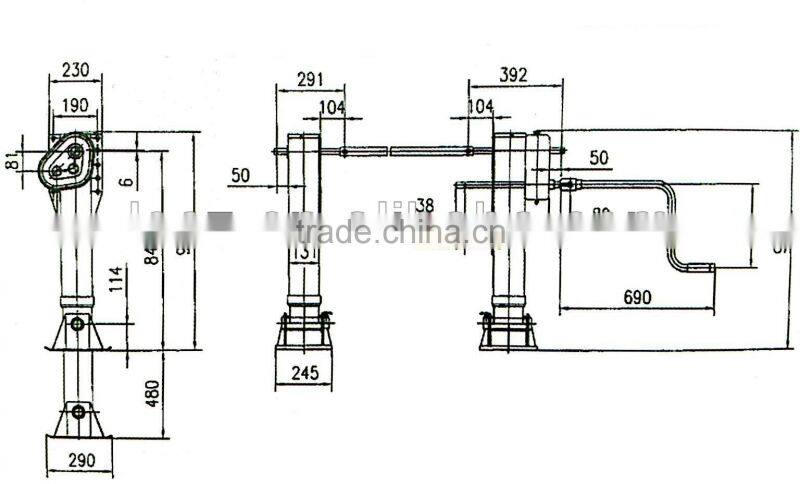

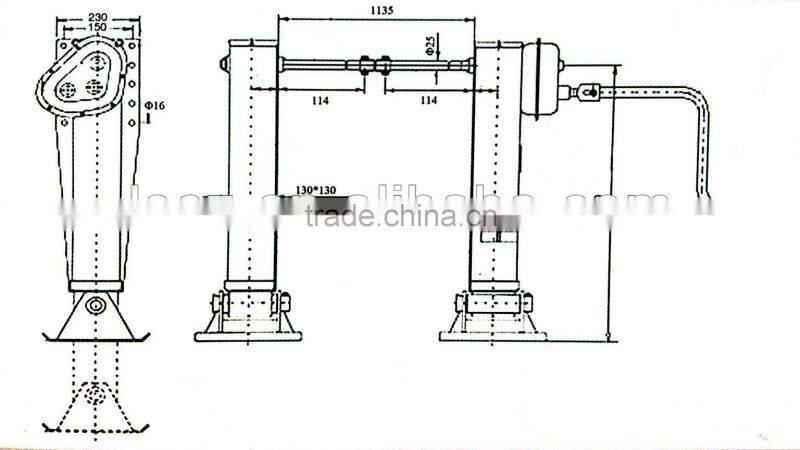

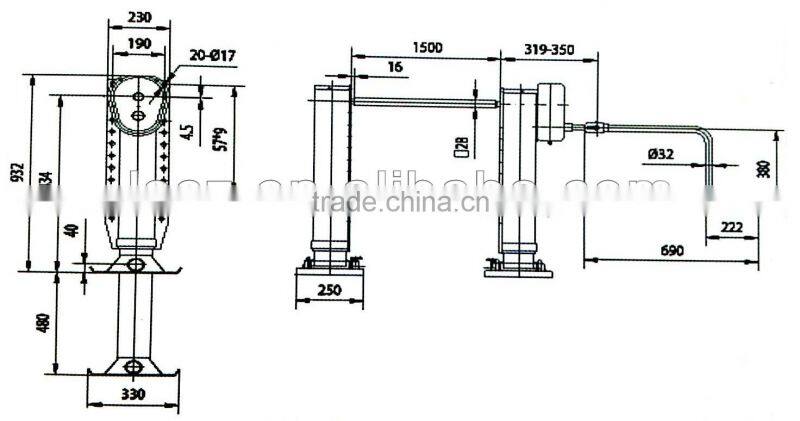

fuwa and jost landing gear drawing:
payment & terms:
- MOQ: 50 Pairs
- FOB Price: 120 ~ ~ 150
- Payment Terms: T/T
- Supply Capacity: 1200 Pairs per Month
- Delivery Time: About 7-20 Working Days
- Delivery Port: Qingdao
- Package: By Pallet; By Wooden Case; 200 Pairs Landing Gear in 1X20FCL.
our other products:
our service:
1. Q:What's your best price for this product?
A: We will quote you best price according to your quantity, so when you making an inquiry, please let us know the quantity you want.The more quantity the better price.
2. Q:How about the quality of this product?
A: Our products are certified to ISO9001, TS16949 international quality standards. We compay have very strict Quality Control Systems.
3. Q:What material of the product can you supply?
A: Steel
4. Q:What's your MOQ?
A: 10pcs for each model. We hope you can buy more to save more money.
5. Q:What's the delivery time?
A: For products that are in stock, we can ship it within 7 days after receiving your payment. For custom order, quantity within 24 tons, production time is 12-20 days after confirmed every details.
6. Q:What's your packing?
A:Our usual packing for this product is pallet, we can also supply you packing according to your requirements.
7. Q:Can we custom our own logo or label on this product?
A: Yes, you can. we support logo print & stamping & label print, print will be free if the logo is not very complex.
8. Q:What about the warranty?
A: We are very confident in our products, and we pack them very well to make sure the goods in well protection.
To avoid any subsequent trouble regarding quality issue, we suggest that you check the springs once you receive them. If there is any transport damaged or quality issue, don't forget take the detail pictrues and contact us as soon as possible,we will properly handle it, make sure your loss to reduce to the smallest .
