Small Chalk Moulder Machine to Make Chalk
Small chalk moulder machine to make chalk
Introduction of Small chalk moulder machine to make chalk:
Our chalk making machine is the most advanced one in China for chalk making. Chalk making machine realizes the line production from supplying water automatically, mixing material by electric mixer,mould filling to mould out.It greatly improves the working efficiency and lowered the labor intensity.At the same time, the consumption of raw materials lowered by 30% and the rate of eligible product is able to reach 99%.
Procedure of Small chalk moulder machine to make chalk:
1*. Slaked Lime mixer, power on, then fill in the water.The rate for the slaked lime and water is half to half.
2*. The mold should be lubricated enough. And should be lubricated for every cycle

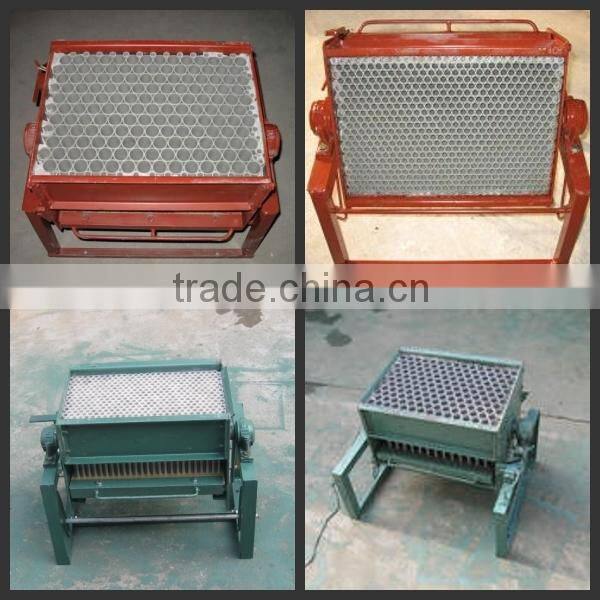

3*. Each model has 80 spaces for the filling, each cycle will be take about 6minutes,
4*. When the filling completed, should be turn off the model make the wet chalk come off from the model, then dry in the sun.
5*. The packing should be completed by handwork.
6*. The shape can be round, rectangle, or star shape.
7*.The length of the chalk can be from 75mm-105mm.
Features of Small chalk moulder machine to make chalk:
1. various capacity chalk machines, capacity rages from 6,000 PCS-48,000 PCS per hour
2. high capacity,top quality, competitive price; for example: the mould hole is engineering-plastics, and it is better strength, higher operating temperature and longer lifetime than common plastic.
3. automatic operation system, saving labor and raw materials
4. easy operation, working video is available
5. chalk shapes: round,square, six prism or other customized
Technical Parameters of Small chalk moulder machine to make chalk:
Model |
Capacity (pcs/h) |
Mold Specification (pcs/ mold) |
Packing dimensions (mm)
|
Mold number |
Weight (kg) |
Operator |
ALC3-FBJ1 |
2000-4000 |
400 |
530*380*340 |
one |
30 |
One |
ALC3-FBJ2 |
4000-8000 |
800 |
660*480*360 |
one |
65 |
One |
ALC3-FBJ3 |
8000-12000 |
800 |
1800*1150*800 |
two |
260 |
One |
ALC3-FBJ4 |
12000-24000 |
800 |
1800*1150*800 |
four |
350 |
One |
ALC3-FBJ5 |
24000-32000 |
800 |
1800*1150*800 |
six |
600 |
two |
ALC3-FBJ6 |
32000-48000 |
800 |
1800*1150*800 |
eight |
800 |
three |
Transportation Notes(as you like):
Why us?
1. Heartfelt pre-sale and after-sale service
1)Before sending the machine, we will test and adjust, so you can use directly when you get it.
2)Operating instruction will be sent to clients, to help them better use the machine.
3)Any problems occur while using, professional advice will be given by us by calling and emai.
4)All kinds of frequently used parts are supplied from us all the year round.
2.Big factory area, 9 years experience
3. Warranty date :one year, MOQ: one piece
4.TUV &BV certificate.
5. Fast delivery and professional exported team.
6. All of our products have been strictly inspected before shipment.
7. Customers first, satisfying customers forever.
8.Accept payment terms: T/T,Western Union, Money Gram, Escrow, 100% L/C, Credit Card
Our company:
Contact details:
DON'T HESTATION! PLS SEND YOUR INQUIRY TO US.
HIGH QUALITY PRODUCTS!
COMPETITIVE PRICE
BEST SERVICE
WAITING FOR YOU!
