Briquette Machine From Sawdust/Sawdust Briquette Charcoal Making Machine

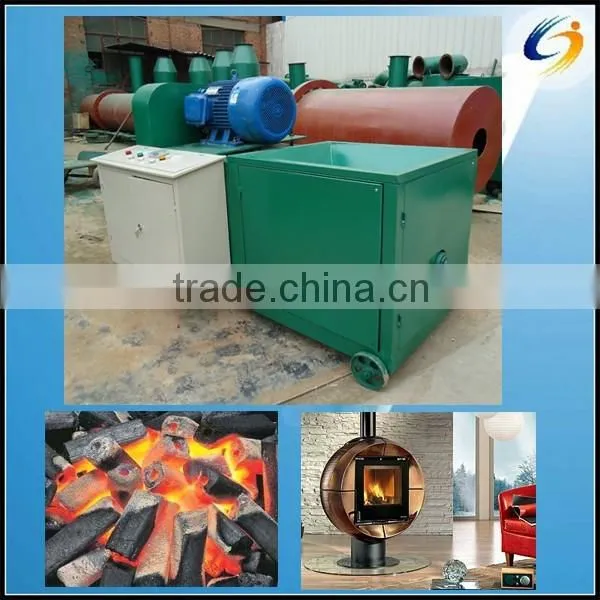

Description of the Briquette Machine From Sawdust

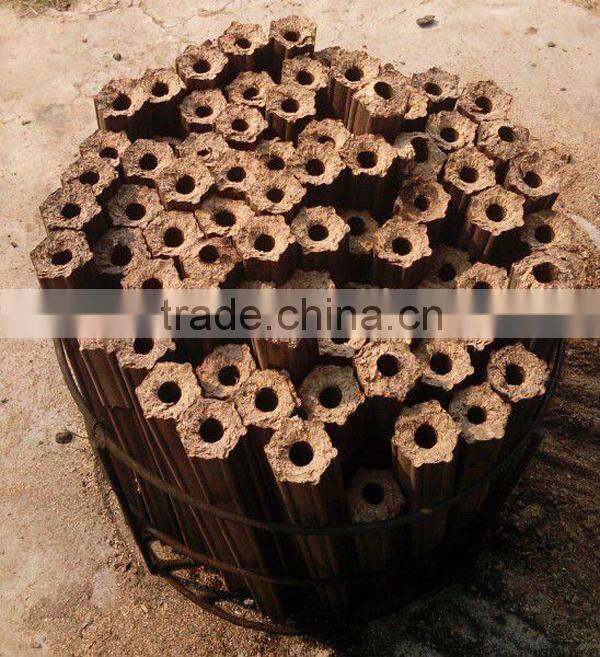

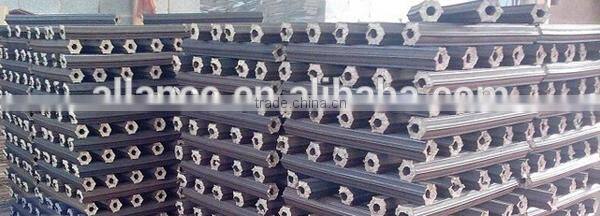

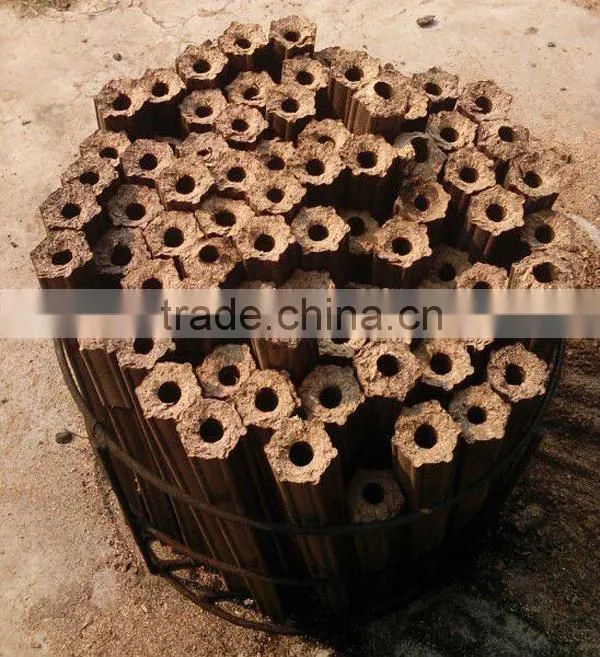

♥Our new Briquette Machine From Sawdust has a great improve in quality and capacity, which will prolong the working lives. The Briquette press can be used to extrude charcoal bar in different shape as hexagon, cylinder or quadrangle under high pressure and high temperature.
♥We don’t need to add anything into the sawdust, only the sawdust will be ok.
♥This new type Briquette Machine From Sawdust /charcoal briquette making machine has advantages of: Good performance, high production capacity and density, low power consumption, and wear. The final product also has high heat, no pollution, and longer burning time,
♥The shape of the charcoal can be plate, square, roll, triangle, cone etc. We can also customize the shape according to your requirement,
Structure of the Briquette Machine From Sawdust
1 hopper
2 heat insulation cover
3 heating circle
4 propellers
5 heating tube
6 taper sleeve
7 stents inner sleeve
8 stents
Material of the Briquette Machine From Sawdust
wood sawdust, waste sawdust, cotton stalk, coconut shell, rice husk, cotton stalk, bean stalk and other biomass material.
Material requirements for Briquette Machine From Sawdust
1. The ideal size was identified to be 3-5mm wood sawdust
2. Moisture Ideal level was 8%-12 %.
3.Wood sawdust ,wood waste, rice husk, leaves, coconut shell, peanut shell and so on.
Application of Briquette Machine From Sawdust
1. Machine made charcoals are widely used for family to get warm.
2. These charcoals are with large demands for barbecue international markets
3. It can display the coal and heavy oil to burn steam boiler in industry.
4. The charcoals can be chemical raw material to deep process activated carbon, carborundum, crystal silicon and so on.
Parameters of Briquette Machine From Sawdust
Model |
Power (kw) |
Capacity (kg/h) |
Packaging size (m) |
Gross weight (kg) |
Net weight (kg) |
ALC-NC50 |
15 |
160-200 |
1.7*0.66*1.5 |
600 |
500 |
ALC-NC80 |
18.5 |
250-300 |
1.9*0.8*1.8 |
750 |
680 |
ALC-NC80B |
22 |
300-400 |
2.1*0.8*1.8 |
960 |
900 |

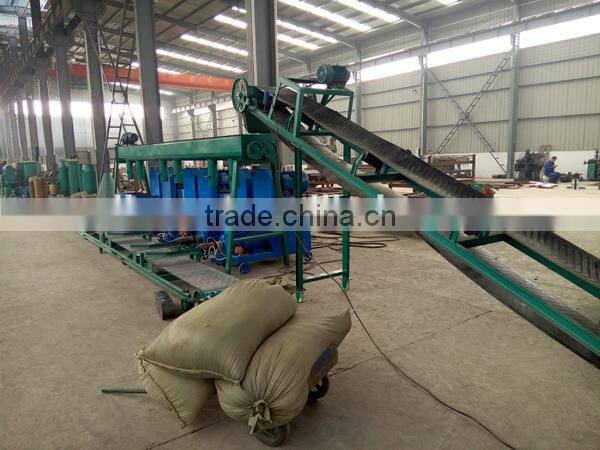

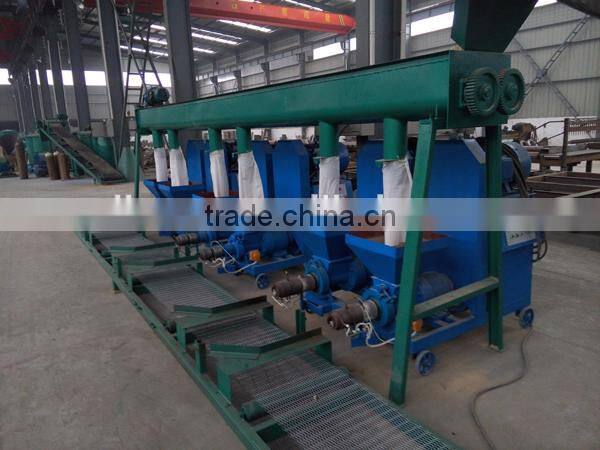

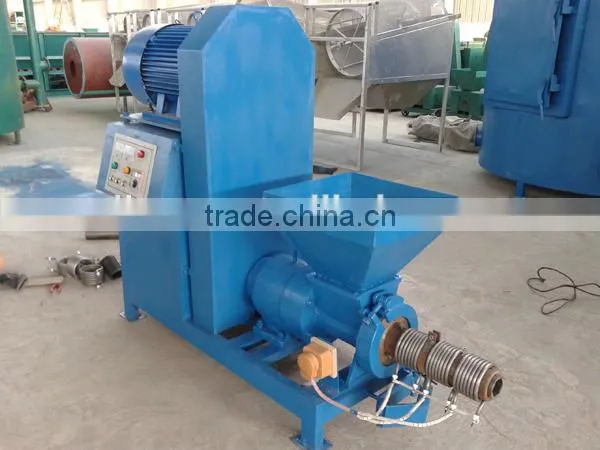

Photos of the Briqutte Machine From Sawdust
Payment terms:T/T;Western Union;Money Gram;Escrow,100% LC;Credit Card
Transportation: By sea, By air; Express(DHL/FedEx; Railway; Highway)
Packaging: Strong wooden case as exported standard
Delivery: 5-7 days for the charcoal making machine
Q: Raw material for the Briquette Machine From Sawdust?
A: All kinds of biomass waste, such as crop straw, wood sawdust, coconut shell , rice hull, bamboo sawdust, peanut shell, sunflowers shell, cotton stalks, sesame straw, furfural dregs, corn cob and shrubs broken branches, etc
Q: Requirements about the raw materal?
A: Ideal size should be 1-5mm, ideal moisture should be 8%-12%
Q: Conversion rate betwenn the material and charcoal?
A: Per Kilogram sawdust can make 0.4kg charcoal,
Q: what kind capacity do you have?
A: 150-200kg/h; 250-300kg/h; 300-400kg/h; 1Ton/h etc
Q: The diameter of the briquette can be?
A: 50mm; 60mm; 70mm; 80mm
Q: Shape of the briquette can be?
A: Hexagon; Octagon; Quincunx; Square; Triangle; Square
Q: I want to purchase the Briqutte Machine From Sawdust, how can i do?
1>Confirm model you need with us;
2>Give us your consignee information,
3>Make and send you the proforma invoice, at the end of the invoice you will find our bank information, arrange prepayment
4>After we receive the prepayment, we will arrange production or delivery for you, that’s all!
Why us?
1, Manufacturer and factory, more than 10 years experience, professional design, excellent quality!
2, Customize suitable machine as your requirement!
3, Product variety
4, Advanced technology and engineer
5, High working efficiency from inquiry to finish order: Fast delivery
6, Answering your hesitation and question in time
7, Overseas installation, commissioning; trainning
8, Long time guarantee:1-3 years

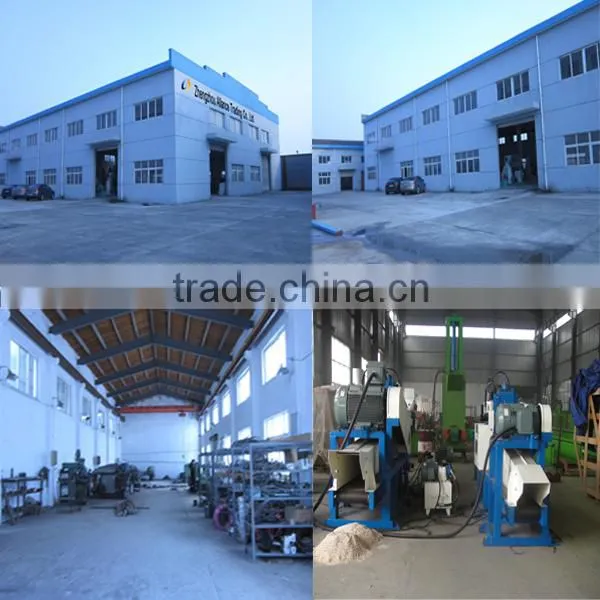

Company introduction:
Established in 2004, Zhengzhou Allance Trading Co., Ltd. is a professional manufacturer and exporter, which is concerned with the design, development and production of biomass machines especially on Charcoal Briquette Machines, Wood Pellet machines etc. All of our products comply with international quality standards and are greatly appreciated in a variety of markets around the world. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, Europe, South America, Asia and Africa.
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients around the world in the near future!
