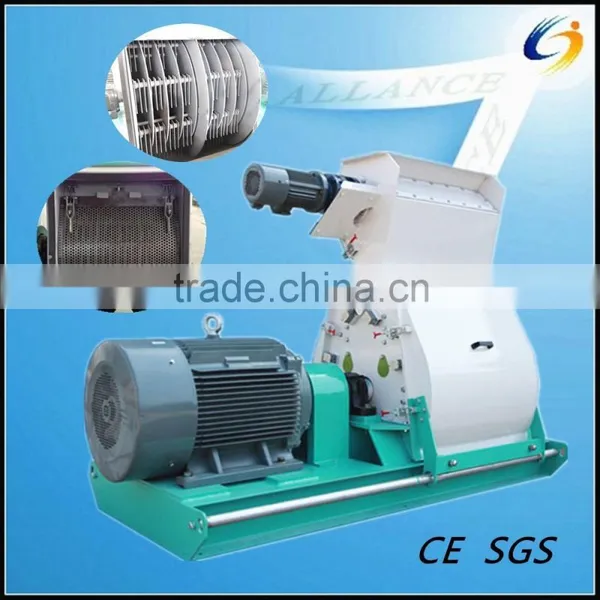

Large capacity 1-5t/h imported bearing stainless steel rice husk grinding machine for biomass pellet mill
Introduction
Rice husk grinding machine/ Wood hammer mill is used to crush materials into smaller and uniformed pieces by the collision between the high-speed hammer and materials. It is more suitable for milling relatively soft raw material like tree branch, cotton stalk, corn stalk, wheat straw etc. with diameter less than 40mm. After milled, the output size can reach diameter 3-5 mm, this is the elementary stage of biomass pellet production.This grinding machine we provide can be applied in various aspects. For example, it can also be used for shredding paper, milling grain, crushing large rock and other waste management.
Application
Rice husk grinding machine/ Wood hammer mill is popular with many industries and we recommand
it as well if you are considering biomass industry investment. Biomass fuel takes wood chips, wood sawdust,
peanut stalks, corn straws,rice husk and so on as materials and wood hammer mill can crush these materials
into 3mm-5mm wood materials for pellet mill use.
Features
1.Simple structure, high efficiency, low power consumption, clean convenient operation, labor and time saving.
2.Direct transmission is adopted. The reasonable arrangement of hammers and clearance between hammers and screen make sure the final products are in uniform fineness. The cutter is made of carbon tungsten alloy.
3.Double grinding tech.
4.The base has good rigidity and little vibration.
5.High quality imported SKF bearing . When working, it has low temperature rising, and it is equipped with temperature indicator which can show the working condition.
6.Quick-starting door opening device makes it fast to change the new screen,easy to operate, and convenient to maintan.
7.Thickening sieve. Sieve hole size is various for selection.
Technical Data
| Model | ALC-MFSB60 | ALC-MFSB80 | ALC-MFSB100 | ALC-MFSB120 |
| Capacity | 1--1.5t/h | 1.8--2.5t/h | 2.8--3.5t/h | 3.8--4.5t/h |
| Diameter of rotor | 660mm | 660mm | 660mm | 660mm |
| Width of chamber | 600mm | 800mm | 1000mm | 1200mm |
| Hammer QTY | 112 | 128 | 144 | 156 |
| Speed of rotor | 2980r/min | 2980r/min | 2980r/min | 2980r/min |
| Power | 55kw | 75kw | 110kw | 132kw |
MFSB wood hammer mill
SZW-A series hammer mill
SZW-B series hammer mill
SZW-C series hammer mill
SWFL series hammer mill
High quality carbon tungsten alloy Sieve & Cutters
1. Pre-sale upstanding service will be offered. welcome customers' consult with us for buying advice.
2. After-sale, we will provide professional and patient guidance to operate the machine.
3. On-time delivery. Delivery time: 15-20 days after deposit.
We have the cooperative forwarding company, they will choose the fastest and most economic transportation
mode according to customers' request.
4. One year Warranty. Spare parts: within one year warranty, replace the damaged parts free of charge. From next year, a favorable price can be offered for the spare parts.
