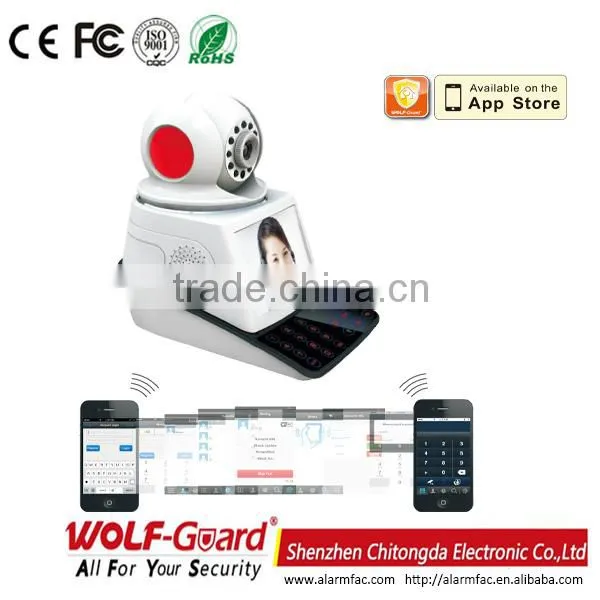

3C04 Wifi Video IP Motion Camera For Home Security Support 10 Languages
US$ 45 - 85
MOQ: 50 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Wolf Guard
Model Number:
3C04
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2015 New Product! Wireless IP Camera With APP ControlNegotiableMOQ: 1 Set -
306AX Wifi Video 1 Wired 64 Wireless Camera and Alarm SystemUS$ 45 - 85MOQ: 50 Sets
-
Wireless Gsm Mini IP Camera Support IPhone, Ipad, Android Phones(YL-IPC401B)US$ 45 - 55MOQ: 1 Set
-
Wifi ip Security Camera With APP Control and Alarm FunctionUS$ 20 - 50MOQ: 1 Set
-
Wireless IP Camera Alarm for Outdoor Use YL-IPC901BUS$ 60 - 80MOQ: 10 Units
Place of Origin
Guangdong, China
Brand Name
Wolf Guard
Model Number
3C04
Type
IP Camera
Style
Dome Camera
Sensor
CMOS
Technology
NetWork
Special Features
Other, wifi
3C04 Wifi Video IP Motion Camera For Home Security Support 10 Languages
Technical Parameters:
| System | Main processor | High Performance Embedded Microprocessor Hi3507 | |||||
| Operating system | Embedded Linux OS | ||||||
| Video | Image sensor | 1.3 Megapixel professional-type illumination CMOS sensor | |||||
| Video Compression Format | H.264 | ||||||
| Signal System | PAL/NTSC | ||||||
| Video Resolution | VGA:640*480 | ||||||
| Recording Speed | VGA@ 25 fps or 30 fps | ||||||
| Motion Detection | YES | ||||||
| Minimum illumination | 0LUX/F1.2 | ||||||
| Video call | YES | ||||||
| IR | YES | ||||||
| Video output | BT656/3.5 inch TFT LCD | ||||||
| Audio | Compression | G.711A | |||||
| Audio Input | Built-in microphone or an external headset | ||||||
| Audio Output | Built-in speakers or an external headset | ||||||
| Recording Manager | Recording Mode | Manual/Timer/Motion / Schedule | |||||
| Video Storage | USB,Micro SD | ||||||
| Alarm | Alarm Input | Learning wireless sensor alarm input | |||||
| Alarm triggered | Speakers alarm,Alarm recording,Capture,Email | ||||||
| Others | Ethernet Interface | RJ45 100M / 1000M Base-TX | |||||
| USB | 1* USB 2.0 | ||||||
| TF | 1*TF | ||||||
| Wifi | YES,802.11 b/g/n | ||||||
| Headset | One 3.5 headphone jack | ||||||
| Power Supply | DC 5V 2A | ||||||
| PTZ Control | Built-in horizontal and vertical control motor | ||||||
| Power Consumption | 2W | ||||||
| Working Temperature | 0°C-+55°C | ||||||
| Working Humidity | 10%-90% | ||||||
| Dimensions (mm) | 150*95*160mm | ||||||
| Weight | 1200g | ||||||
Installation:
how to download a app ,how to handle it ?
1.first : pls enter ur IOS or Android store search "NVAS" , down load it .
2.then:registered it with ur phone No. or Mail add.
3.add our test model as contactor ,No."12594" password:"123"
4.send a remote monitoring video or remote experience the function.
how to code alarm accessories with this model ?
1.pls install the alarm system as the user manual .
2.find code function on ur app. choose one defence zone .
3.trigger the wireless alarm sensor at the same time .
4.after a sound "D~" the sensor had been code with the alarm host .
1.first : pls enter ur IOS or Android store search "NVAS" , down load it .
2.then:registered it with ur phone No. or Mail add.
3.add our test model as contactor ,No."12594" password:"123"
4.send a remote monitoring video or remote experience the function.
how to code alarm accessories with this model ?
1.pls install the alarm system as the user manual .
2.find code function on ur app. choose one defence zone .
3.trigger the wireless alarm sensor at the same time .
4.after a sound "D~" the sensor had been code with the alarm host .
Standard package:
alarm host*1pcs
alarm host*1pcs
remote control*1pcs
door control sensor*1pcs
3C card*1pcs
