disc animal feed mill/poultry waste grinder/disc fertilizer blender

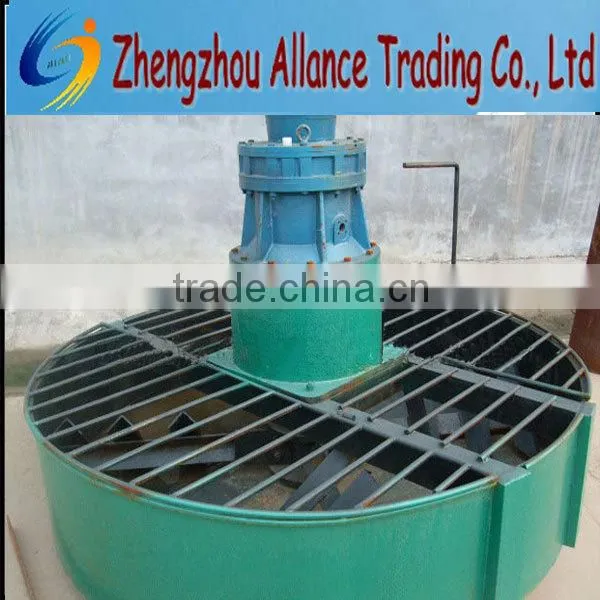

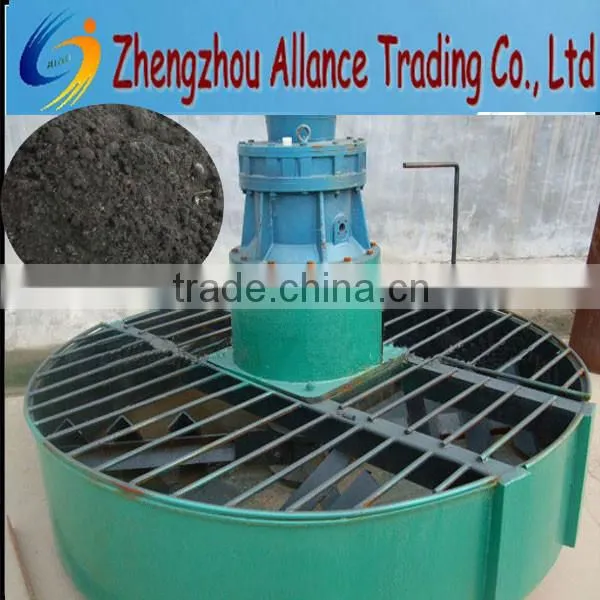

Fertilizer Vertical Mixing Machine Introduction

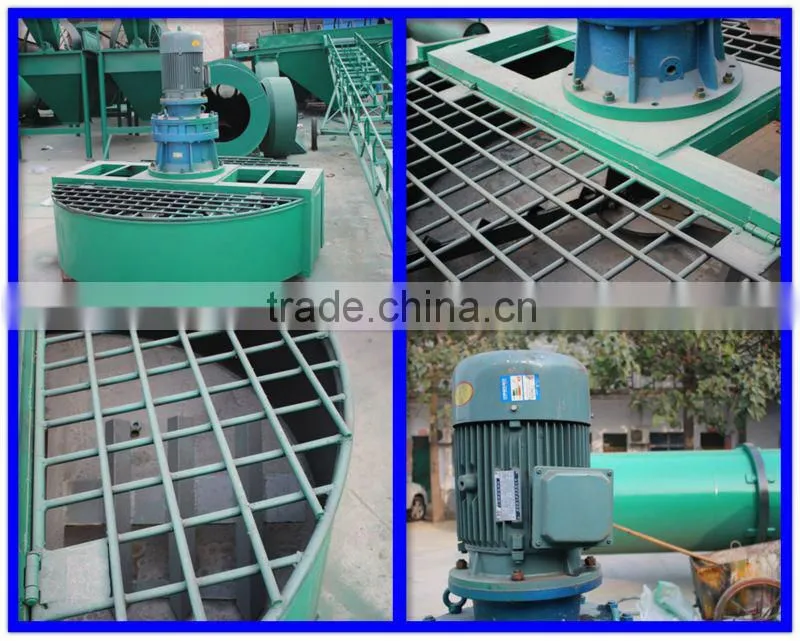

Vertical mixing machine is the most widely applied blending equipment in mixing and crushing bulk powder materials such as chemical powder, building clay, putty powder, mortar, slag, feed powder, coating and fertilizer, etc. Fertilizer mixing machine offered in Allance can be divided into vertical type and horizontal type mixing machine.Vertical mixing machine is composed of feeding cylinder, main mixing shaft, machine rack, motor, cycloidal reducer, rotating arms and stirring spades, etc. The motor is installed vertically and that’s why we call it vertical mixing machine. Vertical mixing machine rack is fabricated with abrasion resistant steel and on inner side liner PVC plate is equipped to prevent particles sticking.
Fertilizer Vertical Mixing Machine Technical Data
Model | ALC1500 | ALC1800 | ALC2000 | ALC2200 | ALC2500 |
Pan diameter | 1500mm | 1800mm | 2000mm | 2200mm | 2500mm |
Pan height | 500mm | 500mm | 500mm | 500mm | 500mm |
Rotary speed | 12r/min | 10.5r/min | 10.5r/min | 10.5r/min | 9r/min |
Power | 5.5kw | 7.5kw | 11kw | 15kw | 17kw |
Capacity | 3-5t/h | 5-7t/h | 7-9t/h | 9-11t/h | 12-16t/h |
Dimension | 1500*1520*1368 | 1800*1820*1368 | 2000*2220*1368 | 2200*2240*1503 | 2500*2520*1653 |
Vertical Mixing Machine Advantages
1. Robust structure, which is fabricated with abrasion resistant steel, wear resistance, durable.
2. Rational design and configuration. PVC plate padded to prevent sticking the inside liner.3. Cycloidal reducer, high speed and efficiency, energy saving.
4. Average mixing and crushing, easy to operate and discharge materials.
5. Can either work independently or matched with fertilizer plant.
How a Vertical Mixing Machine Works

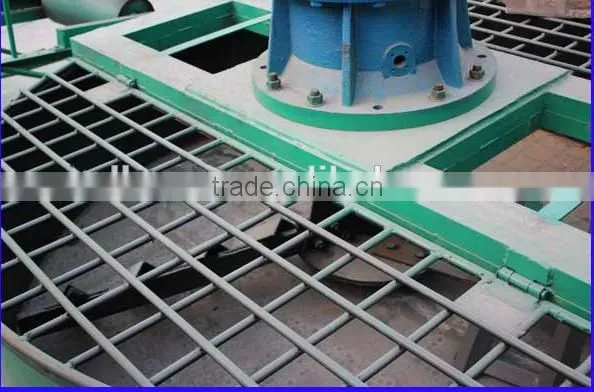

The whole mixing process is driven by the main shaft after starting the motor. There are several stirring spades welded on the main shaft and small shovels are set on each stirring spade. Feed the fertilizers into the cylinder. It is the shovels and stirring spades that play the important role in blending materials homogeneously. Then open the discharging door to layout the averagely mixed fertilizers. As the material is not very humid, there is hardly stick on the stirring spades or shovels, thus it’s no necessary to clean the machine.
Established in 2004, Zhengzhou Allance Trading Co., Ltd. is a professional manufacturer and exporter, which is concerned with the design, development and production of Food machines, Pellet machines, Agriculture machines and Industrial machines. we have received ISO9001:2000 certification and other authority. As a result of our high quality products and outstanding customer service, we have gained a global sales network reaching North America, Europe, South America, Asia and Africa.We are looking forward to forming successful business relationships with new clients around the world in the near future
1.Q: Can you help to design the factory layout after confirm the order?
A: Yes,of course,we have professional engineers service for you.
2.Q: How long is the product warranty period?
A: The product warranty period is 12 months.
3.Q: Delivery time.
A: 7-20days
4.Q:Why choose us?
A: 1.)We have rich manufacturing experience, and we are professional and innovative in this field.
2.)We are customer-oriented and quality-focused.
3.)We do not pursue maximal profits.Mutual reciprocity and benefit is our everlasting goal.
5.Q:Where is your factory located?
A:It is located in the Zhengzhou city ,Henan province,China.
6.Q:About Installation & Training?
A:Our engineer will install and train workers for you overseas.
