Paste the Labeling Machine
- Shanghai
- T/T
You May Like
-
Cold Glue Labelling Machine, Wet Glue Labeler Machine Paste, Paste Labeling Machine
-
Automatic Label Pasting Machine, Label Pasting Machine
-
Vertical Non-dry Adhesive Automatic Labeling Machine
-
Barcode Sticker Machine
-
Non-dry Sticker Labeling Machine for Glass Bottle
-
Labeling Machine With Double Head for Vodka / Brandy / Whisky Bottles
Product Details
| Condition | New | Application | Commodity, Food, Medical, Textiles | |
| Packaging Type | Bottles | Packaging Material | Glass, Metal, Plastic, Wood | |
| Automatic Grade | Automatic | Driven Type | Electric | |
| Voltage | 220V | Power | 1500W | |
| Place of Origin | Shanghai, China | Brand Name | Xiaoteng | |
| Model Number | XT-80 | Dimension(L*W*H) | 2100X950X1000(mm) | |
| Weight | 200kg | Certification | ISO9001 | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

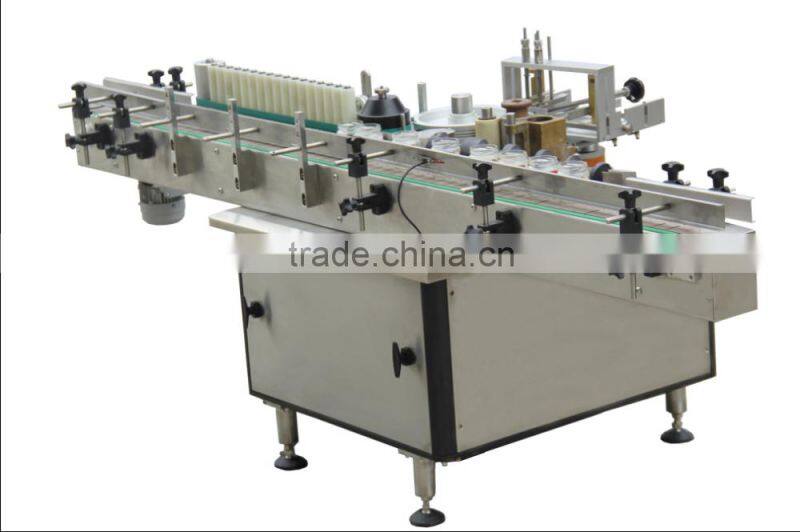

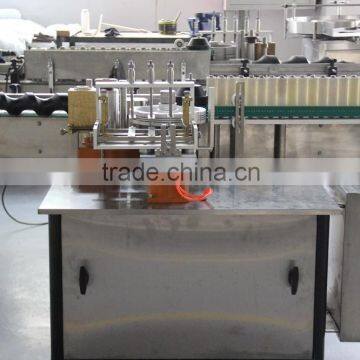

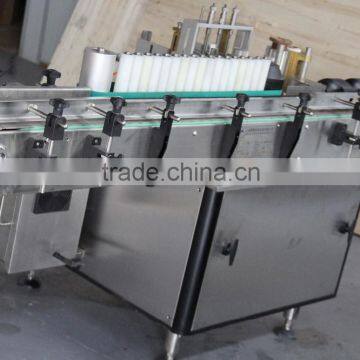

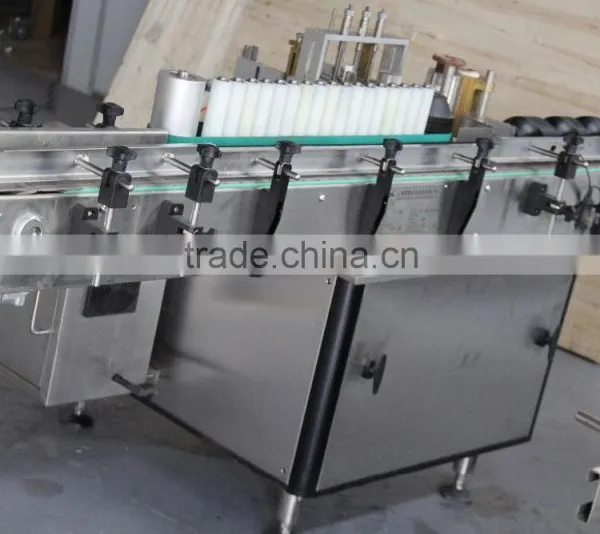

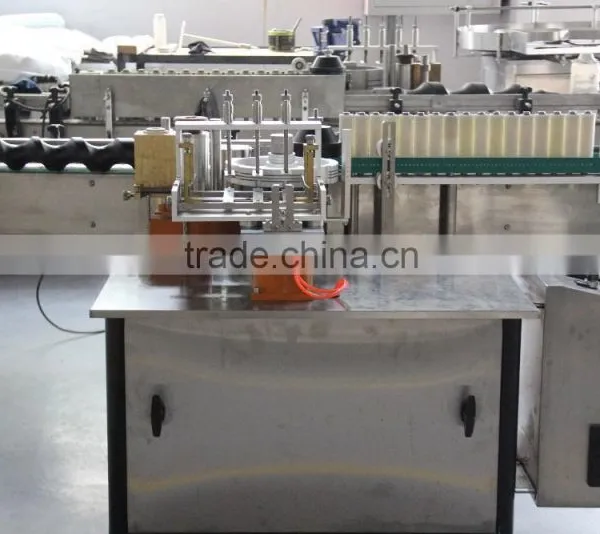

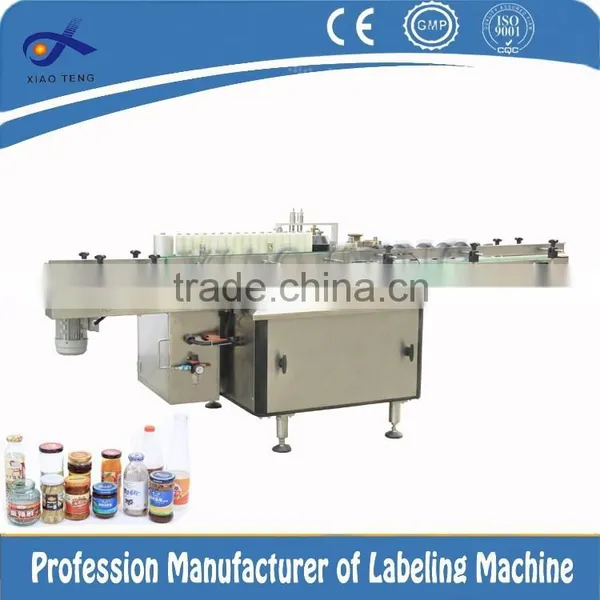

paste the labeling machine
main features:

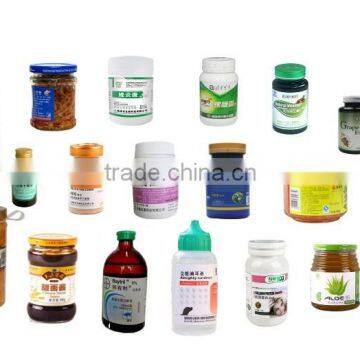

Applicable to label a whole curved surface or half curved surface on rotundities produced by medicine, food, agrochemical and other industries
Operating principle
Designed aiming at round bottles in all sizes
When it is running, the pasting-pole with a label will take some resin adhesive and then the label box convey a label to turret, and after rotating the label will be absorbed to vacuum belt and pasted onto bottles.
Features
The complete machine is made of 304 stainless steel and advanced aluminum alloy, which is artistic and elegant and in accord with the production reguirements of GMP.
This machine finishes the works of dividing papers, conveying, taking paste, labeling and label -pressing, which promotes the labeling efficiency greatly.
The amiable and advanced touch human-computer interface which is easy and intuitionistic to operate has complete functions including abundant on line help.
The bottles are conveyed into mechanism by screw, run stably, and are located reliably. The use of rubbing and rolling mechanism ensures a reliable paste between label and bottles, which is equipped a protector to ensure stopping delivery, taking paste and labeling without bottles there.
There is a precision process that the paste is well-distributed and the gelatinized paste thickness can be adjusted according to demands, which avoid omitting or wasting paste under cooperation of the glue box made of high purity copper and idler wheel made of stainless steel.
The purpose made rubber idler wheel is processed within several steps which will not transform and has a wear resistance; the paste is well-distributed and thin with a saving of that.
Intelligent control and automatic photoelectric tracking with fuctions of cancelling labeling work without objects in use, autocorrection without labels in the machine and label automatic check to avoid omitting or wasting labels
The labels are absorbed by vacuum and pasted smoothly onto bottles under the cooperation of belt.

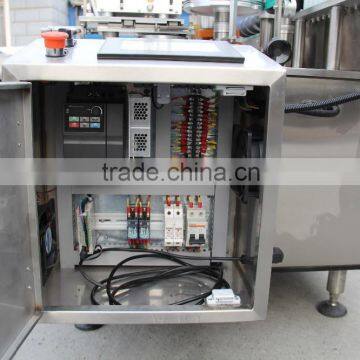

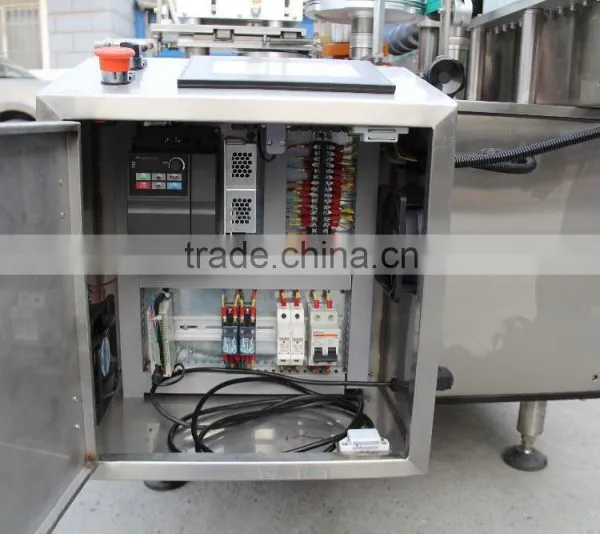

The running speed of motor can be adjusted freely with the use of frequency converter so as to control the labeling capacity freely.
This machine can work solely or be connected with production line.
It can be washed easily and speedy with a separate design among glue box, pasting idler wheel and turret.
The complete machine has good quality such as better stability, long service time and low maintenance ratio with the adopting of world famous electrical configurations. It could be adjusted with a stepless speed regulation according to the demands of labeling speed, feeding speed and separating bottles.
It’s easy and fast to be adjusted to meet the demands of all kinds of standards of bottles only with having the turret, vacuum belt and a few of other components changed and avoid the man-made adjustment factors to the hill.
Other choosable functions:
1. loading materials automatically;
2. receiving materials automatically;
3. conveyor lengthened;
4. material- receiving platform;
5. a customization for single-end or double-end labeling meeting high speed single face labeling or double-faced labeling;
6. other custom-made functions according to clients’ demands.
technical parameters:
Model / technical parameters | XT-80 |
Labeling capacity(pcs/min) | 60-100 pcs/min |
Labeling accuracy(mm) | ±1.0mm |
Label size(mm) | (L)50-130mm (H)40-110mm |
Adhesive | Polyvinyl acetate emulsion |
Machine size (mm) | (L)2400*(W)950*(H)1000(mm) |
Power supply | AC220V /380V 1500W |
We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
Exihibition show:
