Home > Products > Engraving machine > professional good sales advanced latest price list printing press
professional good sales advanced latest price list printing press
- 500 Set / Sets per Month
- Qingdao/Shanghai/Guangzhou
- T/T L/C D/P D/A Credit Card PayPal
Product Details
| Condition: | New | Place of Origin: | Henan, China | Brand Name: | ALLANCE |
| Model Number: | ALC8-SY | Usage: | Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Other, Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer, Glass/LCD LENS | Automatic Grade: | Semi-Automatic |
| Voltage: | 380v, 380v/50hz/3phase | Gross Power: | 2.1kw | Dimensions(L*W*H): | 1860*1400*1900(mm) |
| Weight: | 580kg | Certification: | CE, ISO, TUV, BV | Warranty: | 1 year, 1 year |
| After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
professional good sales advanced latest price list printing press
Characters of Silk Screen Printing Machine
1) Uses the imported (PLC) control circuit, light touch panel operation, sensitive operation, complete function, electrical components adopt international brand, product performance is stable, quality reliable.
2) Adopt double photoelectric switch control, safe and reliable.Precision cylinder ensures that the volume of the printing pressure and printing speed can be adjusted, so as to meet the printing requirements of different substrates.
3) High precision printing platform, scientific structure, air resistance is small, the vacuum adsorption force at work is strong, create adjustable printing platform, solving the difficult problems of adjusting substrates thickness.
4) Equipped with multiple protection system, ensuring safe operation
Application Scope
This silk screen printing machine is widely used in electronic appliances, advertising, packaging and printing, sports equipment, toys, stationery gifts, all kinds of transfer printing paper, all kinds of PVC, PET, PC, such as soft, hard, film, all kinds of plates, film, paper, nameplate, keyboard, instrument, glass, PCB flexible rigid circuit board, mobile phone lenses, electronic products, precision signs, all kinds of decal, all kinds of silicone buttons, advertising, decoration of high precision screen printing and a variety of different thickness of membrane, card, plate etc.
Technical Parameter List of silk screen printing machine
Model | ALC40 | ALC50 | ALC60 | ALC70 | ALC80 | ALC90 |
Printing area(mm) | 400*600 | 500*700 | 600*800 | 800*1200 | 700*1400 | 1000*2000 |
Platform size(mm) | 500*700 | 600*800 | 700*900 | 900*1300 | 800*1500 | 1100*1300 |
Max screen frame(mm) | 650*930 | 700*1100 | 850*1300 | 950*1630 | 900*1600 | 1350*2430 |
Accuracy of platform(mm) | ±0.05 | ±0.05 | ±0.05 | ±0.01 | ±0.01 | ±0.01 |
Printing Thickness(mm) | 30 | 30 | 30 | 30 | 30 | 30 |
Registering accuracy(mm) | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 | 0.01 |
Printing pressure(kg/cm2) | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Printing times/Hr | 1150 | 1050 | 950 | 850 | 850 | 700 |
Voltage/Power | 380v/2.1kw | 380v/2.45kw | 380v/2.45kw | 380v/4.15kw | 380v/4.5kw | 380v/5.6kw |
Weight of Machine(kg) | 380 | 450 | 500 | 580 | 630 | 750 |
Dimension of Machine(mm) | 1270*950*1630 | 1300*1000*1680 | 1500*1150*1680 | 1860*1400*1900 | 2060*1300*1900 | 2600*1500*1680 |

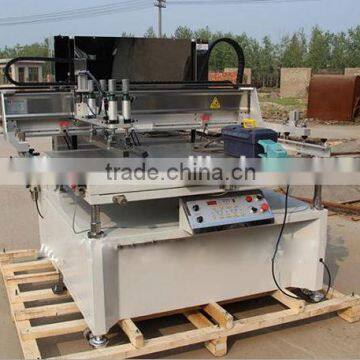

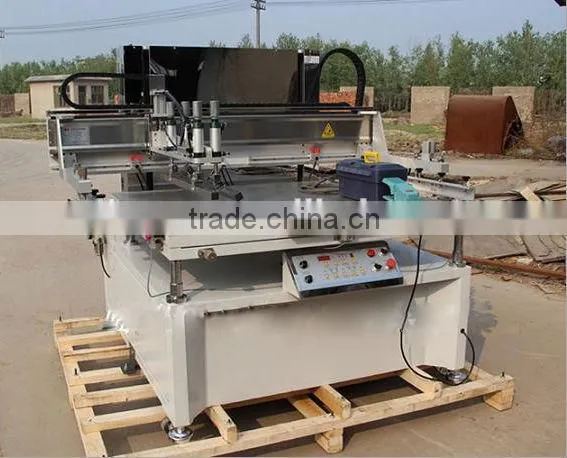

Detailed pictures
Imported Frenquency Converter
Scraper regulating system
Platform adjusting handle
Control panel
Tools
Payment terms & Delivery time
1) Payment: 40% deposit, the balance paid against the copy of B/L
2) Package: Standar exporting plywood case
3) Delivery time: within 15 working days after receiving your deposit
4) Warranty: 1 year, during this time if there is any broken we will offer spare parts and technical support for you.
