Product Details
| Condition: | New | Application: | Chemical, Food, Medical | Packaging Type: | Case |
| Packaging Material: | Wood | Automatic Grade: | Automatic | Driven Type: | Electric |
| Voltage: | 220V | Power: | 7.9kw, 7.9KW | Place of Origin: | Shanghai, China |
| Brand Name: | Xiaoteng | Model Number: | XT-SLX | Dimension(L*W*H): | Length of the line12.88m |
| Weight: | 2000KG | Certification: | CE, CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

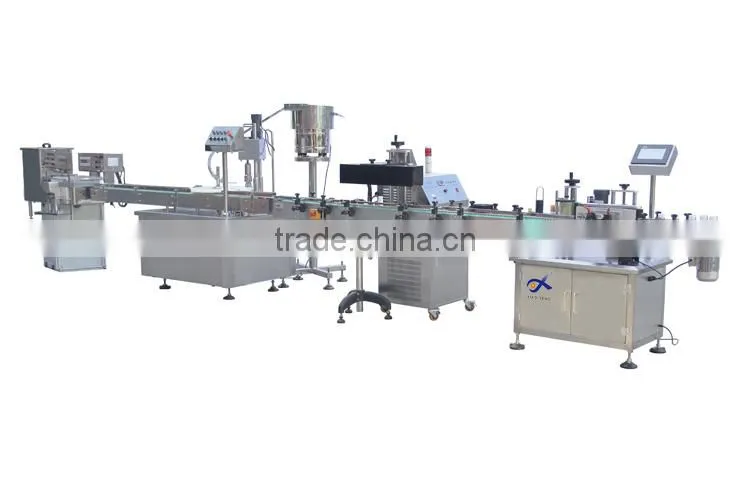

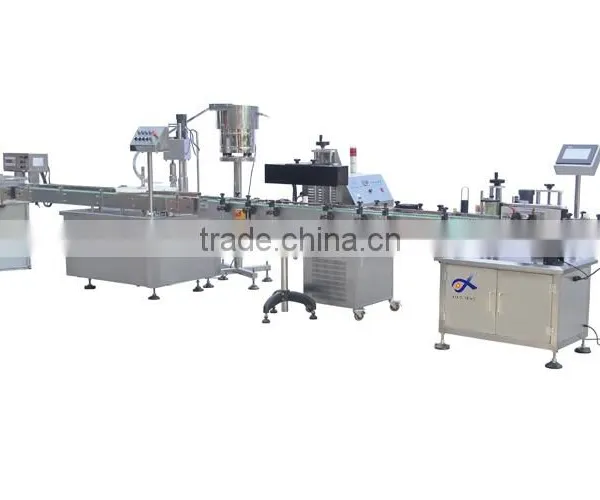

XT-SLX High speed electronic granules counting bottling production line
Introduction of equipment:
This production line based on the current domestic packing line adopts the design of separating the main machine from the conveyor belt. All the machines which connected by one conveyor belt gets over the problem of adjusting diffculty and turing over the bottle easily.The automatic rejection system for faulty products improves the production efficiency.Meet "GMP"requirements.
Technological process:
XLP-200 High-speed Bottle Unscrambler SJC-212 4D Multi-channel electronic Counting Machine BSZ-200 High-speed Paper Inserter XCX-200 High-speed Capping Machine KF-01B Induction Sealing Machine XTB-200High-speed Self-adhesive Machine
BP-200 is applied widely including tables,capsules,soft capsules and transparent products in different size which is one of earliest and most efficiency botting line in China.
Technical details:
| steady output | 110bottle/min |
| specificition of bottle | 15-250ml |
| voltage/frequency | 220V/50Hz |
power | 7.9kw |
| air pressure | 0.5-0.6MPa |
| air consumption | 0.4m3/h |
| length of the line | 12.88m |
We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
