Best Sale!!! High quality & low price automatic wooden engraving machinery
Applications of automatic wooden engraving machinery
1 . Furniture: plate, office furniture, doors, cabinets.
2 . Wood products: speakers, games cabinets, computer tables, sewing machines, musical instruments
3 . Board processing: plastic chemical components, PCB, ABS, PP, PE.
4 . Decoration: Acrylic, PVC, MDF, glass, plastic and soft metals such as copper and aluminium.
Performance features of automatic wooden engraving machinery
1. The whole body is steel structure, which could work stable with low vibration.
2. Z axis adopts Germany ballscrew, imported linear guide. High precision and durability.
3. X Y axis adopt rack gear with high speed, which could improve the efficiency and save cost.
4. Automatic oil-way lubrication system, easy to maintain.
5. Y axis adopts double-motor driving, which works stable without deformation.
6. Strong compatibility, which suits with any software, such as type3, Castmate, Pore, CAD/CAM software. It could make embossment, shadow sculptures, 3D art words, etc.
Technical parameters of automatic wooden engraving machinery
X Y Z Working Area |
1300*2500*150mm |
Platform Size |
3050*1500*750mm |
Frame Structure |
Whole steel structure |
Max Air Line Speed |
25000mm/min |
Type of Drive |
High-precision Rack |
XYZ Guide Rail |
Imported Linear Guide |
Work-holding |
Profiles, platen |
Motion Control System |
NC studio System |
Repeatability |
0.05mm |
Positional Accuracy |
0.05mm |
Engraving Tools |
3.175/4mm/6mm/8mm/12.7mm |
Interface |
USB |
Engraving Instruction |
|
Software Compatibility |
CNC, TYPE3, Artcam, JDpaint, MasterCAM, Pro-E,UG etc. |
Voltage |
220V/50Hz (optional: 380V) |
Spindle Power |
3.0kw |
Spindle Rev. |
0-24000rpm |
Drive System |
Stepper/Servo |
Lubrication System |
Manual oiling |
Size |
3100*1800*1400mm |

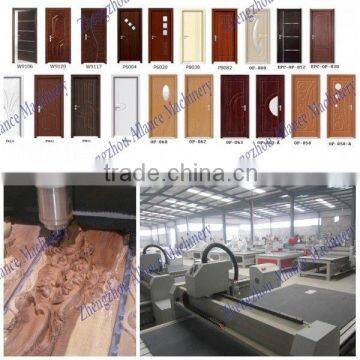

The pictures of automatic wooden engraving machinery
Package & Warranty of automatic wooden engraving machinery
Warranty: one year.
Zhengzhou Allance company will offer you the best technical support.
Package: standard export packing.
Please feel free to contact with me if you are interested in the automatic wooden engraving machinery. Thanks very much!
The detailed information will be offered you according to your requirements.
