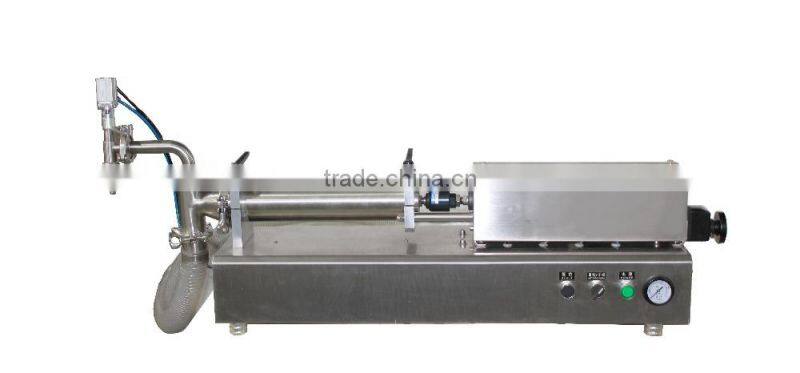

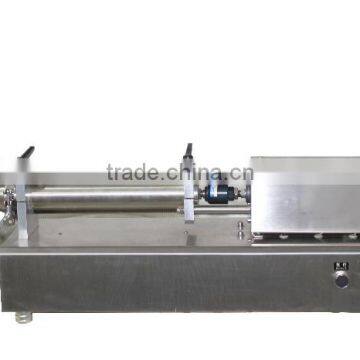

XT-TGT-YL Manual liquid filling machine
Features:
1. This machine is semi-automatic liquid filling machine.
2. Machine is all made from stainless steel and material-touching parts 316 stainless steel, which is according to GMP performance standards.
3. Sealing elements adopt silicone rubber (wear proof, heat resisting, acid and alkali resisting, corrosion resisting) and flour rubber (wear proof, acid and alkali resisting, corrosion resisting).
4. Pneumatic elements adopt overall FESTO from Germany and AIRTAC from Taiwan.
5. Filling volume and filling speed can be adjusted at will within the scope of permission.
6. It is easy and accurate to set manual or automatic running method, and is easy to maintain and wash.
7. It is appropriate for products with little volume but many standards.
Technology parameters:
Model | Filling range | Filling speed (times/min.) | Gas consumption | Power supply and voltage | Boundary dimension(mm) | Net weight |
XT-YL/100 | 10-100ml | 15-45 | 100L/min | 220V 50Hz | 1000x500x1200 | 35kg |
XT-YL/250 | 30-250ml | 10-40 | 120L/min | 220V 50Hz | 1000x550x1250 | 40kg |
XT-YL/500 | 100-500ml | 10-30 | 210L/min | 220V 50Hz | 1100x550x1300 | 45kg |
XT-YL/1000 | 200-1000ml | 10-25 | 315L/min | 220V 50Hz | 1300x700x1350 | 50kg |
XT-YL/2000 | 500-2000ml | 5-15 | 405L/min | 220V 50Hz | 1650x700x1350 | 65kg |
XT-YL/5000 | 1000-5000ml | 5-15 | 450L/min | 220V 50Hz | 1700x750x1400 | 80kg |
We Provide
Best products and factory price.
On-time delivery and the shortest delivery time.
1-year warranty. If our products cannot function properly within 12 months, we'll offer spare parts for free; and you need to pay for the delivery.
OEM and customized service.
User manuals will go with relative machines.
Service
QC: All products will be checked before delivery.
Compensation: If any unqualified product is found, we'll pay the compensation or send new qualified products to customers.
Maintenance & Repair: In case of any maintenance or repair need, we'll help to find out the problem and offer relative guidance.
Operation Guidance: If you have any problem with operation, please feel free to contact us.
Sample room:
| Contact: |
| Sales:Adair Wang |
| Tel:+86 189 3082 2485 |
| Email:xiaoteng24@shxiaoteng.com |
| Skype: xiaoteng24@shxiaoteng.com |
| Shanghai Xiaoteng mechanical and electrical equipment Co.,Ltd |
| Address:No 3500,Jinhai highway,Nanqiao town,Fengxian district,Shanghai China |
