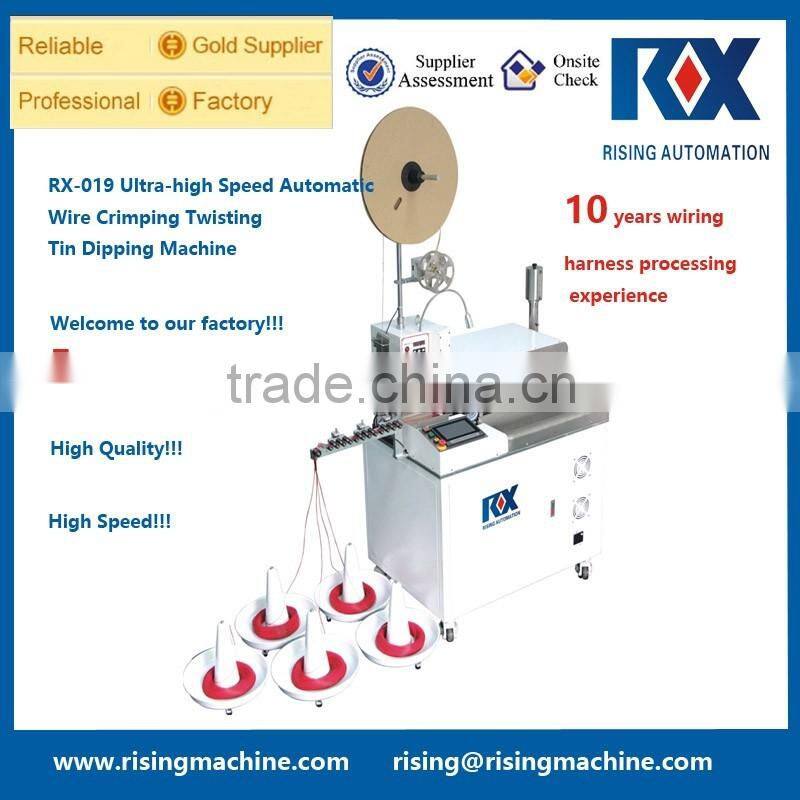

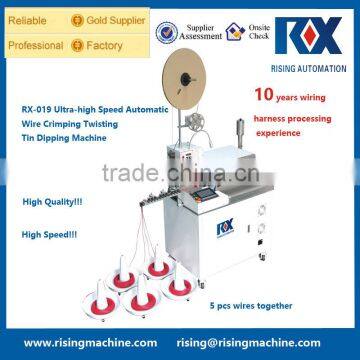

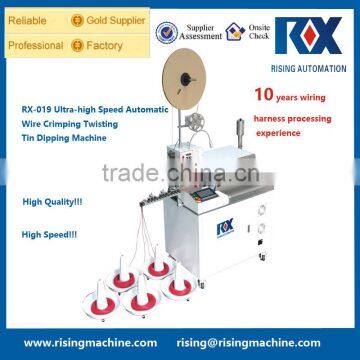

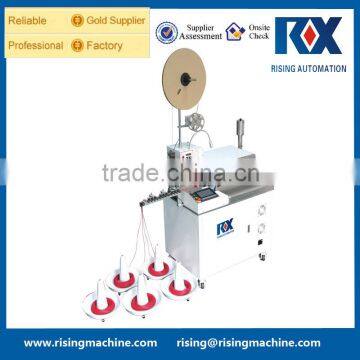

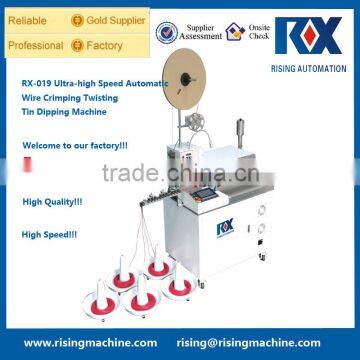

RX-019 Ultra-high Speed Automatic Twisting Tin Dipping Wire Cutting and Stripping Crimping Machine
RX-019 Ultra-high Speed Automatic Wire Crimping/Twisting/Tin Dipping Machine (single pressure single tin dipping)
NEW PRODUCT NEW TECHNOLOGY
6000 pieces/hour ultra short wire shortest 8mm
Features:
1.Computer adjust the blade, no need the gasket.
2.KINCO 7 inch operating screen, English display
3.The pneumatic components:AirTac,MINDMAN
4.Temperature control table:Omron
5.Motor:high speed stepper machine
6.Screw rod,guide rail: HIWIN
7.Digital display pressure detection
A:Using high-speed stepper machine, precise,efficient and stable
B:Adjusted by touch screen, including: wire length,opening length,half strip length,tightness of twisted wire, twisted wire length, dip tin length etc, complete by one button click.
C:It can detect the low atmospheric pressure,cylinder and motor abnormalities, count inconsistencies, etc. It will automatically stop if there is an exception,and show the condition on the human-computer interface,fix the breakdown rapidly more expediently,minimize project down-time.
D:The best advantage is technical adjustment fast,adjustment time short,operation simply.
E:Touch screen to adjust the position of the crimp terminal, more precisely and steadily.
Specifications:
Model |
RX-019 ultra-high speed automatic wire crimping/twisting/tin dipping machine (single pressure single tin dipping) |
Power |
AC220V 50/60Hz (single-phase) |
Function |
Wire Cutting, single stripping, double stripping, single crimping, half crimping half stripping, single twisting, single tin dipping |
Processing capacity |
6000pcs/hour (wire length within 200mm) |
Applicable wire range |
AWG#32-AWG#20 |
Wire length processing range |
8mm-350mm |
Cut-off precision |
Tolerance:1mm+cutting length 0.1% |
Opening length |
0-7mm |
Twisting length |
3mm-7mm |
Dipping length |
0.5mm-7mm |
Air pressure |
5-6kgf (must use clean dry air) |
Measurement |
680W×1280L×1300H(mm) |
Weight |
408kg |
ShenZhen Rising Automatic Equipment Limited Company was founded in China's reform and opening period, our Company and Shenzhen became the world electronics manufacturing center of large wave. Experienced more than ten years,We established Ruize Machinery Factory in Nanyang city,Henan province. Producing and assembling automatic wiring harness processing equipment. We also established the DongGuan RuiXin Automatic Equipment Limited Company,take charge of the production,assembling automatic wiring harness processing equipment.As our business developed these years, we established Shenzhen Qihua Wire & Cable Co.,Ltd to cooperate with the whole company group,control the equipment testing and rectification.
Nowadays,our company group became top manufacturer in wire processing industry.We have the most professional technicians, strong creative independent research and development , produced the wire end processing equipment, automated wire processing equipment, integrated harness manufacturing system more than 30 kinds. And we can according to customer requirements,to develop and assembling the various of standardization harness processing equipment.
--Is Rising a machine manufacturer?
Yes,we have over 10 years experience in wire harness processing.
--Does Rising use advanced machine parts in the world ?
Yes,we brought and integrated advanced technology from Japan,Occident,and Taiwan area.
--How long will Rising take in delivering?
About 25 working days after receive the deposit.Some of the product less than 15 working days.
--About payment terms after take orders in Rising?
30 % advanced payment by T/T,L/C,Money Gram,West Union,negotiation.
--About warranty period?
We are committed to offer about 2000 hours after delivery or 1 year free warranty (not including wearing parts) ,we can provide door-to-door service,We promise offering life-long maintenance for the products we sold.
--About online technology support?
We are currently preparing the online customer service platform, to solve the customer's problem through online audio and video chat.
---Purchase guidance
If you are not sure which model is the best option within you budget, please send us the parameter or wire, it’s our pleasure to make a recommendation and comparison models to you.
---After Sale Service
Don’t worry, we are here to help. Rising provides life time after sale support to our customers including operation guidance, parts replacement, maintainance support. Just feel free to contact us!
--- Technical Support
In some cases, professional technical support will be needed , such as parameter meter set-up for difficult-to process wires. Rising engineers are here for your assistance.
---OEM
Rising provides OEM services to our customers.

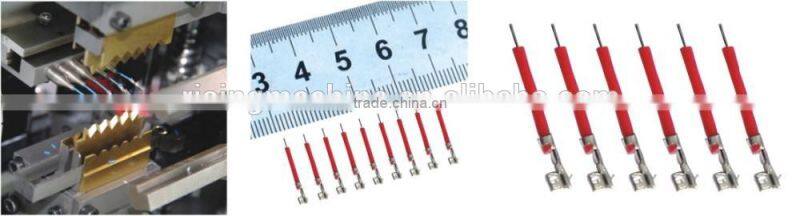

Sample wires
Stripping effect
