Home > Metallurgy, Mineral & Energy > Steel & Products > Steel Angle > Hot Rolled Carbon Mild Astm A36 Q235 Ss400 Steel Angle

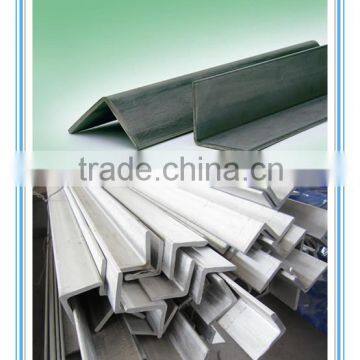

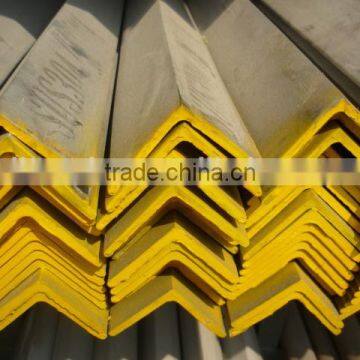

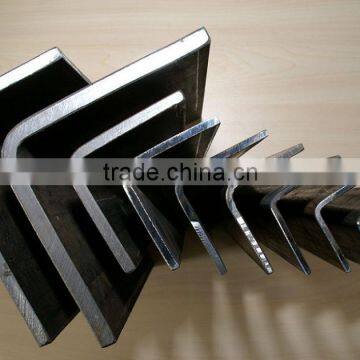

Hot Rolled Carbon Mild Astm A36 Q235 Ss400 Steel Angle
US$ 2000.00 - 2000.00
MOQ: 1 Ton
Key Specifications
Get Latest Price
Standard:
AISI, ASTM, BS
Dimensions:
20*20*2mm)-(200*200*25mm)
Grade:
Q195-Q420 Series
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
ASTM Standard 400 Series Stainless Steel SheetUS$ 800.00 - 800.00MOQ: 1 Ton -
Stainless Steel Cone TubeUS$ 2000.00 - 2000.00MOQ: 1 Ton
-
Stainless Steel Octagon PipeUS$ 2000.00 - 2000.00MOQ: 1 Ton
-
The 316 Stainless Steel Cone TubeUS$ 2000.00 - 2000.00MOQ: 1 Ton
-
Stainless Steel Triangular PipeUS$ 2,000 - 4,000MOQ: 1 Ton
Standard
AISI, ASTM, BS
Dimensions
20*20*2mm)-(200*200*25mm)
Grade
Q195-Q420 Series
Place of Origin
Jiangsu, China
Brand Name
jirunxing
Model Number
Q235/Q345/SS400/S235/S275
Type
Equal
Application
Construction
Product Description
| ss400 steel angle standard | AISI, ASTM, BS,DIN,GB,JIS |
| ss400 steel angle grade | A36, SS400, Q235, Q345, S235,S275 |
| ss400 steel angle | 25*3-200*20 |
| ss400 steel angle length | 6-12m |
| ss400 steel angle technique | Hot rolled steel angle |
| ss400 steel angle tolerance | As the standard or as your requirement |
| ss400 steel angle surface treatment | Galvanized, paint |
| ss400 steel angle application | Metal structure, bridge, machiner, shipbuilding industry |
| ss400 steel angle certificated | BV |
| ss400 steel angle packing details | standard export packing or as your requirement |
| ss400 steel angle MOQ | 25 tons |
| ss400 steel angle delivery | Within 25 days after deposit |
| ss400 steel angle Payment | T/T or L/C |
| equal angle bar (A*T) | |||||
|
Size (mm) |
Theoretical weight (kg/m) |
Size (mm) |
Theoretical weight (kg/m) |
Size (mm) |
Theoretical weight (kg/m) |
| 25*3 | 1.124 | 75*7 | 7.976 | 110*14 | 22.809 |
| 25*4 | 1.459 | 75*8 | 9.03 | 125*8 | 15.504 |
| 30*3 | 1.373 | 75*10 | 11.089 | 125*10 | 19.133 |
| 30*4 | 1.786 | 80*6 | 7.376 | 125*12 | 22.696 |
| 40*3 | 1.852 | 80*7 | 8.525 | 125*14 | 26.193 |
| 40*4 | 2.422 | 80*8 | 9.658 | 140*10 | 21.488 |
| 40*5 | 2.976 | 80*10 | 11.874 | 140*12 | 25.522 |
| 50*4 | 3.059 | 90*6 | 8.35 | 140*14 | 29.49 |
| 50*5 | 3.77 | 90*7 | 9.658 | 140*16 | 35.393 |
| 50*6 | 4.465 | 90*8 | 10.946 | 160*10 | 24.729 |
| 60*5 | 4.52 | 90*10 | 13.476 | 160*12 | 29.391 |
| 60*6 | 5.42 | 90*12 | 15.94 | 160*14 | 33.987 |
| 63*5 | 4.822 | 100*6 | 9.366 | 160*16 | 38.518 |
| 63*6 | 5.721 | 100*7 | 10.83 | 180*12 | 33.159 |
| 63*8 | 7.469 | 100*8 | 12.276 | 180*14 | 38.518 |
| 63*10 | 9.151 | 100*10 | 15.12 | 180*16 | 43.542 |
| 70*5 | 5.397 | 100*12 | 20.611 | 180*18 | 48.634 |
| 70*6 | 6.406 | 100*16 | 23.257 | 200*14 | 42.894 |
| 70*7 | 7.398 | 110*7 | 11.928 | 200*16 | 48.68 |
| 70*8 | 8.373 | 110*8 | 13.532 | 200*18 | 54.401 |
| 75*5 | 5.818 | 110*10 | 16.69 | 200*20 | 60.056 |
| 75*6 | 6.905 | 110*12 | 19.782 | ||
| Unequal angle(A*T) | |||||
| Size (mm) |
Theoretical weight (kg/m) |
Size (mm) |
Theoretical weight (kg/m) |
Size (mm) |
Theoretical weight (kg/m) |
| 25*16*3 | 0.912 | 75*50*8 | 7.431 | 125*80*7 | 11.066 |
| 32*20*3 | 1.171 | 75*50*10 | 9.098 | 125*80*8 | 12.551 |
| 32*20*4 | 1.522 | 80*50*5 | 5.005 | 125*80*10 | 15.474 |
| 40*25*3 | 1.484 | 80*50*6 | 5.935 | 125*80*12 | 18.33 |
| 40*25*4 | 1.936 | 80*50*7 | 6.848 | 140*90*8 | 14.1 |
| 45*28*3 | 1.687 | 80*50*8 | 7.745 | 140*90*10 | 17.475 |
| 45*28*4 | 2.203 | 90*56*5 | 5.661 | 140*90*12 | 20.724 |
| 50*32*3 | 1.908 | 90*56*6 | 6.717 | 140*90*14 | 23.908 |
| 50*32*4 | 2.494 | 90*56*8 | 8.779 | 160*100*10 | 19.872 |
| 56*36*3 | 2.153 | 100*63*7 | 8.722 | 160*100*14 | 27.274 |
| 56*36*4 | 2.818 | 100*63*8 | 9.878 | 160*100*16 | 30.853 |
| 56*396*5 | 3.466 | 100*63*10 | 12.142 | 180*110*10 | 22.273 |
| 63*40*4 | 3.185 | 100*80*6 | 8.35 | 180*110*12 | 26.464 |
| 63*40*5 | 3.92 | 100*80*7 | 9.656 | 180*110*14 | 30.589 |
| 63*40*6 | 4.638 | 100*80*8 | 10.946 | 180*110*16 | 34.649 |
| 70*45*5 | 4.403 | 100*80*10 | 13.476 | 200*125*12 | 29.761 |
| 70*45*6 | 5.218 | 110*70*6 | 8.35 | 200*125*14 | 34.436 |
| 70*45*7 | 6.011 | 110*70*7 | 9.656 | 200*125*16 | 39.045 |
| 75*50*5 | 4.808 | 110*70*8 | 10.946 | 200*125*18 | 43.588 |
| 75*50*6 | 5.699 | 110*70*10 | 13.476 | ||
Packaging & Shipping
| Packaging Details: | standard export packing or as your requirement |
| Delivery Detail: | within 25days after receiving deposit by T/T or L/C at sight |
