LNB
Features:
- Low noise figure
- Digital ready
- Low power consumption
- Easy installation
- High quality weather protection
Specifications:
|
Item |
Specification
|
Item |
Specification |
Input Frequency Range |
Low Band:10.70~11.70GHz |
L.O. Phase Noise |
-50dBc/Hz@1KHz |
Output Frequency Range |
Low Band:950~1950MHz |
Image Rejection |
40dB(Min.) |
Noise Figure |
Low Band:0.6dB(Typ.) |
Output VSWR |
2.0:1(Max.) |
Conversion Gain |
60dB(Typ.) |
Output Power |
0dBm (Min.)(at 1dB gain |
Gain Flatness |
±0.5dB/26MHz |
Connector Type |
75Ω Female Connector |
Cross POL. Isolation |
25dB(Typ.) |
DC Current Consumption |
80mA(Typ.) |
L.O. Frequency |
Low Band:9.75GHz |
Low/High Band Switching |
Low Band:0Hz |
L.O. Frequency Stability |
±1.0MHz (Max.)@+25°C |
POL. Switching Voltage |
10.5~14.0V @VP |
Operating Temperature |
-30°C~+70°C |
|
|

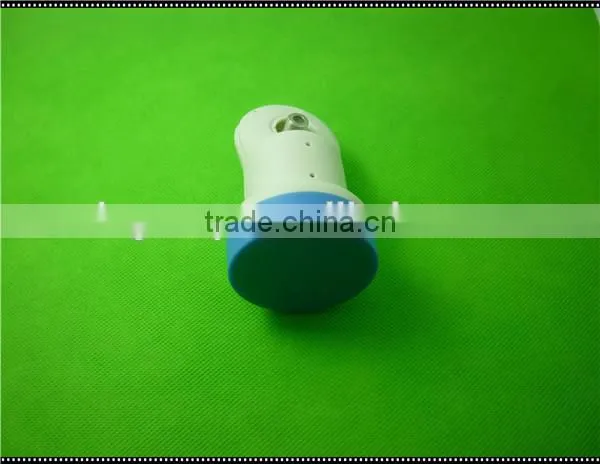

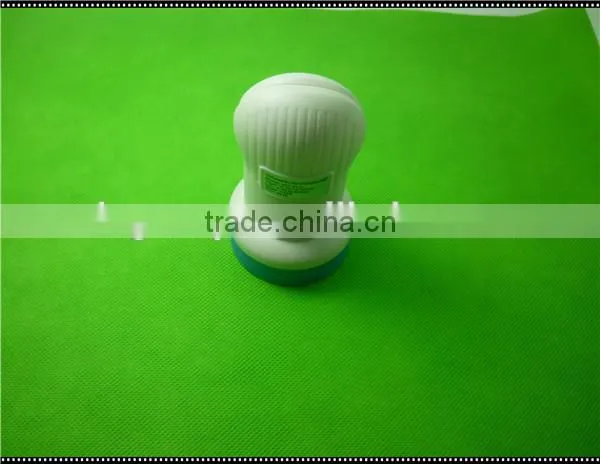

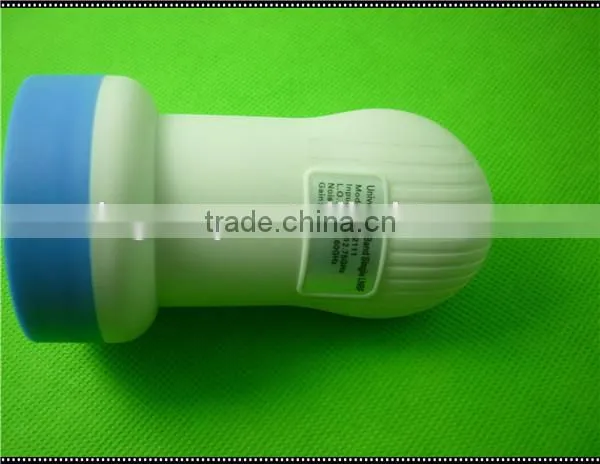

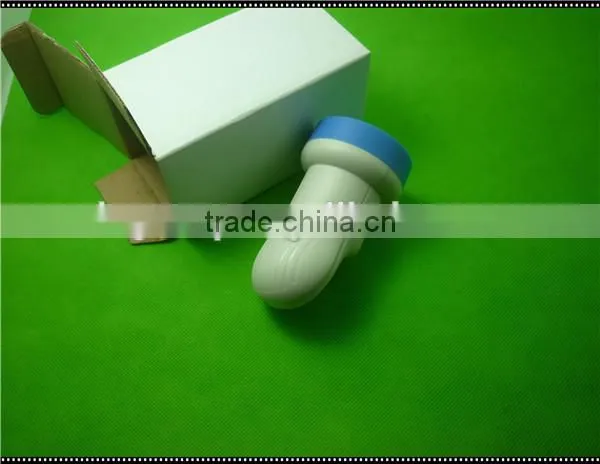

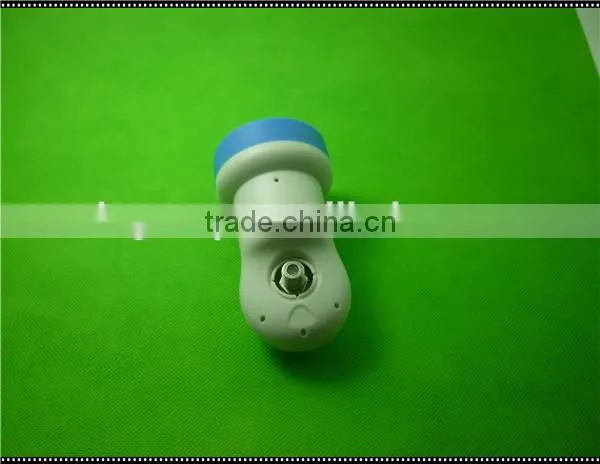

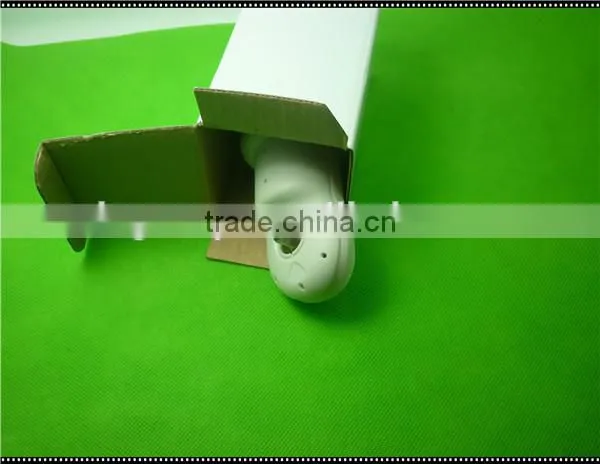

Product Display:
