Disk Lock Steel Tubular Scaffold system frame disk lock steel tubular scaffold
Disk Lock Steel Tubular Scaffold uses the specially designed rosset and self-locked wedge pin,you just need to put the pin into rosset then it will be locked.The Axial bearing capacity design make the tower more safe,even one worker can achieve the scaffold building and removing easily with a hammerm,which will help to lower the labor cost and material losss.
Disk socket-type frame with self-locking bolt disc and a specially designed structure, only the self-locking pin inserted into the disk, the system components can be combined into a whole, the axial force characteristics, so that the frame body system more safe and reliable, a worker with a hammer can be achieved quickly erected and dismantled the frame body, low labor cost, no loose parts, small material loss rate.
Disk Lock Steel Tubular Scaffold as a traditional steel fasteners scaffolding, scaffold upgrading of products, with high safety, save labor, convenient ride demolition, saving the amount of overall performance and aesthetic effects, it can be widely applied to the tall formwork , housing construction, viaduct, railway bridges and other engineering.
Disk Lock Steel Tubular Scaffold specifications-vertical
vertical tube diameter 60/48 mm,thickness 3.2/3 mm.
Lenght are 0.2 m ,0.5 m,1 m,1.5 m,2 m,2.5m,3 meters.
surfact treatment:paint and hot dipped galvanized
the disk lock is on the vertical tube.
materail Q235 B STEEL
Disk Lock Steel Tubular Scaffold-Ledger
Disk Lock Steel Tubular Scaffold-base jack
Diamter 48 mm
Material Q235B
Surface treatment paint or hot dip galvanized

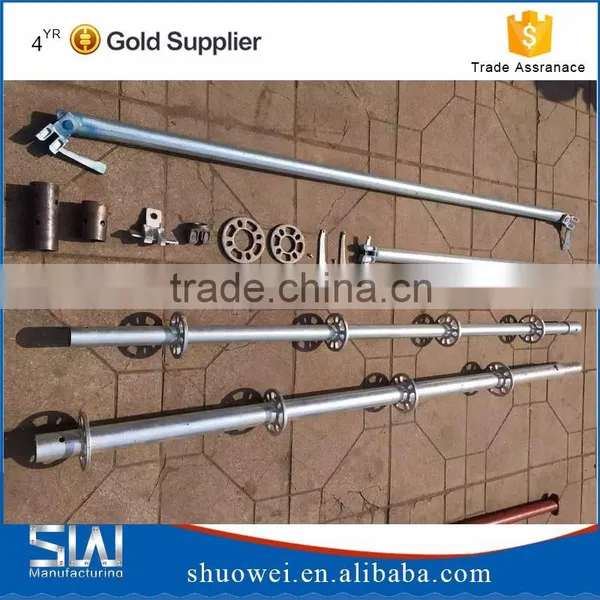

Disk Lock Steel Tubular Scaffold
Package and shipment
