Universal TPMS 09N With External Sensors Facotry Direct

Universal TPMS 09N With External Sensors Facotry Direct photo-1
Universal TPMS 09N With External Sensors Facotry Direct photo-2
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
China
Brand Name:
ELE/OEM
Model Number:
09N
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin China
Brand Name ELE/OEM
Model Number 09N

Universal TPMS EK209N external sensors with best price facotry direct









Universal TPMS 09N with external sensors facotry direct

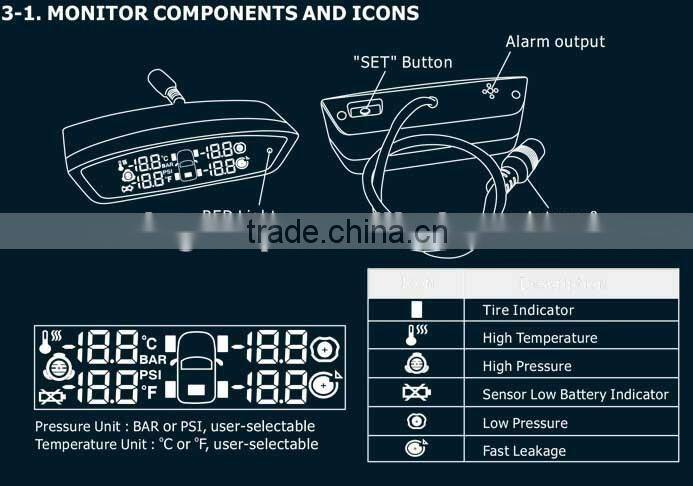

Monitor Features:



1. Reliable and easy to install

2. Fixed high/low pressure warnings

3. Fixed high temperature warnings

4. Visible and audible alerts

5. Selectable pressure units: PSI or BAR

6. Selectable temperature units:'C or 'F

7. Monitors up to 5 tires maximum

8. Display pressure or temperature of 4 tires simultaneously



Sensor Features:



1. Reliable cap sensors,easy to install

2. Water resistant

3. Replaceable sensor batteries

4. Sensors stransmit pressure and temperature data every 5 minutes

5. Fast leakage alert

6. Individually coded sensors

7. Anti-theft design



Application:



Universal TPMS 09N with external sensors facotry directUniversal TPMS 09N with external sensors facotry direct

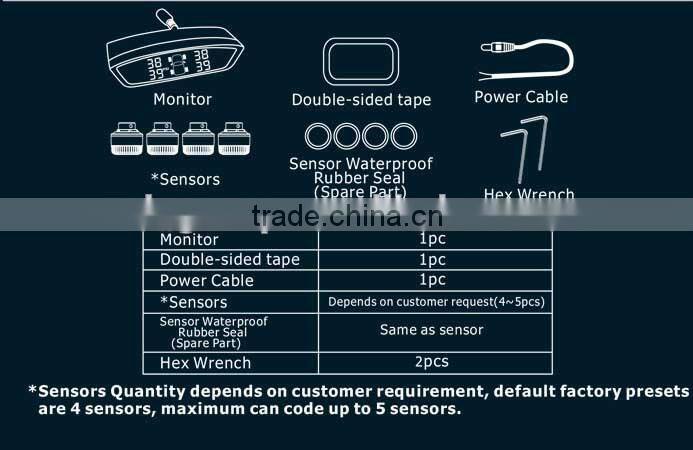

SYSTEM COMPONENTS



Universal TPMS 09N with external sensors facotry direct

Universal TPMS 09N with external sensors facotry direct



Specification:



1. Operational Temperature: -20'C~80'C

2. Storage Temperature: -30'C~80'C

3. Charger Input Voltage: DC12~24V

4. Transmission Frequency: 433.92MHz

5. Szie(L*W*H): 85 x 25 x 28 mm

6. Weight: 42g

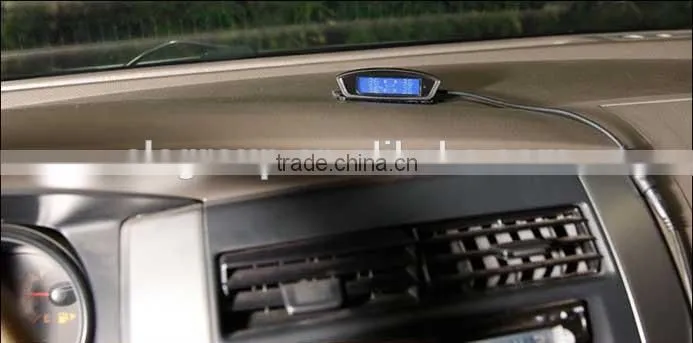

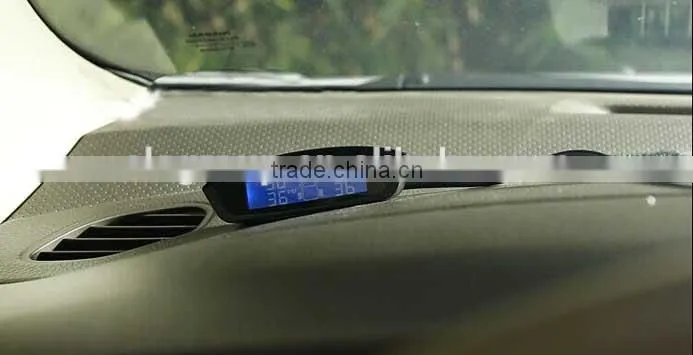

Installation:



1. Install the monitor inside the vehicle cabin without obstructing the driver's vision of the road

2. Place the monitor on the dashboard using double-sided tape

3. Plug the power cable and connect to the vehicle power



Remark:



1. The monitor should be installed inside the vehicle where it does not affect normal driving

2. The monitor should be well fixed to avoid falling off during driving

3. After the sensor installation.it is highly recommended to check for any air leakable

4. This TPMS can effective monitors tire pressure and temperatures but cannot prevent traffic accidents,regular tire inspection and maintenance is still necessary

5. After the system is installed correctly,the driver does not need to stare at the monitor all the time while driving.Alerts will be issued when abnormal conditions are found in the tires
