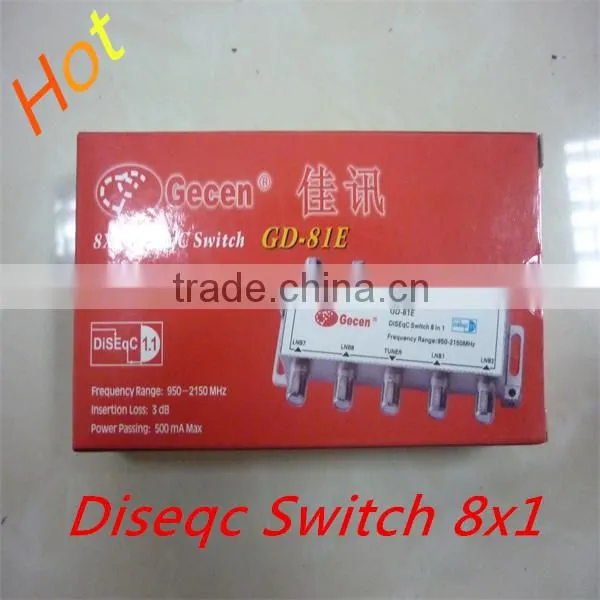

Satellite Diseqc Switch 8x1 DiSEqC Switch 8 in 1 GD-81B/DiSEqC 1.1Switch/DiSEqC 8X1

Satellite Diseqc Switch 8x1 DiSEqC Switch 8 in 1 GD-81B/DiSEqC 1.1Switch/DiSEqC 8X1 thumbnail-1
Satellite Diseqc Switch 8x1 DiSEqC Switch 8 in 1 GD-81B/DiSEqC 1.1Switch/DiSEqC 8X1 photo-1
Negotiable MOQ: 50 Pieces (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
switch
Model Number:
Diseqc 8x1
Contact Supplier Request Quote Chat Now
Shenzhen Ele Digital Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
ShenZhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name switch
Model Number Diseqc 8x1

Specifications

1.high quality and low price
2.diseqc 1.1 version
3.OEM available

DiSEqC Switch 8 in 1 GD-81B/DiSEqC 2.0 Switch/DiSEqC 8X1

excellent quality component,professional circuit design and low loss

Features:
 Zinc die-cast housing, nickel-plated
 Excellent quality component , professional circuit design and low loss
 Excellent quality chip , professional program design and compatible with more types of satellite receiver
 DiSEqC 1.1 control functions
 Select one of eight satellite signals through DiSEqC1.1 commands supplied from satellite receiver
 Utilize one coaxial cable to transmit control instruction and satellite signal simultaneously

GD-81B   Specifications :
Item
Specification
Item
Specification
Frequency Range
950-2150(MHz)
Normal Working Voltage
12-20(V)
Insertion Loss
3(dB)
DC Power Consumption
10(mA)
Isolation
20(dB)
DC Max Power Passing
500(mA)
Return Loss
8(dB)
Impedance(all ports)
75(Ω)
 Switching Signal : DiSEqC 1.1
 Connectors:Ftype female

satellite diseqc switch 8x1 DiSEqC Switch 8 in 1 GD-81B/DiSEqC 1.1Switch/DiSEqC 8X1satellite diseqc switch 8x1 DiSEqC Switch 8 in 1 GD-81B/DiSEqC 1.1Switch/DiSEqC 8X1satellite diseqc switch 8x1 DiSEqC Switch 8 in 1 GD-81B/DiSEqC 1.1Switch/DiSEqC 8X1
