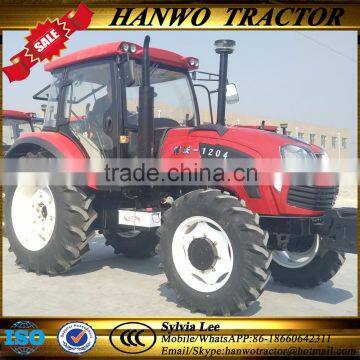

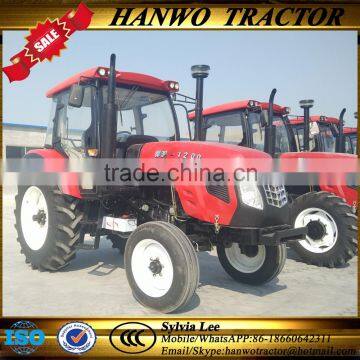

Hanwo brand 120hp 4wd tractor for sale
- 10000 Set / Sets per Month
- Qingdao
- T/T Credit Card
Product Details
Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 88.2KW |
Certificate: | Other, ISO | Brand Name: | HANWO | Model Number: | HW1204 |
Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas third-party support available |
Product Description
1.Adopting Dong fang hong famous diesel engine,good reliability,large torque reserve,low fuel consumption, high economic benefits;
2.Adopting 12 inch double clutch ,high transfer ability,reliable effect,operation more comfortable;
3.Gear box use 16F+8R,16 forward gears,8 reverse gears, gear are reasonable,high working efficiency;
4.Adopt independent power output device,steady transmission,large bearing capacity;
5.Using independent oil hydraulic steering system operation,flexible operation,reliable energy saving;
6.Using disc brakes,large braking torque,good braking effecting;
7.Using forced type lifter, reliable use, convenient maintenance;
8.Final drive adopts planetary reduction structure,compact structure, large reduction ratio;
9.New streamlined appearance, greaceful,fashion.
Model | HW1204 |
Drive type | 4*4 |
Engine | |
Engine brand | YTO |
Model | LR6B5-23 |
Type | 6 cylinder,water-cooling, In-line, direct injection |
Capacity of fuel tank(L) | 41 |
Bore*Stroke | 110*135 |
Rated speed (r/min) | 2300 |
Engine power (hp) | 120hp/88.2kw |
Transmission | |
Clutch | 12 inch dual clutch |
PTO size | 8 teeth φ38 |
PTO Speed(rpm) | 540/720 |
Gear shift | 16F+8R |
Hydraulic system | |
Hydraulic output valve | 3-Way opitonal |
Three point linkage | |
Category of 3-point link | Category II |
Lifting capacity(at point | 28 |
Technical parameter | |
Dimension(L*W*H) mm | 4530×1986×2910 |
Min.operation weight | 3800kg |
Wheel base(mm) | 2195 |
Track base(mm) front wheel | 1585 |
Track base(mm) rear wheel | 1608-1996Adjustable |
The Min. clearance(mm) | 470 |
Front tyre | 12.4-24 |
Rear tyre | 16.9-34 |
Steering type | Hydraulic Steering |
1.Warranty
We grants our clients a 12 month or 2000 hours warranty for any machines purchased from us. During the warranty period, in case the defect of material or workmanship has occurred with spare parts in normal operation, the defective parts will be repaired or replaced free of charges at our discretion.
2.Spare parts
We is dedicated to provide our clients with genuine spare parts with the highest quality, exact fitness and appropriate function. With our global distributor network, you are guaranteed with fast deliveries and service, wherever you are. Please submit your spare parts requires to us and list products name, model equipment serial number, description of required parts. We guarantee that your requires will be handled quickly and appropriately.
3.Installation & Maintenance
We is able to provide you with the overall installation of complicated machinery and equipment, allowing you to start the normal operation of generators set and engine immediately. After installation, we will make inspection of the whole machine, operate equipment and provide you with testing date reports of installation and operation.
4.Training
We offer perfect facilities and comfortable environment and can provide training service to different users. The training sessions include product training, operating training, maintenance know-how, technical know-how training, standards, laws and regulation training and other trainings, all of which are tailored to fulfill your individual needs. Training programs can be conducted in our factory field, or at the clients side.
5.Technical Advice
We can also help clients coordinate with trained service personnel to provide you detailer and extensive knowledge about your specific machine, with our technical advices, you machine service life can be significantly prolonged and sustained with high capacity.
Weifang Baili Tractor Co., Ltd. is located in Weifang, an easily accessible and economically developed port city . With over 20 years’ history of tractor manufacturing, Weifang has become one of the main tractor manufacturing bases and R&D centers in China, with stable professional supporting systems and high-quality technical talents. Baili is a comprehensive tractor manufacturing company integrating R&D, manufacturing and sales .
Baili is mainly specialized in 18-200HP two-wheel and four-wheel wheeled tractors. We produce and improve the products based upon the technological advantages of domestic and overseas similar products. The tractors are equipped with heavy-duty chassis which is firm and reliable, thus they are especially applicable for operations in paddy fields and also in dry lands. In addition, the tractors can be provided with common agricultural implements. All tractors enjoy the advantages of high traction, good leak tightness, easy operation, low failure rate and outstanding performance. They are widely exported to major agricultural provinces in China and other regions such as Southeast Asia, South America and Africa. We have a complete production line of tractors, fully computer-controlled PTO dynamometer, chassis running-in stand, raiser and such testing equipment as front- and back-axle test bed, smoke meter and fuel consumption meter, thus guaranteeing the quality of each tractor
.
We already have customers in different country, like
Africa: Zambia. Mozambique. Ethiopia, Zimbabwe, Botswana, Algeria, Nigeria, Tanzania, Australian,
Europe: Belgium, Georgia, Poland, Romania
Oceania: Australia. New Zealand. Papua New Guinea
South America: Brazil, Guyana, Peru, Panama
Asian: Uzbekistan, Kazakhstan, Thailand and so on.
In order to give you our best price,when you send email,please tell me:
1.How much horsepower tractor you need?
2.The quantity is?
3. Configuration requirements?
Sylvia Lee
Email:hanwotractor
Mobile:86-18660642311
Wahtsapp: 86-18660642311
