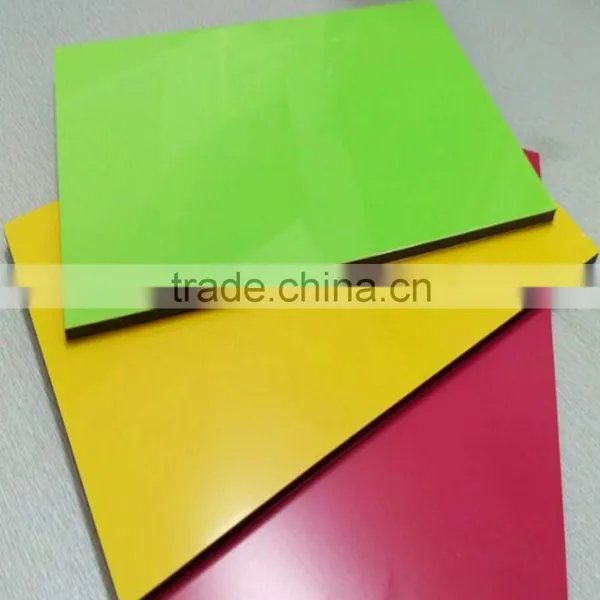

External Colour Bond Wall Cladding for Trade Assurance
1.PRODUCT STRUCTURE:
2.PRODUCT DETAILS:
| Alloy | 1100(common),3003,5005 |
| Facade Coating | PE Coating,PVDF Coating |
| Core Material | Recycle Plastic,Pure Plastic,Fire Rated,Unbroken(one/two direction) |
| Alu Thickness | 0.08mm to 0.5mm(max) |
| Panel Thickness | 3mm to 5mm(max) |
| Common Width | 1220mm,1250mm,1500mm,1570mm(max) |
| Common Length | 2440mm,3200mm,5000mm |
3.OTHER PRODUCTS:
4.HOT SALE SPECIFICATIONS:
| Market | Specificatons |
| Philippines | 1220*2440*4*0.21mm PE/PVDF |
| Thailand | 1220*2440*4*0.30mm PVDF |
| Ghana | 1220*2440*4*0.40mm,0.50mm PVDF |
| Panama | 1220*2440*4*0.21mm PVDF |
| Iraq | 1250*3200*4*0.30mm PE |
| Poland | 1500*5000*3*0.21mm PE Glossy/Matt color |
5.APPLICATION
A.Interior Wall
B.Ceiling
C.Exterior Wall
7.PROCESSING
1) Saw Cutting
It can be easily processed with wood product processing saw and plate saw.
It's recommended to use hard alloy blade.
2) Slotting
It's important to make the U type slotting process with a distance 0.2 to 0.4mm from the polyethylene substrate,recommended slot angle is 110.
A.Milling machine and trimmer.Running speed:20000-30000rpm Feed speed:3-5m/min
B.When processing large quantity of U type slots,it's recommended to use round saw and belt saw.
flakeouter diameter:305mm number of teeth:24 running speed:3,000-5,000 rpm
3) Bending with panel folder
If operated on the platform,bending part can be made very tidy.Platen puncher,plate folder or bending dies are applied as bending equipment.
The recommended temperature for bending is over 10°C.
4)Bending with panel bender
When plate folder is used to finish the panel,dies shall be placed on with appropriate radius
5) Riveting
Countersunk rivet can realize easy joint from one direction
6) Bolting
Considering from deformation limit,formul e>2D is the best calculation way of aperture D and distance from hole center to plate end.
8.PACKAGE
1.In wooden Pallet
2.In Bulk(with strong wooden fix the panel)
9.CERTIFICATIONS
