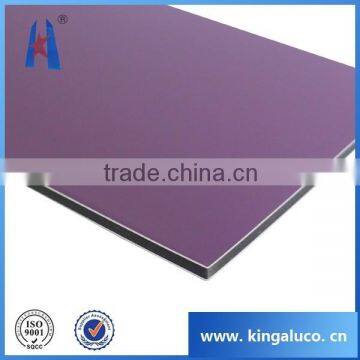

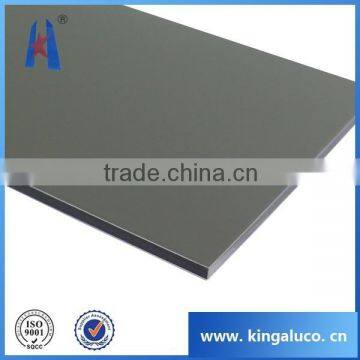

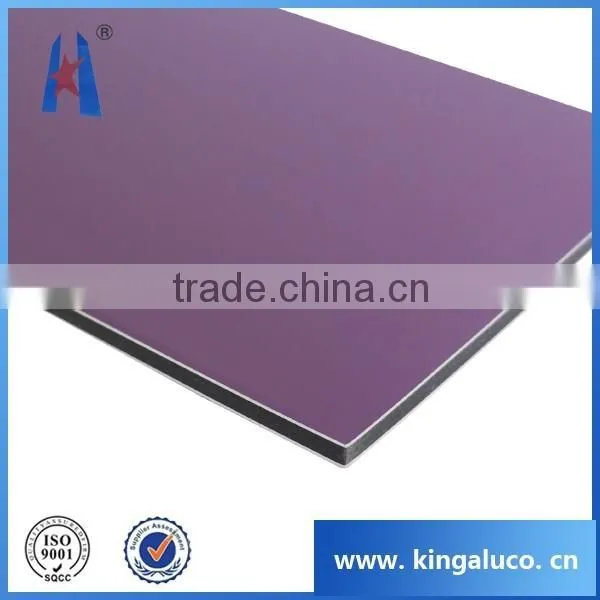

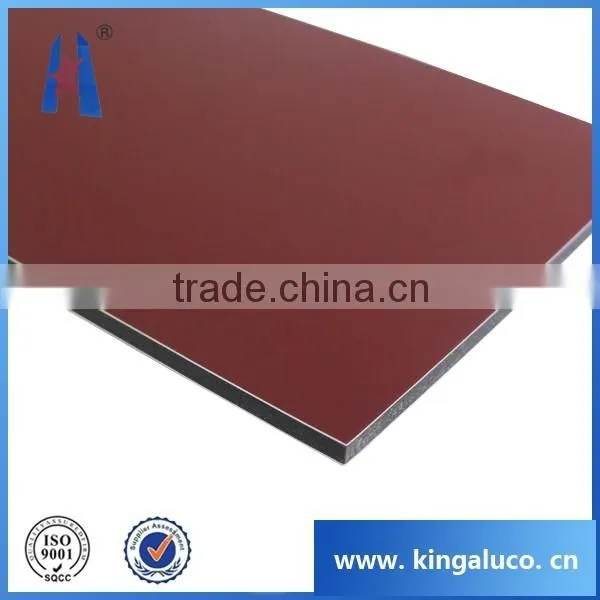

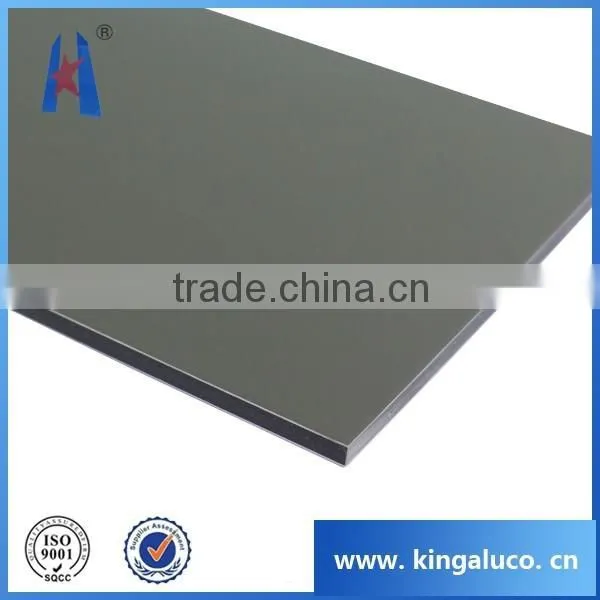

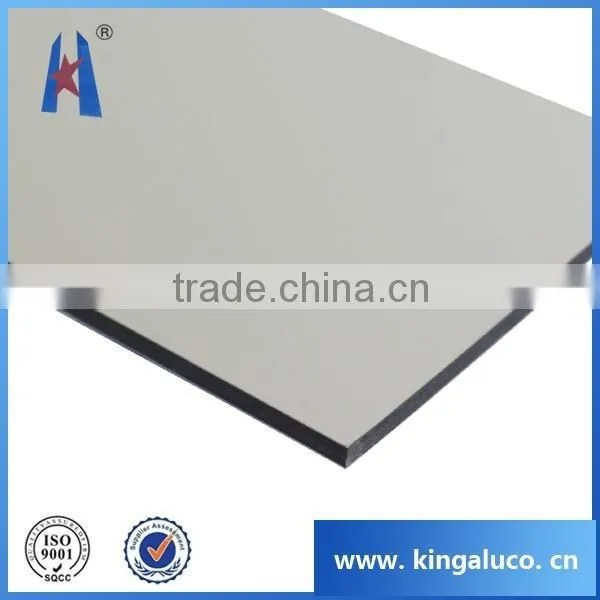

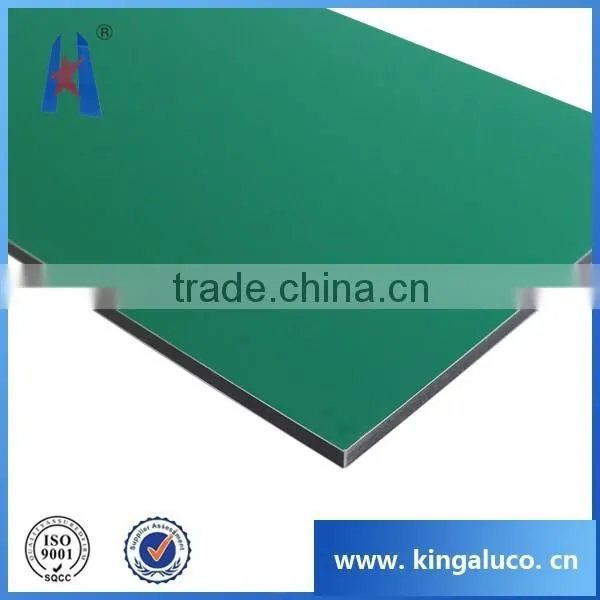

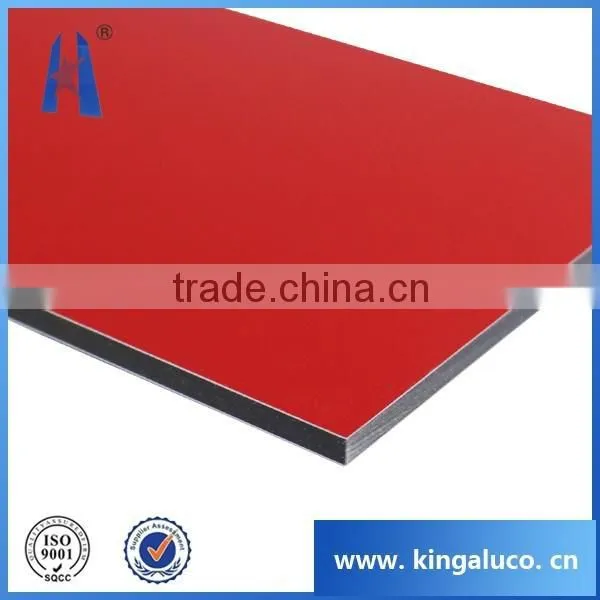

PE and PVDF aluminium composite plastic panel ISO Certified
- 20000 Square Meter / Square Meters per Month
- Shenzhen Guangdong
- T/T
Product Details
Place of Origin: | Guangdong, China | Brand Name: | Kingaluco | Model Number: | XH006 |
Usage: | Outdoor | Function: | Anti-Static, Antibacterial, Fireproof, Mould-Proof | Surface Treatment: | Brushed, Mirror, PE Coated, Printing, PVDF Coated |
Product Description
1. Dimensions of insulated aluminum panels/aluminum cladding panels/column covers aluminum composite panel
Width | 1000mm,1220mm 1250mm,1500mm,1550mm, 1570mm |
Length | 2440mm, 3200mm,4000mm 5000mm 6000mm,or customized |
Thickness | 2mm, 3mm, 4mm, 5mm, 6mm |
Thickness of ALU-layer | 0.08mm,0.10mm,0.12mm,0.15mm,0.18mm,0.21mm,0.25mm,0.3mm,0.35mm,0.4mm,0.45mm,0.5mm |
Inner Core | Normal non toxic PE core, one side unbroken plastic, two side unbroken plastic, virgin LDPE, fireproof material |
Color | Solid color, metallic color, brush color, mirror, marble, wooden color, glossy |
Brand | KINGALUCO, MEGABOND, or customized |
Surface | PE coating , PVDF coating, NANO, Brush surface, mirror surface |
Thickness of film | 0.07mm,0.09mm |
FCL and LCL | 1220*2440*4mm 1500 sheets in 20 feet container; wooden pallet package in Less Container Loading |
Non-standard sizes and special colors are available, according to customers' requests
2. Standard: according to GB/T 17748-2008 standard
3. Basic Material of insulated aluminum panels/aluminum cladding panels/column covers aluminum composite panel
1) front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin (PE)
roasting painting
2) Core material: nontoxic polyethylene, PE, FR, LDPE
3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)
4. Characters of insulated aluminum panels/aluminum cladding panels/column covers aluminum composite panel
a) Super peeling strength
b) Excellent surface flatness and smoothness
c) Superior weather, corrosion, pollutant resistance
d) Even coating, various colors
e) Fireproof, excellent heat and sound insulation
f) Superior impact resistance
g) Lightweight and easy to process
h) Easy to maintain, self-clean
5. Process of insulated aluminum panels/aluminum cladding panels/column covers aluminum composite panel
6. Why you choose us?
11 years history | Professional in manufacturing, marketing and service for 11 years. |
4 production lines | Produce 20,000 sqm per day, finish your order on time. |
24-hours working | Contact line is 24-hours available for your any question. |
Flexible MOQ | Any quantity is available if we have your specification in stock. |
Good Location | Our factory is near to Canton Fair and Foshan---famous building material market. |
Strict Quality Controlling | ISO9001:2008, PPG, SGS, KYNAR500 |
Shipping company | Introduce you our good partner--experienced shipping company with competitive price |
OEM service: | Accept your own design |
Free translation | Offer free translation for our customers during Canton Fair time. |
Guangzhou Xinghe Aluminum Composite Panel Co., Ltd. was established in 2001, more than 20,000 square meters of manufacturing area, superior in location and convenient in transport. We introduced international advanced technology and newest production equipments, supply the series of high quality aluminum composite panels with competitive price to our widespread users. We established a set of strict quality assurance system, successfully passed ISO9001: 2008, SGS, PPG, KYNAR500.The warranty period can reach 10 years for PE coating series, 15 years for PVDF series. Our products have been exported to Southeast Asia, Middle East, Africa, South America, Europe, Australia, etc.
