Home > Products > 50 series(40-60HP) Farm Tractors > 554 tractor with heater cabin, options Foton type bonnet, Cabin, kinds engine options

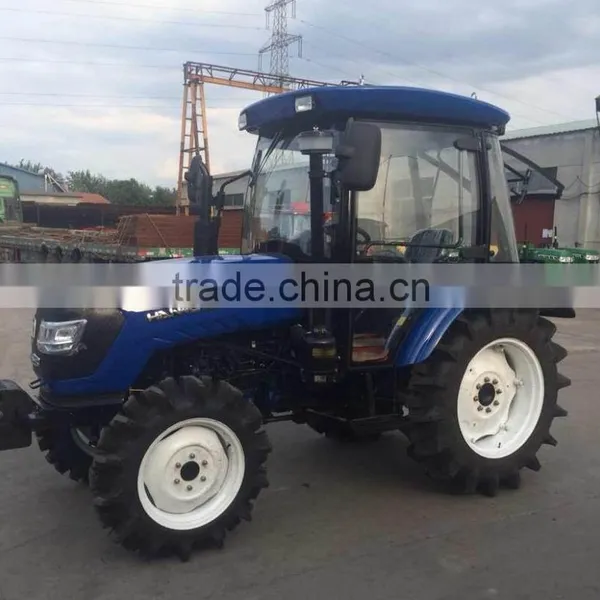

554 tractor with heater cabin, options Foton type bonnet, Cabin, kinds engine options
- 2000 Unit / Units per Month
- Qingdao
- T/T PayPal
Product Details
| Condition: | New | Type: | Wheel Tractor | By wheel: | 4WD |
| Usage: | Farm Tractor | Drive Type: | Gear Drive | Power(W): | 40.4kw |
| Certificate: | CE | Brand Name: | hanwo | Model Number: | HW554 |
| Place of Origin: | Shandong, China | After-sales Service Provided: | Overseas service center available |
Product Description
Specifications
multi-cylinders engine ,4WD or 2WD,
kinds options of the tractors,
sunshade,roll bar,cabin,
double valves,turf tire, etc.
Main technical specifications | ||||
Model | HW554 | |||
Type | 4×4 WD | |||
Dimensions of tractor(mm)
| Length | 3600 | ||
Width | 1600 | |||
Height | 2200 | |||
Tread
| Front Wheel | 1300 | ||
Rear Wheel | 1300 | |||
Wheel base | 2050 | |||
Min. Ground Clearance | 325 | |||
Min. Radius of Turning(m) | One-side braking | 3.5 | ||
No braking | 4.2 | |||
Dry Mass(kg) | 1900 | |||
Engine
| Model | Xinchai498 | ||
Type | Vertical, Water Cooled and 4-stroke | |||
Rated Power(KW) | 40.4kw | |||
Fuel | Diesel fuel | |||
Fuel consumption (g/kw.h) | ≤245 | |||
Rated Rev.(r/min) | 2400 | |||
Walking & turning System
| Tire
| Front tire | 6.5-16 (optional 8.3-20) | |
Rear tire | 11.2-24(optional 11.2-28,12.4-28) | |||
Connection between engine and clutch | Shaft connection
| |||
Clutch | Single Disc, Dry-Friction, Single Stage | |||
Transmission Box | (4+1)×2 Mechanical Type | |||
Steering | Mechanical or Hydraulic Type | |||
Suspension Type | Post positioned Tri-point Suspension, CatalogueI, II | |||
PTO
| Type and Rev.(r/min) | Single speed non-independent type 720 or double speed Non-independent 540/1000 | ||
Spline Size(mm) | Post positioned I35 Rectangle Spline with 6 teeth(6×28.91×34.79×8.69) | |||
SKD packing or CBU packing for container loading &shipment.
Warranty spare parts and service supplied as the customer request; quick-weak pars can be supplied when order; warranty list with 12-16 months after sales.
We are the manufacturer of the tractors ,tractors supplys from 20hp to 120hp at present. exported more than 70 countries in the world ,and OEM for Foton and Changlin Tractors in China. Welcome your visiting....
Q. I'm a complete tractor rookie, never driven one in my life - can you help me?
A. Absolutely! Your new tractor comes with a training DVD and instruction manual. If you still need assistance, we're only a phone call away - we're here to help.
Q: What lubrication of the tractor require?
A: there are different oil holes for the engine oil ,fuel ,gearbox ,lifting.
Q: What type of three-point linkage does the tractor have?
A: The tractor has a Category 1 three-point linkage
Q: How much fuel does the tractor use?
A: Approximately 5 - 7 litres per hour, depending on engine capacity, speed, load, etc.
Please review the specifications page for more information.
Q: What speed and power does the PTO deliver?
A: The PTO has single 720 RPM or dual speeds: 540 / 1000 RPM.
Q: What type of brakes does the tractor have?
A: Drum Brakes on the rear wheels,or air brake.
