Specifications
thermal insulated wall panel/insulated material/heat insulation wall panels1.Impact resistant
2.Good plasticity
3.ISO,SGS

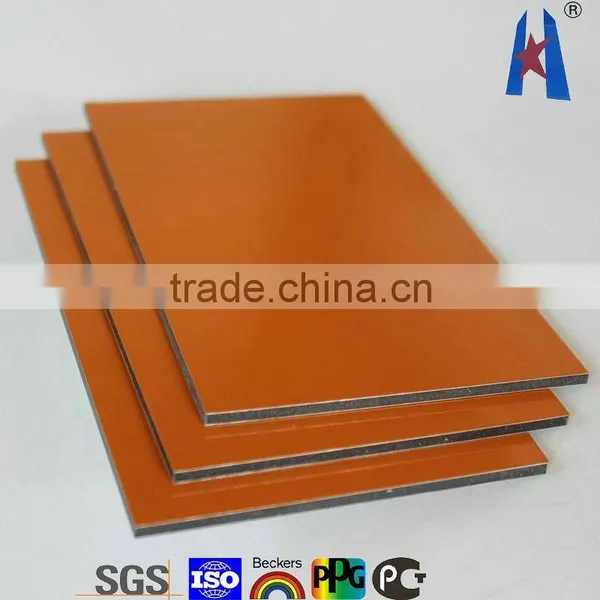

thermal insulated wall panel/insulated material/heat insulation wall panels
1. Standard: according to GB/T 17748-2008 standard
2. Basic Material of thermal insulated wall panel/insulated material/heat insulation wall panels
1) front side: aluminum alloy sheet coated with fluoro-carbon resin(PVDF) or polyester resin roasting painting
2) Core material: nontoxic polyethylene, PE, FR, LDPE
3) Back side: aluminum alloy sheet coated with polyester resin painting(PE)
3. Dimensions of thermal insulated wall panel/insulated material/heat insulation wall panels
a) Surface coating thickness: 30um
b) Aluminum alloy sheet thickness: 0.1mm, 0.12mm, 0.15mm, 0.18mm, 0.2mm, 0.3mm, 0.4mm, 0.45mm, 0.5mm
c) Thickness:2mm, 3mm, 4mm, 5mm, 6mm
d) Width: 1220mm, 1250mm, 1500mm, 1570mm
e) Length: 2440mm to 6000mmm
f ) Weight: 5.5kg/sqm based on 4mm thickness
g) Standard size: 1220 x 2440mm
f)Normal color:60 colors for Normal aluminum composite panel 7 colors for granite grain panel
Non-standard sizes and special colors are available, according to customers' requests
4. Characters of thermal insulated wall panel/insulated material/heat insulation wall panels
a) Super peeling strength
b) Excellent surface flatness and smoothness
c) Superior weather, corrosion, pollutant resistance
d) Even coating, various colors
e) Fireproof, excellent heat and sound insulation
f) Superior impact resistance
g) Lightweight and easy to process
h) Easy to maintain, self-clean
5. Application scope of thermal insulated wall panel/insulated material/heat insulation wall panels
a) Building exterior curtain walls
b) Decoration and renovation additions for old buildings
c) Decoration of interior walls, ceilings, bathrooms, kitchens and balconies
d) Shop door decorations
e) Advertisement board display platforms and signboards
f) Wallboards and ceilings for tunnels
g) Industrial materials, materials for vehicles and boats

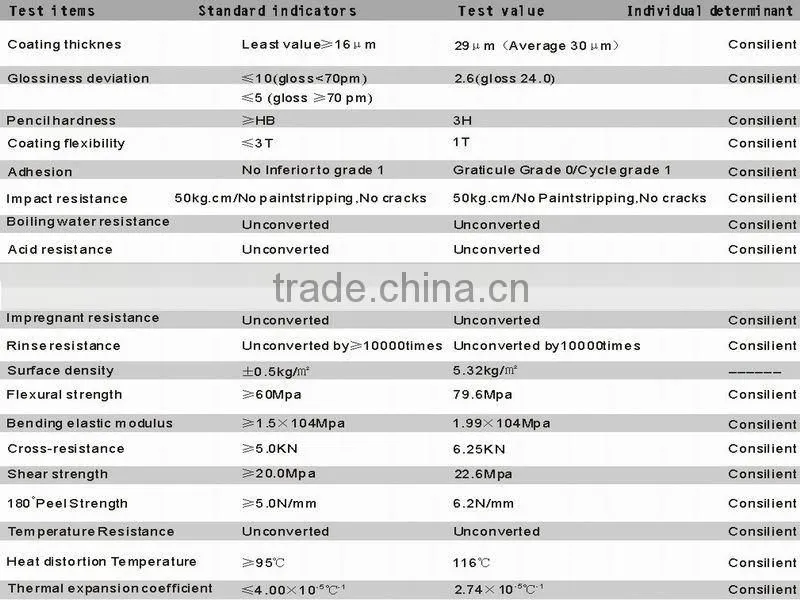

6. Quality Guarantee ------- panel for indoor

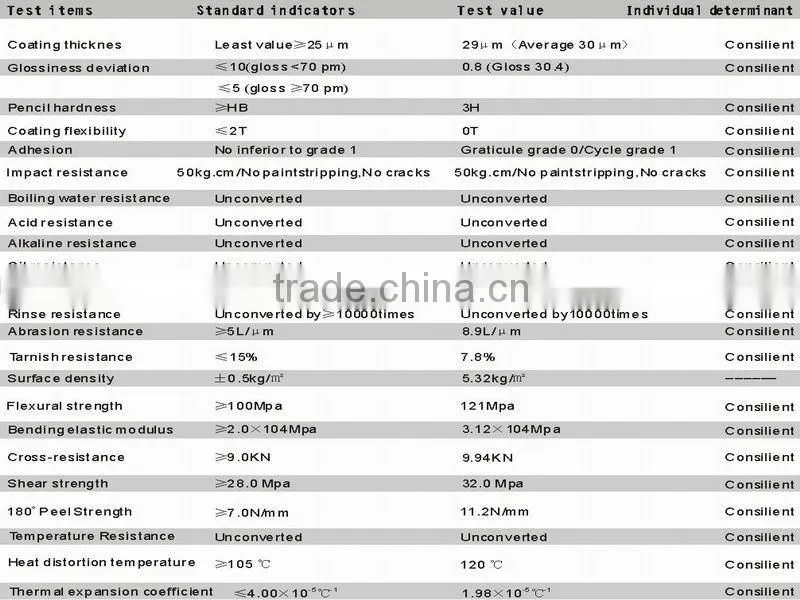

Test Result -------panel for outdoor
7. Factory Scope
