Oxygen Permability rate Tester – Coulometry theory Method
Standards:
ASTM D 3985-1995, ASTM F 1927-1998, ASTM F 1307-1990, YBB00082003, ISO 15105-2:2003, DIN 53380-3-1998, JIS K-7126 ; GB/T 19789-2005,
Function:
It carries the standard of GB/T 19789-2005.It adopts Coulometry theory,High-precision sensors with over-range protection, continuous data collection, accurate and reliable data, to test package oxygen transmission rate.
Application :
* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
paper, plastics, rubber, paper, paper-plastic composite, glass, and metal packages, eg: bottles, containers,
Techinical Parameter

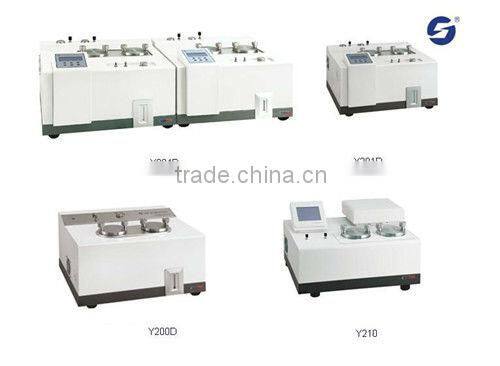

Item | Y201D | Y204D | Y210 | Y200D |
Test range | 0.02~16500 CM3/M2/day (with large the test chamber, the max testing range can reach 260000cm3/m2/day, 0.01~82 cm3/pkg/24h( package) | 0.1~8500 CM3/M2/day | ||
Test accuracy | 0.001 cm3/m2/day | 0.01 cm3/m2/day | 0.1 cm3/m2/day | |
humidity range | 0%RH, 30~90%RH,100%RH |
| ||
humidity accuracy | ±2%RH | ±1%RH | ±1%RH |
|
ntrol range | 20~35°C | 15~45°C | 15~45°C | 23±2°C |
Temp. accuracy | ±0.1°C |
| ||
Test area | Φ80mm,50.24cm2 | |||
Specimen quantity | 4pcs | 2pcs
| ||
Specimen thickness | ≤2mm | |||
Pressure | 0.2-0.3Mpa | |||
Features:
1, Automatic test, use friendly,
2, High-precision sensors with over-range protection, continuous data collection, accurate and reliable data;
3, Two calibration methods of standard gas calibration and standard film calibration,
4, Versatile functions such as the auto leakage protection function, automatically judges and stops;
5. Double chamber pressure control and pressure automatic balance.
6. Superior components ,multi-level security protection design;.
7. Versatile operation language support.
Service
1: Two years guarantee and all lifetime techinical support
2: USA, Australia Aisa Local agent for service
3 Speedy reply, 12hrs response to customer questions
4 Software free update
5. Minor maintenance ---parts ship within 24 hrs
6 Major maintenance---Technical will be sent within 15 days
