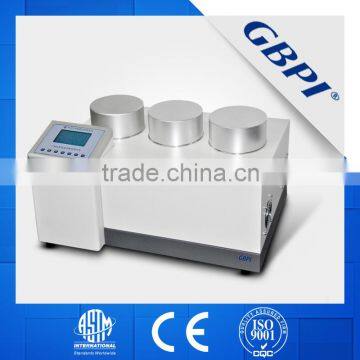

N530 Packaging Gas Permeability Test
Packaging Gas Permeability Test
Function and usage
Gas permeation tester tests the gas transmission rate (GTR) of packaging material.
This instrument is widely used in food industry, pharmaceutical industry, cosmetics flexible packaging materials industry (plastic film, barrier materials, sheets, metal aluminum, PVC, PVC sheets), college, university and quality institution for gas(O2,CO2,N2,ect)permeation test and quality control.
Standards
ISO 2556-2001,ISO15105-1,GB/T 1038-2000,ASTM D1434-82(2003),YBB00082003.
Application
* Films
rigid films, shrik films, stretch films, plastic films, plastic composite films, paper-plastic composite films,aluminized films, aluminum foil, aluminum composite films, high barrier films and many others. Eg. PET, OPP, CPP, LDPE, BOPP
* Sheet
engineering plastics, rubber, waterproof building materials, and thermal insulation materials, e.g. PP, PVC, PVDC, and nylon
*Packages
paper, plastics, rubber,paper-plastic composite, glass, and metal packages, eg: bottles, containers
Techinical Parameters
Measuring range |
0.02~5000 cm3/m2 .day.0.1Mpa 0.2~50000 cm3/m2 .day.0.1Mpa(by use expansion the mode) |
Measuring accuracy |
0.01cm3/m2.day.0.1Mpa |
Testing temperature range |
15°C~35°C, |
Temperature precision |
±0.1°C |
Resolution ratio |
0.1pa |
Vacuum |
<20pa |
Carried gas inlet |
1/8 inch |
Sample thickness |
≤2mm |
Dimension |
700(L)mm×520(W)mm×380(H)mm |
Power supply |
AC220 V/50Hz |
Sample area |
Φ80mm, transmission area 50.24cm2 |
Gas Pressure |
0.2-0.8Mpa |
Features
1. Automatic test, user friendly, non-maintenance design;
2. Two test mode of high and low, width measurement range, high precision ;
3. Superior components, accurate test result, high stability;
4. Automatically increase and decrease temperature, no special requirements to the environment.
After sale Service
l 2 years coverage
l Speedy reply, 12hrs response to customer questions
l Software free update
l Minor maintenance ---parts ship within 24 hrs
l Major maintenance---Technical will be sent within 15 days
l Free inhouse training for customer operator
About GBPI
GBPI is a professional manufacturer focused on developing
and producing packaging material test instruments. Founded in 2002, the company has received IOS9001 certification and reco gnized as high-tech enterprise and software enterprise by national authority. We hold numerous technology patents and software certificates from the national authority, and gained awards for technological progress.
