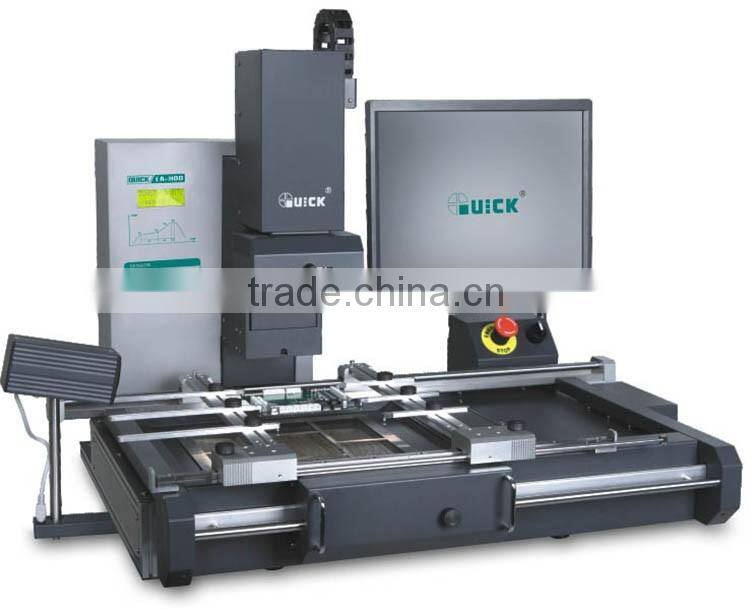

QUICK EA-H00 Infrared BGA Rework System
Festures of QUICK EA-H00 Infrared BGA Rework Soldering Station System:
1.IR part:infrared temperature sensor detects surface temperature of BGA,close-loop control,even heat distribution.
2.Software:connect with PC,record,control and analyze the whole process,create profiles.
3.Control box:multifunctional keyboard,easy operation.
Specifications:
IR Part:
| General power | 2400W(Max) |
| Voltage | 220V AC 50Hz |
| Power of bottom heater | 400W*4=1600W(dark infrared heater) |
| 500W*4=2000W(light infrared heating tube optional) | |
| Power of top heater | 120W*6=720(infrared heating tube,wave length about 2-8um) |
| Top heating range | 20-60mm(X,Y adjustable) |
| Bottom preheating range | 290mm*290mm |
| Max PCB size | 390mm*420mm |
| Communication | USB(be connected with PC) |
| Temperature sensor | Non-contact infrared sensor |
| Weight | Around 52kg |
| Dimensions | 850(L)*720(W)*730(H)mm |
RPC Part:
| Camera | 36*12 times magnifying |
| horizontal resolution 500 lines;PAL format | |
| LED lighting | |
| Control box | multifunctional keyboard |
| Data acquisition card | quad analog video input |
| Video softt | professioanl video acquisition software |
There are other BGA Rework Soldering Station System products,please kindly see below.
If there is any model you like,please feel free to contact with us!
QUICK , as a leading company of soldering station products,has got CE certificates for most of our products,and also approved ISO9001 & ISO14001.
Established in 1994 and located in Changzhou,QUICK Soldering has grown to be the leading manufacturer of soldering station equipments and other productions in China.It is widely recognized as a comprehensive solution provider in eletronics assembly industry.
QUICK Soldering takes pride in its professional teams of R&D,manufacturing and sales.ISO9001 Quality Management and ISO14001 Environment Protection System are both implemented to improve and perfect it in all aspects.
Nowadays,QUICK products consists of various types of soldering equipments,such as solderingstation,rework soldering station,soldering robot,laser soldering robot,quantitative solder melting&dropping soldering robot,infrared&hot air BGA rework system and other related equipments like dispensing robot,screwing robot,fume extractor,static eliminator etc.Automantic assembly lines combined with soldering,dispensing,screwing,AOI and jig-returing etc can also be customized as per different applications.
QUICK Soldering adheres to the principle of providing customers with superior quality products at reasonable prices and excellent services.As it dis in the past,QUICK Soldering will continue to offer customers an sll-round support in future.It's the sincere wish to establish a long term business relationship with customers who are interested in the products.
OUR WORKSHOP & SHOWROOM:
1.We are the largest and most professional manufacturer of soldering station products.
2.Our company has passed ISO9001 & ISO14001.
3.Over 60 R&D engineers, with more than 20 years experience.
4.Have global users in many countries such as Korea,Vietnam,India,Mexico,Brazil,North Africa,European countries etc.
5.High quality & competitive price.
6.Most products have CE certificates.
7.100% NEW from QUICK factory.
8.100% QC inspect before shipment.
9.OEM is acceptable.
All products purchased in QUICK are tested and guaranteed to keep in good quality with one year warranty excluding consumable parts. If quality problems happen in guarantee period,our company provides technical supports and fittings.Our local distributor will help to solve your problems timely after receiving telephone or emails. If you are caught in some problems when using our products, welcome to contact us at any time.
QUICK is a leading company which is specialized in providing soldering station and other electronic soldering equipments.
If there is anything you'd like to know,please contact us without hesitation.
