Home > Manufacturing & Processing Machinery > Agricultural Machinery > Oil Presser > SSS09 Cheap Soybean Oil Extruder Machine

SSS09 Cheap Soybean Oil Extruder Machine

SSS09 Cheap Soybean Oil Extruder Machine photo-1
US$ 600 - 3,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
YD
Payment & Shipping
Payment Methods:
Port of Shipment:
QingDao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name YD
Model Number 6YL series

Specifications

The machine is matched with one controlling cabinet box for controlling all working of the machines.



The detail description of Automatic oil press machinery:



1. it can save labour and save cost : only 1 or 2people can finish the production.



2. Widely used to press various kinds of oil materials, like soybean, sunflower seeds,

peanut, sesame,rapeseeds, flax seed, camellia, cotton seed, cashew, hemp seed,

 linseeds, coconut, palm and walnuts and all the oil content crops.



3. Different oil materials have different oil yielding.

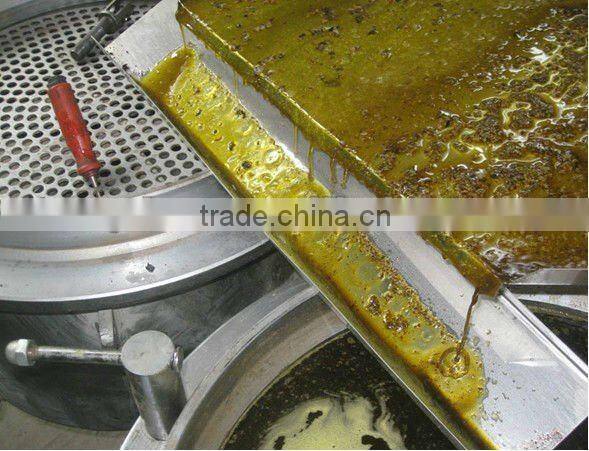

4. It  includes  screw oil press, eletrical element for heating

chamber, and the vacuume filter can be for clearing the crude oil.



5. Small-land using: only 10-20square maters can meet the need of production.

6. The oil left in cake is less than 6% . And cake thickness can be adjusted once the machine stop running.

7. It is easy to operate . When operating, you should do as the instruction .



The main part of the machine:

1. Screw oil press

2. Electrical element for heating chamber .

3. Vacuum filter for clean crude oil

4. Squeezing bolt

5. Heating ring.



Our highlighted features of oil press machine comparing with other factories:



1. Material: the main part of the machine is made of stainless steel and alloy steel.

2. Elegant appearance structure, pure oil meet with the standard of health quarantine.

3. high degree of automation.

4. Adopt automatic circuit controlling and automatic temperature controlling.

 technical parameter of Automatic oil press machinery

              Model

6YL-165

Diameter Of Squeezing Bolt

Ø 160mm

Speed Of Squeezing Bolt

35r/Min

Diameter Of Internal Circle Of Pressing Chest

Ø 162mm

 Power(Main Engine)

Y22-4  22kw

Handling Capacity

600-650kg/H

Weight Of Complete Machine

2000 kg

External Dimensions

2800x1500x2300mm

  SSS09 cheap soybean oil extruder machineSSS09 cheap soybean oil extruder machine
