4 Wheels Diesel Concrete Mixer With Hydraulic System

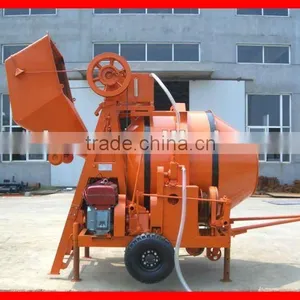

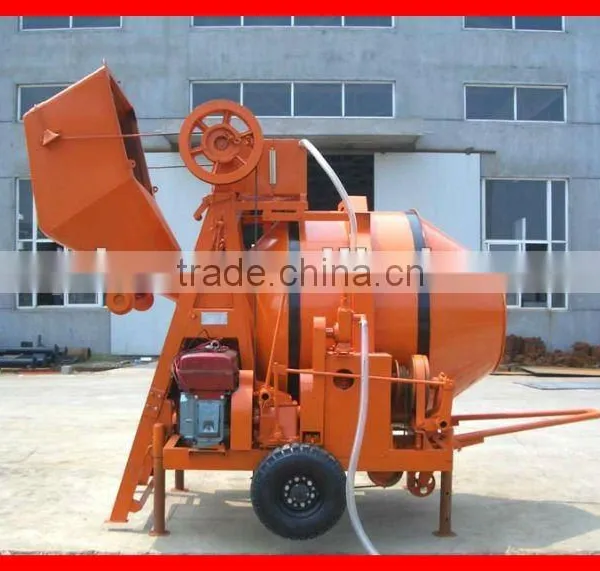

4 Wheels Diesel Concrete Mixer With Hydraulic System photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
YD
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao/Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Henan, China
Brand Name YD
Model Number JZR500
Motor Power 14.7kw
Mixing Power 14.7kw
Charging Capacity 750L
Reclaiming capacity 500L
Speed of Mixing Drum 21r/min
Water Supply Mode Auto
Working Cycle Period 60S
Discharge Way Hydraulic
Outline Dimension 3750*2240*3800mm

Specifications

JDC,JZC , JZM , JZR,JS series concrete mixers
easy to use with auto system
low energy consumption, low noise
high efficient

We can supply all kinds of mixers: JZC500/350/250 JDC500/350 JZM750/350 JZR500 JS3000/2000/1500/1000/750/500.

This machine is mainly have advanced design, reasonable structure, reliable performance, stirring work of good quality, the time is short, , etc. Lining board, mixing blades are using high hardness and toughness resistant alloy cast iron, long service life.

The following is  the specs of JZR500:

Model

JZR500

Type

Self-falling

Towing

Four-towing wheels

Capacity of loading

750L

Capacity of discharging

500L

Capacity of water tank

140L

Diesel engine

Model

YANMAR CY1115-XE



Power

14.7kw

Speed

2200r/min

Max towing speed

20 km/h

Max. Aggregate size

60mm

Output

18~22m3/h

Hopper lifting model

Hydraulic tipping hopper

Tire

6.50-16

4.00-8

Overall dimension(L×W×H)

3750×2240×3800mm

Total weight

2050kg
