Specifications
2D1+2CIF / 4HD1 / 4CIF+ 4CH Audio& 4Video & 4Playback & 4 CCTV POWER SUPPLY+G-SENSORgood quality VEHICLE HDD MOBILE DVR
Operation System Linux
Compression H.264
Signal System PAL:25 fps, NTSC:30 fps
language Chinese / English optional, OSD Menu
Display Frame Rate D1/HD1/CIF optional. 2D1@25fps+2CIF@25fps, 4CIF@25fps
Video Input/ Output 4-CH complex Input / 1CH RCA
Audio Input/Output 4-CH Input /2CH Output, one in front broad and one in back
Audio compression ADPCM
Alarm Input/Output 6 alarm input / 2 alarm Output, Max:12V
Recording Manual, Schedule, Motion Detection, Watermark
GPS Vehicle tracking, Speed detection, Synch time
Event Sensor trigger, Speeding, Accelerometer, Temperature, Video Loss
Playing Mode Support 1 channel or synchronous 4 channels By PC
Searching Mode By Time/ By Date/ By Event
local --Storage Support 1TB max. and 1 SD card
Built Model (Selectable) G-SENSOR
GPS
3G (HSPA/WCDMA/EVDO )
WIFI 802.11b/g
Remote Control IR Remote Control
Software Upgrade USB
USB2.0 1
E-SATA 1
Power Input/Output 8—36V Input, 12V Output, 500mA
Comsumption 12W~30W
"Camera's remote
power supply" Supply Remote Power for 4 channel cameras DC12V@2A
Extended Port 1 Port for RS232 & 3 port for RS485 & 1 port for RJ45 Ethernet
Working Temperature -25℃~+85℃
Vibration Resistance < 2 Grms
Shock Resistance < 1200 Grms
Vehicle key signal ≤4V (OFF),≥5V(ON)
N.W. 3.8KG
Dimension 220mm×166mm×70mm

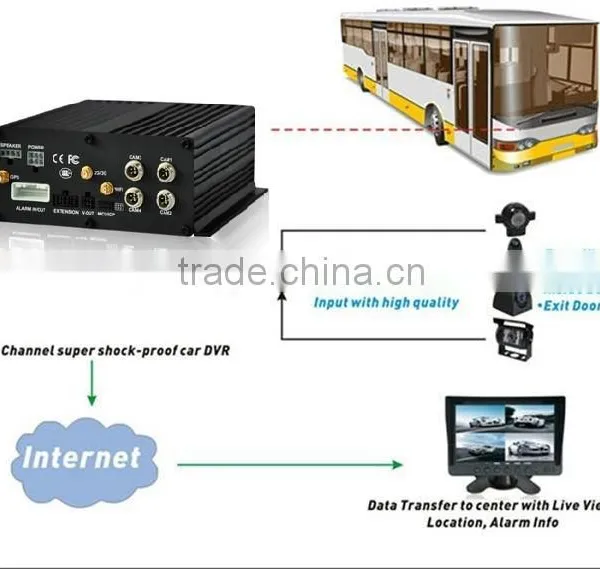

Applications
