Specifications
1.high quality and efficiency with all kinds models2.easy to operate
3.low energy consumption
4.CE & ISO9001:2000 certified
We can supply all kinds of mixers: JZC500 JZC350 JZC250 JDC500 JDC350 JZM750 JZM350
JS3000 JS2000 JS1500 JS1000 JS750 JS500.

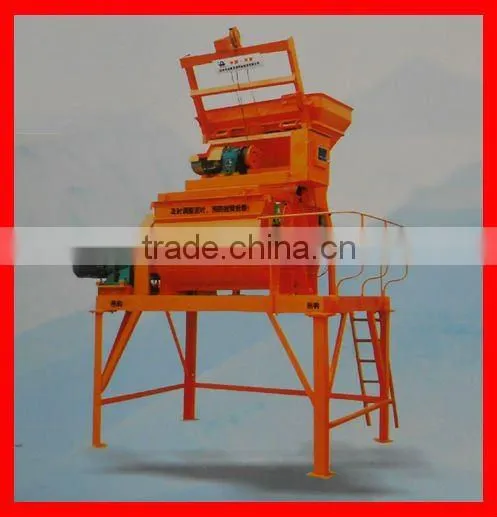

As a double-horizontal-shaft forced type concrete mixer, the JS series concrete mixer has been provided with double superiorities, that is single-independent work and combinatorial function with PL series burden machine, also provide the matching engine for mixing plant, and so it applies to all kinds of large, middle and small scale prefabricated-component factory as well as industry and Civil Construction like highway,railway,bridge,irrigation works,dock and so on. With a high efficiency, this machine can be applied to all kinds of material, such as harsh concrete,plastic concrete,lightweight aggregate concrete and others.
With reasonable structure, novelty layout and easy operation and maintenance, we can make design according to special requirements for meeting the demand of customers.
With the features like advanced design,reasonable structure,reliable performance,high quality,short time,lower energy consumption, this machine adopts high hardness and tenacity wear-resistant alloy cast iron for the scaleboard and mixing blade, and so the whole machine has a long useful life.
Technical Specification of JS500-1500 Concrete Mixer:
Parameter Model |
JS500 |
JS750 |
JS1000 |
JS1500 |
|
Item | |||||
Discharge volume |
500L |
750L |
1000L |
1500L |
|
Charging volume |
800L |
1200L |
1600L |
2400L |
|
Theoretical capacity |
≥25m3 |
≥35m3 |
≥50m3 |
≥75m3 |
|
Aggregate sizes |
≤60/80mm |
≤60/80m |
≤60/80mm |
≤60/80mm |
|
Working circle |
60s |
60s |
60s |
60s |
|
Mixing blade |
Speed |
35r/min |
30.5r/min |
25.5r/min |
23r/min |
Quantity |
2×7 |
2×8 |
2×8 |
2×9 |
|
Mixing motor |
Model |
Y180M-4 |
Y200L-4 |
Y225S-4 |
Y225M-4 |
Power |
18.5 kw |
30 kw |
37 kw |
45 kw |
|
Lifting motor |
Model |
YEZ132S-4 |
YEZ132M-4 |
YEZ160L-4 |
YZE180M-4 |
Power |
5.5 kw |
7.5 kw |
11 kw |
18.5 kw |
|
Pump motor |
Model |
50DWB20-8A |
65DWB35-5 |
KQW65-100 |
KQW65-100 |
Power |
0.75 kw |
1.1 kw |
3 kw |
3 kw |
|
Weight |
1500kg |
6150kg |
9880kg |
10960kg |
|
Dimensions (L x W x H) |
3030x2300x2680 mm |
4550x2250x2450 mm |
4640x2250x2250 mm |
5058x2250x2440 mm |
|
