Specifications
very fast running modulating valve1.stepping motor actuator
2.1/2''-2''
3. 24VDC/AC
4.on/off or 3-point
WRA3-..S+W8BV…Serise motorized ball valve
Company introduction
Winner company is the first company in China to develop, produce and sell small motorized ball valve and put the ball valve for central air condition system and HVAC systerm.WE have also got electric ball valves, CE, ROHS certification.
The typical customer
We are the single supplier of Daikin air condition in China and We have supplied for daikin four years of electric ball valve
The product applications
1,Can be used for central air-conditioning fan coil
2, Can be used in multi-function VRV heat pump heating system
3,Can be used in solar hot water system;
4,Can be used in industrial equipment, new energy equipment, water treatment system and so on;
The product technical parameters
Material
Part |
Material |
Valve boby |
Forged brass ,Hpb59-1 |
Seal |
Ball: PTFE+EPDM with double O-ring |
Stem: EPDM with double O-ring | |
Actuator shell |
PC+GF10 |
Actuator base |
PC+GF10 |
Actuator revolving shaft |
POM |
(1) Transfer gear---------Mental gear with heating treatment
(2) Motor--------------------US motor
Actuator Parameters : Type
Model |
Control |
Power |
Torque (N.m) |
On/off Time (s) |
WRA3-202s |
3-point&on/off |
24VDC/AC±15% |
2 |
8 |
WRA3-206s |
3-point&on/off |
24DC/AC±15% |
6 |
20 |
WRA3-210s |
3-point&on/off |
24VDC/AC±15% |
10 |
48 |
Valve boby Parameters:Type
Model No. |
Description |
DN(mm) |
Inch |
Kvs(m3/h) |
Pvmax (MPa) |
Ps (KPa) |
W8BV215 |
2-way |
DN15 |
1/2” |
6.3 |
2.5Mpa |
1400 |
W8BV220 |
2-way |
DN20 |
3/4” |
6.3 |
2.5Mpa |
1400 |
W8BV225 |
2-way |
DN25 |
1” |
10 |
2.5Mpa |
1400 |
W8BV232 |
2-way |
DN32 |
11/4” |
16 |
2.5Mpa |
1400 |
W8BV240 |
2-way |
DN40 |
11/2” |
25 |
2.5Mpa |
1400 |
W8BV250 |
2-way |
DN50 |
2” |
40 |
2.5Mpa |
1400 |
W8BV315 |
3-way |
DN15 |
1/2” |
6.3 |
2.5Mpa |
1400 |
W8BV320 |
3-way |
DN20 |
3/4” |
6.3 |
2.5Mpa |
1400 |
W8BV325 |
3-way |
DN25 |
1” |
10 |
2.5Mpa |
1400 |
W8BV332 |
3-way |
DN32 |
11/4” |
16 |
2.5Mpa |
1400 |
W8BV340 |
3-way |
DN40 |
11/2” |
25 |
2.5Mpa |
1400 |
W8BV350 |
3-way |
DN50 |
2” |
40 |
2.5Mpa |
1400 |

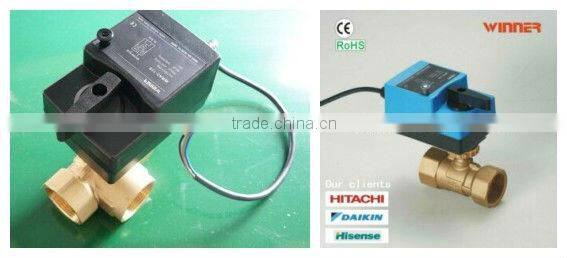

3 way electric ball valve 2 way electric ball valve

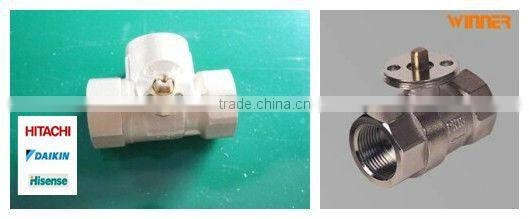

3 way ball valve body 2 way ball valve body

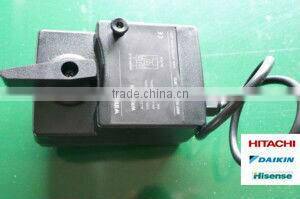

Actuator
The photos of production, equipment and warehouse
Semi-finished valve body The valve leak detection
Production line Test line
Packing Guarantee period
Guarantee period:18 months
Service time:50000 times
