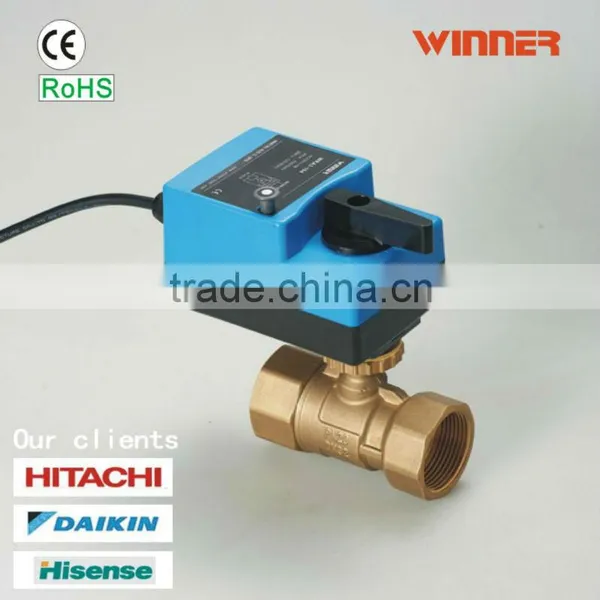

Fast Running Operating Motorized Ball Valve With Big Flow

Fast Running Operating Motorized Ball Valve With Big Flow thumbnail-1
Fast Running Operating Motorized Ball Valve With Big Flow photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Contact Supplier Request Quote Chat Now
Winner Ball Valves Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Changsha
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Structure Ball
Pressure Medium Pressure
Power Other, electric
Material Brass
Temperature of Media Medium Temperature
Media Other, water,50%glycol
Port Size 1/2''-2''
Place of Origin Hunan, China
Model Number WRA3-105D/205D/305D
Brand Name WINNER

Specifications

very fast running modulating valve
1.running time:10-35s
2.1/2''-2''
3. 12VDC/ 24VDC / 3VDC
4. on/off



WRA3-..5D+W8BV…Serise motorized ball valve



 Company introduction



Winner company is the first company in China to develop, produce and sell small motorized  ball valve and put the ball valve for central air condition system and HVAC systerm.WE have also got electric ball valves, CE, ROHS certification.





fast running operating motorized ball valve with big flow



 The typical customer



We are the single supplier of Daikin air condition in China and We have supplied for daikin four years of electric ball valve



fast running operating motorized ball valve with big flow

The product applications



 1,Can be used for central air-conditioning fan coil



 fast running operating motorized ball valve with big flow

 2, Can be used in multi-function VRV heat pump heating system



fast running operating motorized ball valve with big flow

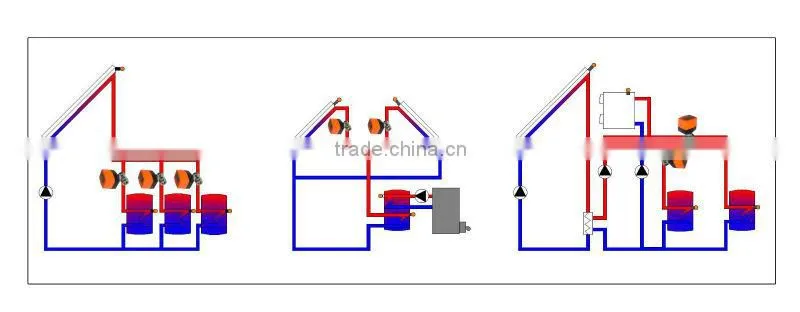

3,Can be used in solar hot water system;



 fast running operating motorized ball valve with big flow

4,Can be used in industrial equipment, new energy equipment, water treatment system and so on;





fast running operating motorized ball valve with big flow fast running operating motorized ball valve with big flow









The product technical parameters



Material

Part

Material

Valve boby


 Forged brass ,Hpb59-1

Seal

Ball: PTFE+EPDM with double O-ring

Stem: EPDM with double O-ring

Actuator shell

PC+GF10

Actuator base

PC+GF10

Actuator revolving shaft

POM





(1) Transfer gear---------Mental gear with heating treatment



(2) Motor--------------------US motor



Actuator Parameters : Type





Model

Control

Power

Torque (N.m)

On/off Time (s)

WRA3-105D

On/off

24VDC

6

10-35

WRA3-205D

ON/off

12VDC

6

10-35

WRA3-305D

On/off

3VDC

6

10-35





Valve boby Parameters:Type


Model No.

Description

DN(mm)

Inch

Kvs(m3/h)

Pvmax

(MPa)

Ps

(KPa)

W8BV215

2-way

DN15

1/2”

8.0

1Mpa

1400

W8BV220

2-way

DN20

3/4”

12.5

1Mpa

1400

W8BV225

2-way

DN25

1”

22

1Mpa

1400

W8BV232

2-way

DN32

11/4”

16/25

0.6Mpa

1400

W8BV240

2-way

DN40

11/2”

25/40

0.6Mpa

1400

W8BV250

2-way

DN50

2”

40/63

0.6Mpa

1400

W8BV315

3-way

DN15

1/2”

5.5

1Mpa

1400

W8BV320

3-way

DN20

3/4”

10

1Mpa

1400

W8BV325

3-way

DN25

1”

16

1Mpa

1400

W8BV332

3-way

DN32

11/4”

16/25

0.6Mpa

1400

W8BV340

3-way

DN40

11/2”

25/40

0.6Mpa

1400

W8BV350

3-way

DN50

2”

40/63

0.6Mpa

1400

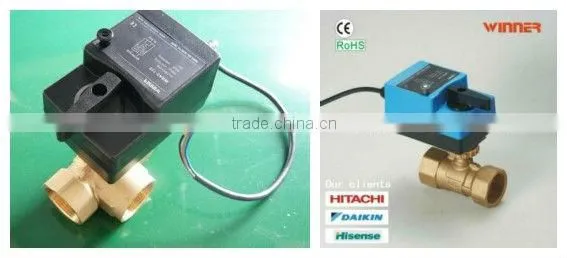

     3 way electric ball valve                                                        2 way electric ball valve



fast running operating motorized ball valve with big flow

  3 way ball valve body                                                              2 way ball valve body

 fast running operating motorized ball valve with big flow







The photos of production, equipment and warehouse

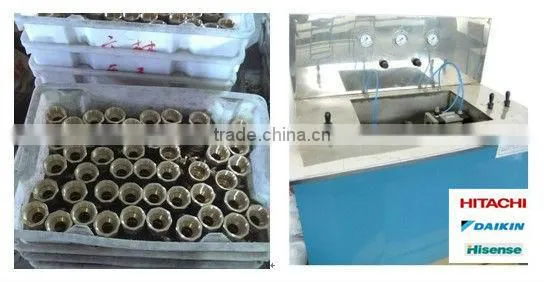

Semi-finished valve body                                                          The valve leak detection

fast running operating motorized ball valve with big flow

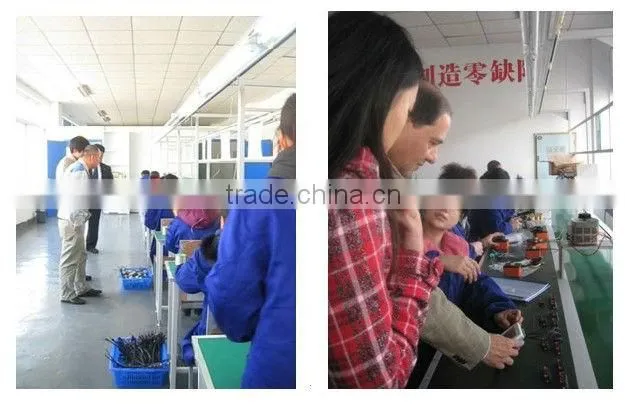

Production line                                                                    Test line

fast running operating motorized ball valve with big flow

Packing:

inner box for actuator and valve each, then packed into outer carton.

fast running operating motorized ball valve with big flow



Guarantee period



  Guarantee period:18 months



  Service time:50000 times
