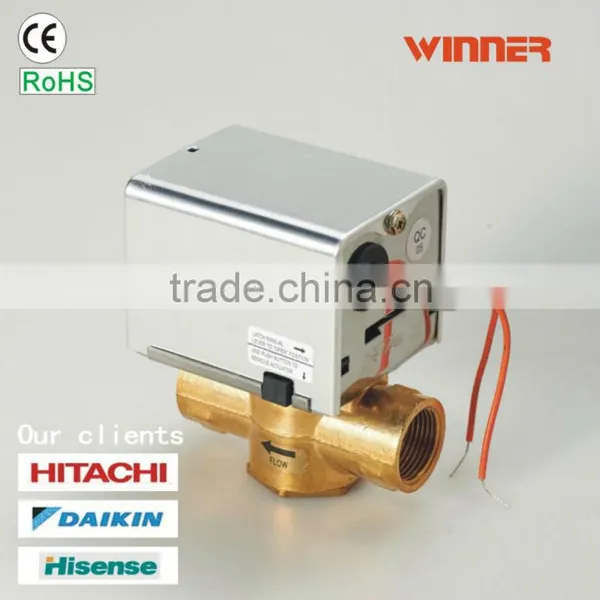

24Vac/110Vac/230Vac Spring Return Ball Valve
US$ 17 - 20
MOQ: 1 Set
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Structure:
Ball
Pressure:
Medium Pressure
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Spring Return Ball Valve,bsp Ball Valve,regulating Ball ValveUS$ 20 - 25MOQ: 5 Sets -
DN20 Spring Return Motor Ball Valve With Pressure RegulatorNegotiableMOQ: 1 Set
-
24Vac/110Vac/230Vac Spring Return Ball ValveUS$ 17 - 20MOQ: 1 Set
-
DC Spring Return Motor Ball Valve With Pressure RegulatorNegotiableMOQ: 1 Set
-
24VAC Spring Return Self-closing Brass Zone ValveNegotiableMOQ: 1 Set
Standard or Nonstandard
Standard
Structure
Ball
Pressure
Medium Pressure
Power
Solenoid
Material
Brass
Temperature of Media
Medium Temperature
Media
Other, cold/hot water, with 50% glycol
Port Size
1/2,3/4.1
Place of Origin
Hunan, China
Model Number
SW-B152H
Brand Name
Winner
Application
Other, Fan coil units, cooling/ heating system and HVAC system
Specifications
1.We are OEM,so the price is competitive.2.voltage:24/110/230VAC.
3.Accept small qty order
4.On/off time: 13-18s
Description
Winner spring-return zone valves are widely used in fan coil units, cooling/ heating system and HVAC system.
Application
Fan coil units, cooling/ heating system and HVAC system.
Valve body:
Medium: cold/hot water, with 50% glycolTemperature of medium: 0 to 93°C
Rated pressure: PN20Pipe connector: internal thread
Ambient temp. range: 0 to 40°C;Size: 1/2’’, 3/4’’ and 1’’Valve type: 2-way and 3-way.
Actuator:
Working voltage: 24/110/230VAC 50/60H z.
On/off time: 13-18sSpring return time: 4-5s Motor power: 6.5W, 7 VA
Product drawing:
Warehouse
Customer are visiting our factory:
Guarantee period:18 months
Service time:50000 times
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
2010
Factory Size
Below 1,000 square meters
Total Employees
51 - 100 People
