Popular High Qulity Best Selling Api Valve
Product Name |
Api Valve |
| Valve body: | Forged brass, Hpb59-1 |
| Seal: ball: | EPDM+PTFE, with double O-ring |
| Ball: | Nickle-plated brass |
| Actuator shell: | PC+10GF |
| Actuator revolving shaft: | POM |
OEM & ODM |
Acceptable |
| Thread Type | BSP NPT |
Model No. |
type |
Inch |
Kvs(m3/h) |
Pvmax(KPa) |
Ps(KPa) |
W8BV215 |
2 way |
1/2” |
8.6 |
1000 |
1400 |
W8BV220 |
2 way |
3/4” |
21 |
1000 |
1400 |
W8BV225 |
2 way |
1” |
26 |
1000 |
1400 |
W8BV315 |
3 way |
1/2” |
8.6 |
1000 |
1400 |
W8BV320 |
3 way |
3/4” |
21 |
1000 |
1400 |
W8BV325 |
3 way |
1” |
26 |
1000 |
1400 |
Model No. |
Working Voltage |
type |
torque |
Consumption |
On/off time |
Valve body |
WRA-6320 |
230VAC±15% 50/60Hz |
3-piont or on/off |
>4N.m |
7W |
50Hz:16S 60Hz:12S |
W8BV215 W8BV220 W8BV225 W8BV315 W8BV320 W8BV325 |
WRA-6320A |
On/off |
|||||
WRA-6310 |
110VAC±15% 50/60Hz |
3-piont or on/off |
||||
WRA-6310A |
On/off |
|||||
WRA-6302 |
24VAC±15% 50/60Hz |
3-piont or on/off |
||||
WRA-6302A |
On/off |

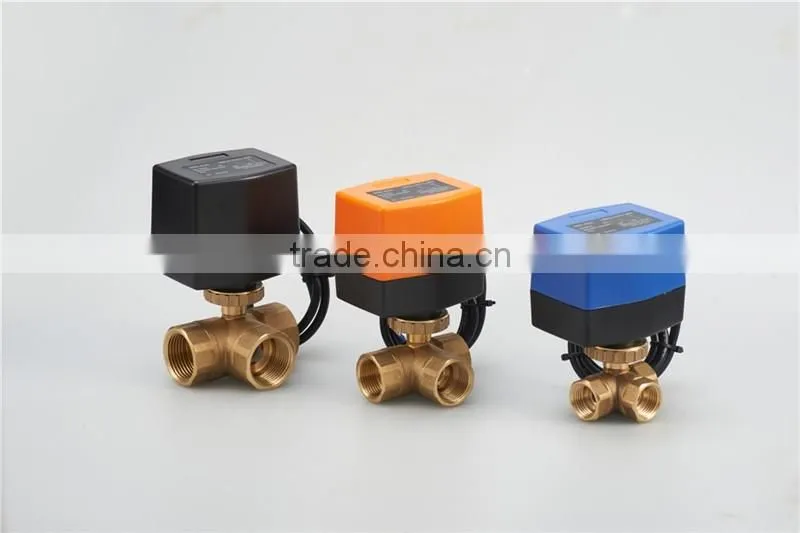

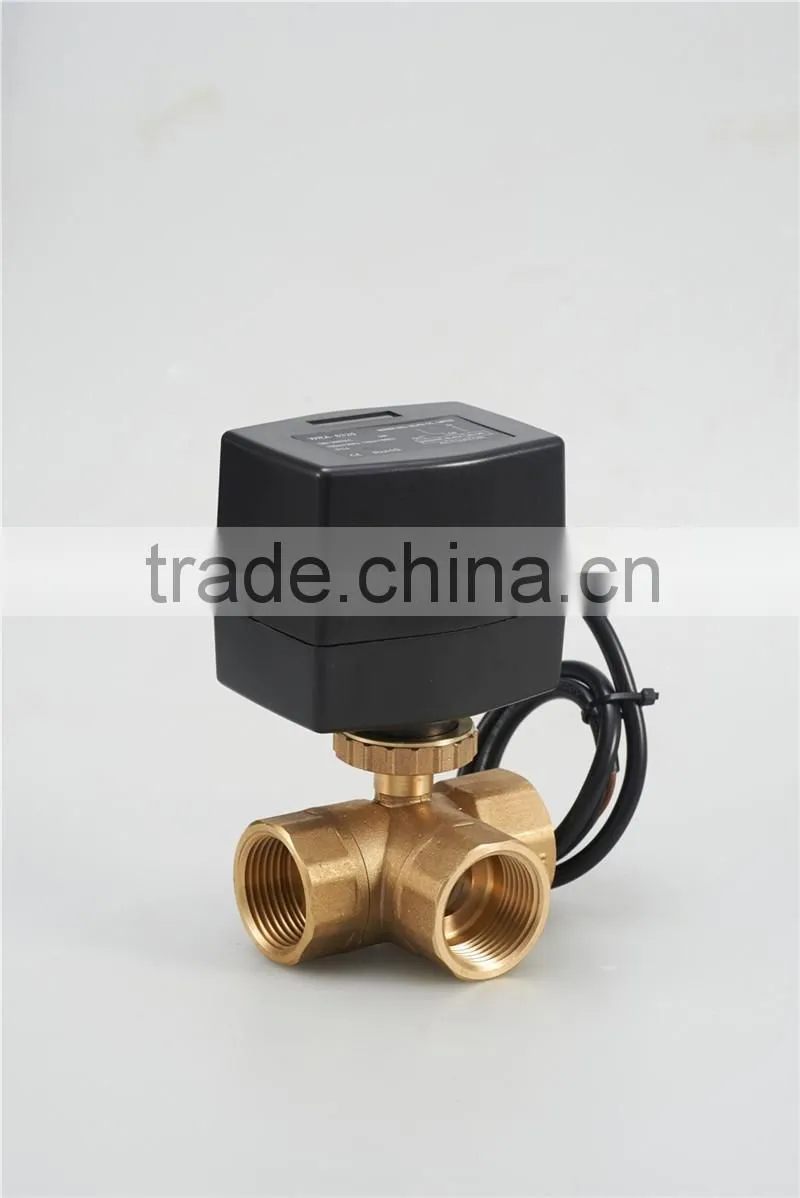

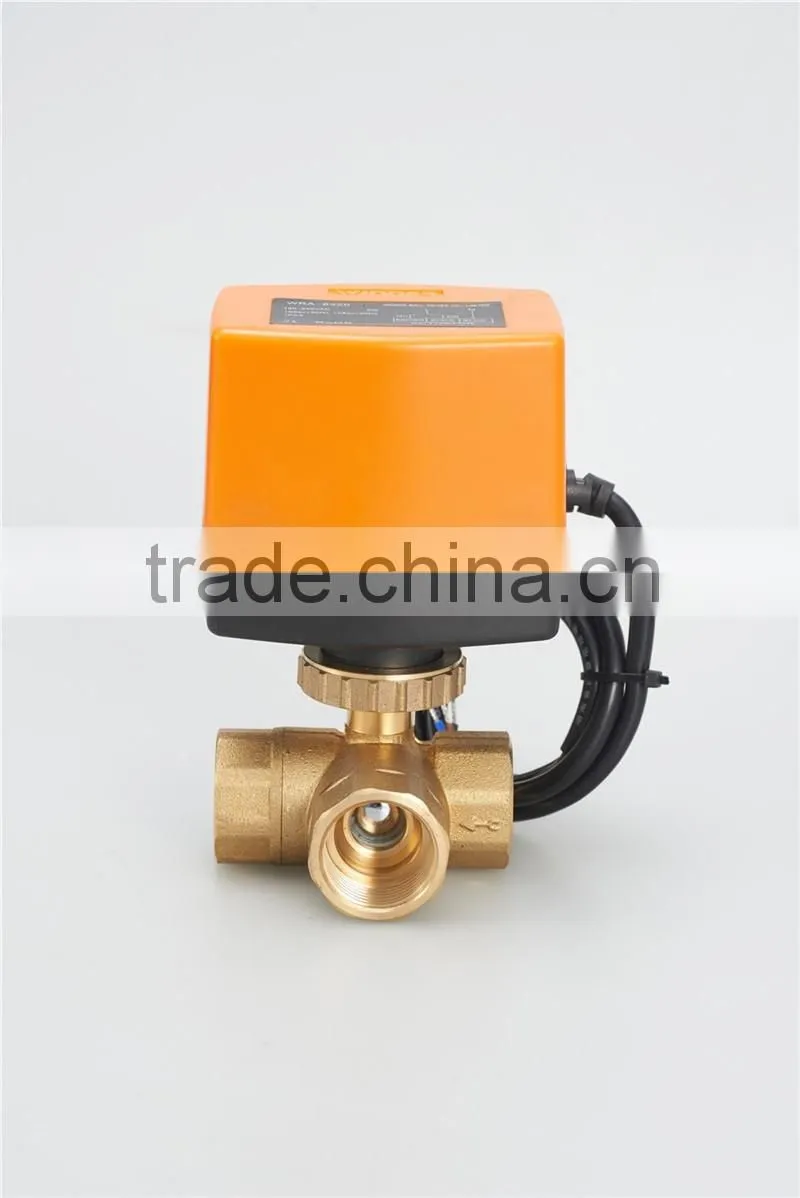

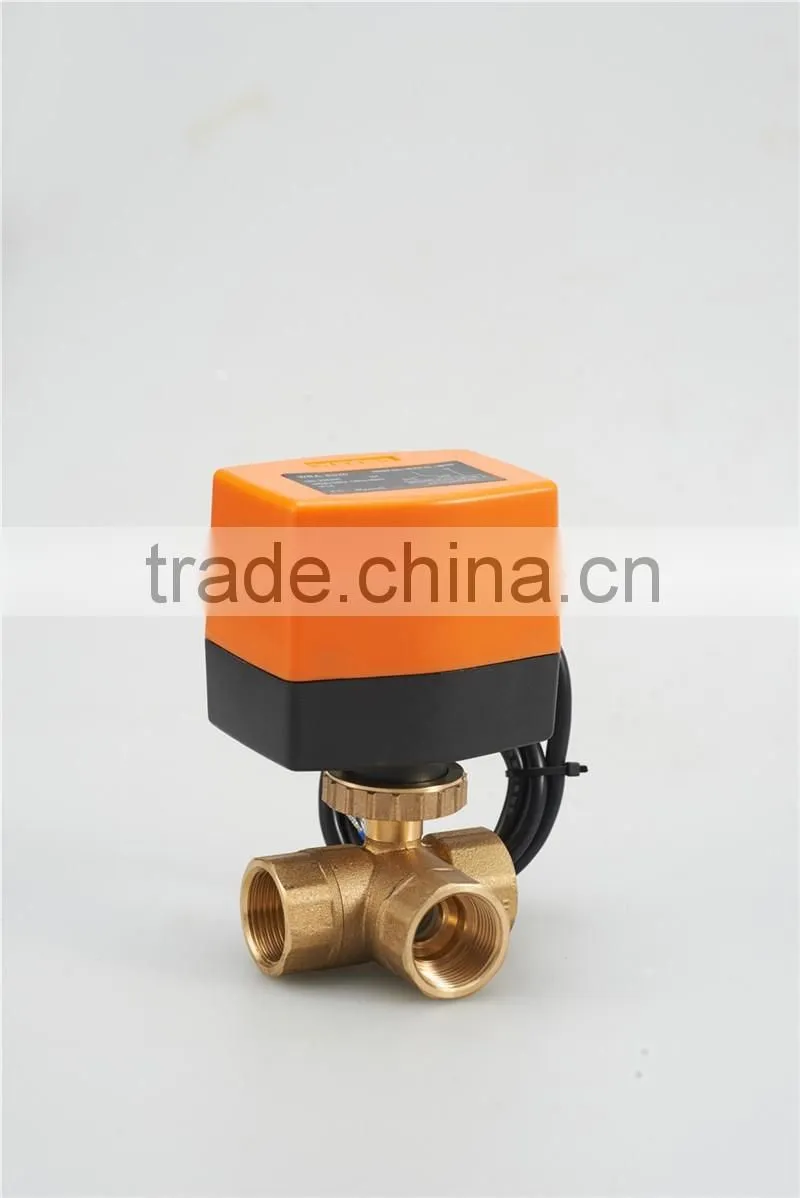

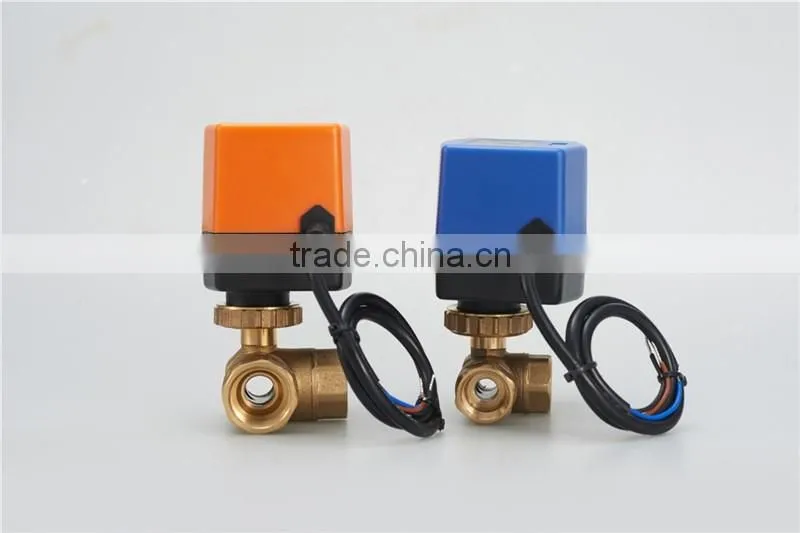

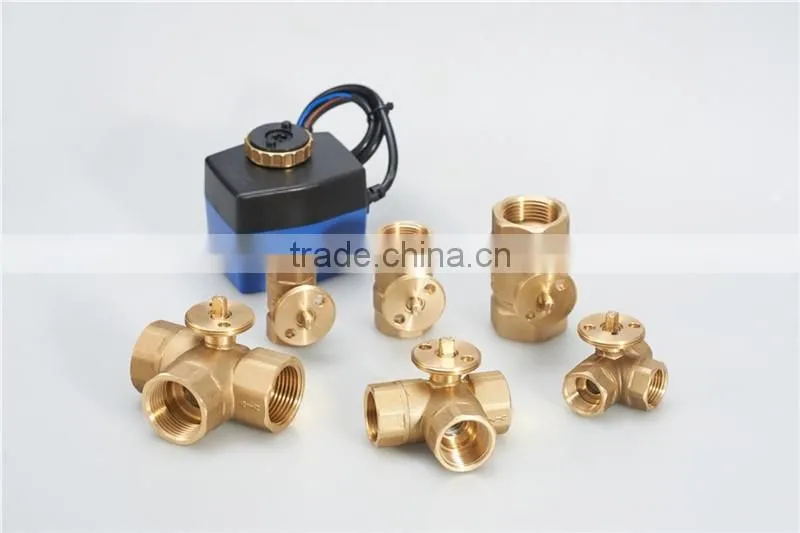

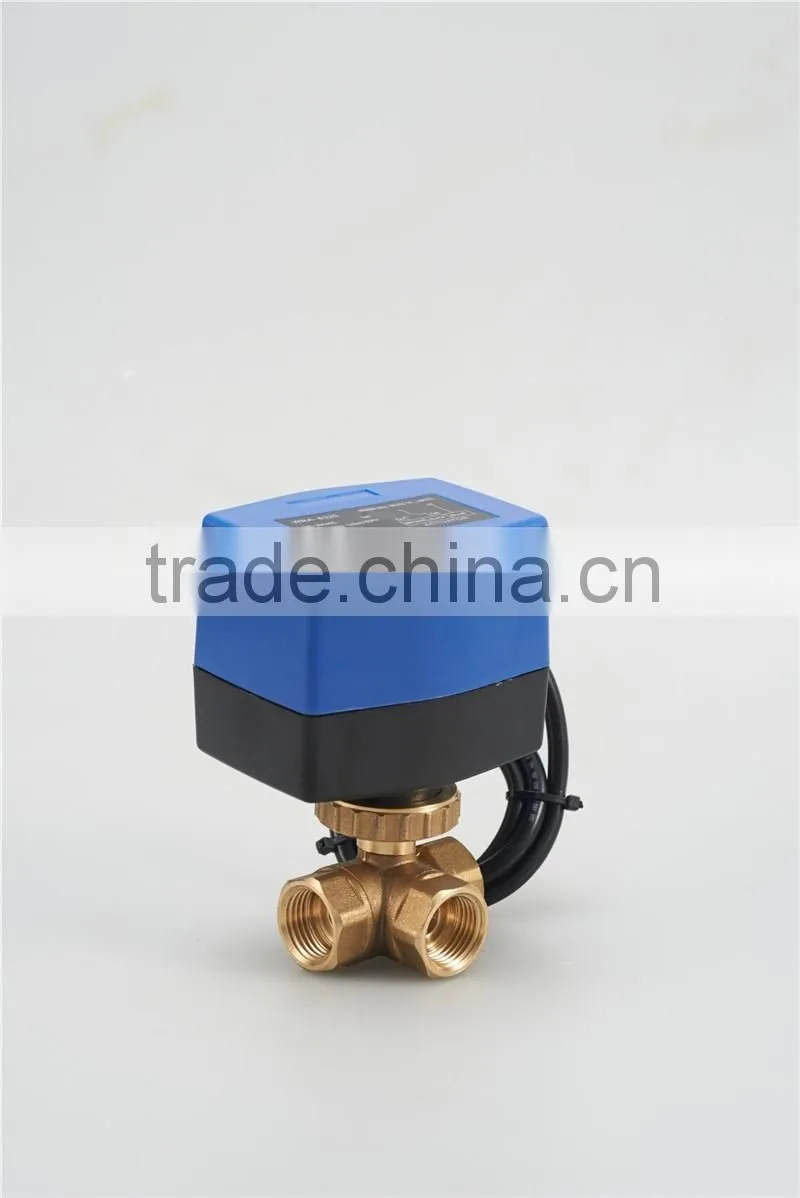

Pictures Of Product
More Products For You To Choose
Certificate of Products
Production line of Product
Exhibition and Customer
Our Services
Before service:
- 1.We have full stock and can deliver within short time.
- 2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
- 3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
- 4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
- 1. We will count cheapest shipping cost and make invoice to you at once.
- 2. Check quality again, then send out to you at 1-2 working day after your payment
- 3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service:
- 1.We are very glad that customers give us some suggestion for price and products.
- 2.If you have any question,please contact us freely by E-mail or Telephone.
Our Company View
FAQ
Q. what is your payment term?
- A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: How do you control the products’ quality?
- A: 1. High quality mold.
- 2. Raw materials control.
- 3. Production process quality control.
- 4. Final inspection.
- 5. Water testing (no leaking).
Q:Could I use my own logo or design on goods?
- A:Yes.Customized logo and design on production are available.
Q: Can I get samples from your factory?
- A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
- A: We will responsible for all the quality problems.
