HVAC Central Air Conditioning Motorized Automatic Control Valve
Product Name |
HVAC Central Air Conditioning Motorized Automatic Control Valve |
| Actuator motor | DC motor |
| Power supply | 24V |
| Output torque | 4N.m |
| Running time | 16S |
| Pressure grade | PN20 |
Shell color |
Orange,Yellow,Blue,Black |
OEM & ODM |
Accept |
| Medium temperature | 2~90° -10~120° |
| Thread Type | BSP NPT |
Description
Winner motorized ball valve consists of on/off type or 3-point type actuator and W8BV… series ball valve, which have compact structure, stable operation, excellent capacity of water stoppage, large water flow rate, zero dirt block and low torque. Winner motorized ball valves are widely used in HVAC system, heating system, water treatment system and some industrial equipments.
Application
HVAC system,
heating system,
Water treatment system,
Industrial equipments
Operational mode
Winner motorized ball valve is motor-operated by a type of WRA-42…, and WRA-42…A actuator. The actuator is controlled by a modulating on/off or 3-piont control system and move the ball of the valve, to the opening position dictated by the control signal.
Automatic Control Valve Material
| Part | Material |
| Valve Body | Hpb59-1 |
| Seal | Ball: PTFE+EPDM with double O-ring |
| Stem: PTFE+EPDM with double O-ring | |
| Actuator Shell | PC+GF10 |
| Actuator Base | PC+GF10 |
| Actuator Revolving Shaft | POM |

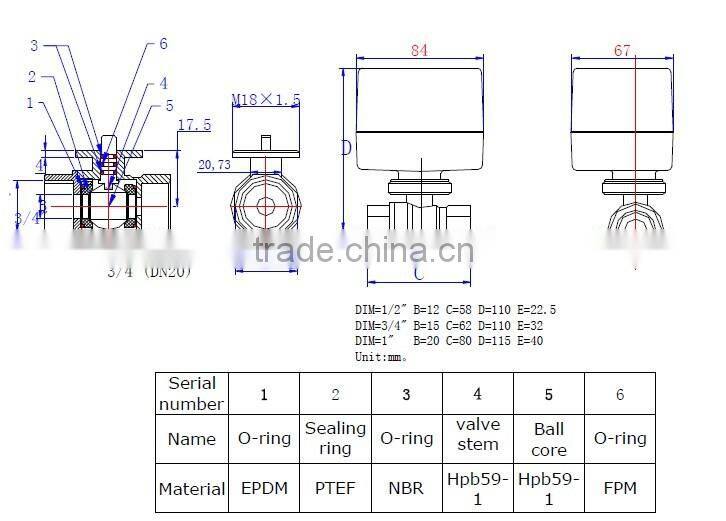

Automatic Control Valve Body
| Valve Body Model | Type | DN(mm) | DN(inches) | Kvs(m3/h) | Medium | Temperature | Admissible pressure | Closing Temperature |
| W8BV215 | 2way | DN15 | 1/2" | 8.2 | ||||
| W8BV220 | DN20 | 3/4" | 21 | Cool/hot water | ||||
| W8BV225 | DN25 | 1" | 26 | 50% glycol solutions | 2~90 C | 2.0MPa | 1400KPa | |
| W8BV315 | 3 way | DN15 | 1/2" | 8.2 | ||||
| W8BV320 | DN20 | 3/4" | 21 | |||||
| W8BV325 | DN25 | 1" | 26 |

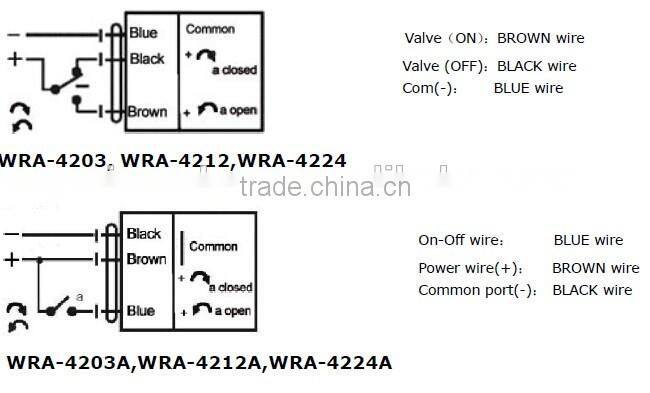

Temperature Control Valve Actuator
| Model No. |
Working Voltage (V) |
Actuator Type | Output Torque | Consumption | On/off Time | Valve Body |
| WRA4203 | DC3V | 3-point or On/off | 2 N.m | 3w | 2~6s |
W8BV215 |
| WRA4203A | DC3V | ON/OFF | ||||
| WRA4212 | DC12V | 3-point or On/off | ||||
| WRA4212A | DC12V | ON/OFF | ||||
| WRA4224 | DC24V | 3-point or On/off | ||||
| WRA4224A | DC24V | ON/OFF |
Pictures Of Product
More Products For You To Choose
Certificate of Products
Production line of Product
Exhibition and Customer
Our Services
Before service:
- 1.We have full stock and can deliver within short time.
- 2.OEM and ODM order are accepted, Any kind of logo printing or design are available.
- 3.Good Quality + Factory Price + Quick Response + Reliable Service, is what we are trying best to offer you.
- 4.All of our products are produced by our professional workman and we have our high-work-effect foreign trade team, you can totally believe our service.
After you choose:
- 1. We will count cheapest shipping cost and make invoice to you at once.
- 2. Check quality again, then send out to you at 1-2 working day after your payment
- 3. Email you the tracking no., and help to chase the parcels until it arrive you.
After-sale service:
- 1.We are very glad that customers give us some suggestion for price and products.
- 2.If you have any question,please contact us freely by E-mail or Telephone.
Our Company View
FAQ
Q. what is your payment term?
- A: T/T 30% down payment, balance to be paid before shipment. or L/C.
Q: How do you control the products’ quality?
- A: 1. High quality mold.
- 2. Raw materials control.
- 3. Production process quality control.
- 4. Final inspection.
- 5. Water testing (no leaking).
Q:Could I use my own logo or design on goods?
- A:Yes.Customized logo and design on production are available.
Q: Can I get samples from your factory?
- A: Yes, Samples can be provided.
Q: If products have some quality problem, how would you deal with?
- A: We will responsible for all the quality problems.
